A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Tue Jul 05, 2016 05:52 PM

Hello,

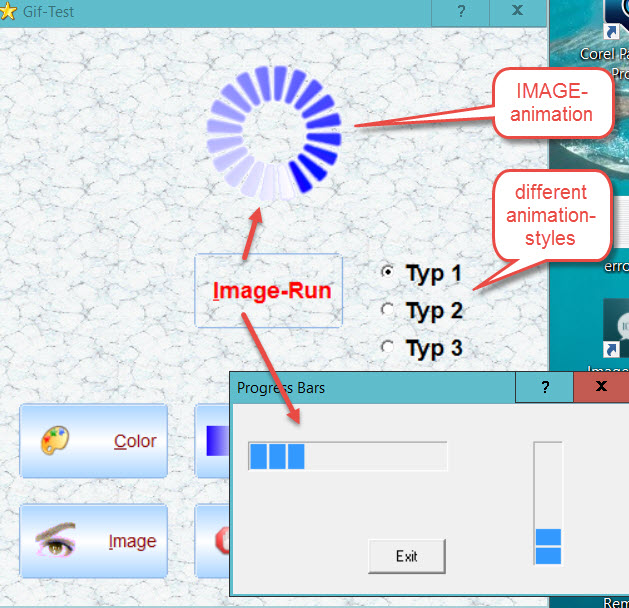

Different to the button-solutions, another sample shows, how to create a IMAGE-ANIMATION
using different frames selected from a DLL ( a progressbar is embedded and is running the same time )
Frames / images are extracted from selected animated gifs and stored inside a DLL.
The animation stops on button-action or at the end of the running progressbar.
The included DLL includes 3 different animation-styles ( size 128 x 128 )

http://www.service-fivewin.de/DOWNLOADS/Animat1.zip

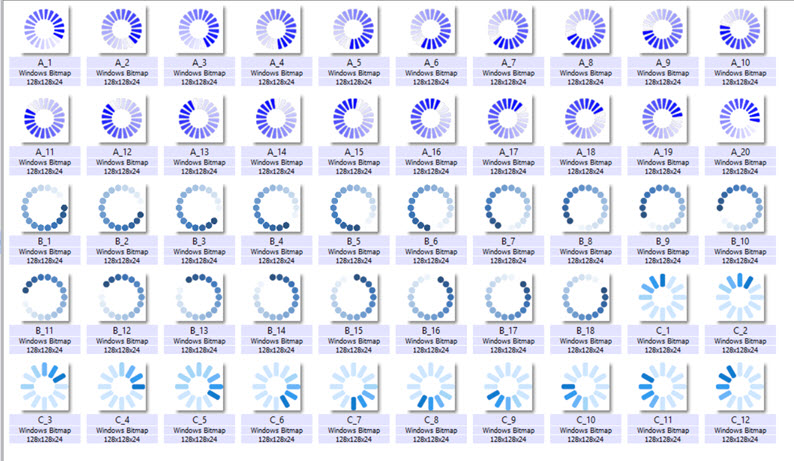

3 different styles are included inside the DLL

best regards
Uwe

Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.

Silvio.Falconi

Posts: 7317

Joined: Thu Oct 18, 2012 07:17 PM

Re: A sample how to create a IMAGE-animation
Posted: Wed Jul 06, 2016 07:28 AM

Many year ago Paco made a animation class

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com

ukoenig

Posts: 4043

Joined: Wed Dec 19, 2007 06:40 PM

Re: A sample how to create a IMAGE-animation
Posted: Wed Jul 06, 2016 10:06 AM

Silvio,

I don't want to create something new.
I have been looking for a solution, to replace the usage of a ANIMATED.gif
because I noticed some problems like transparent-display.
Instead I'm using a DLL with the included / extracted Gif-frames.

I searched for -> Paco, but couldn't find any post.

regards
Uwe

Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.

MGA

Posts: 1286

Joined: Mon Feb 25, 2008 02:54 PM

Re: A sample how to create a IMAGE-animation
Posted: Wed Jul 06, 2016 10:45 AM

simply fantastic

thanks

Uwe

ubiratanmga@gmail.com

FWH24.04
BCC7.3
HARBOUR3.2
xMate
Pelles´C
TDolphin

ukoenig

Posts: 4043

Joined: Wed Dec 19, 2007 06:40 PM

Re: A sample how to create a IMAGE-animation ( indexbuilder )
Posted: Wed Jul 06, 2016 01:31 PM

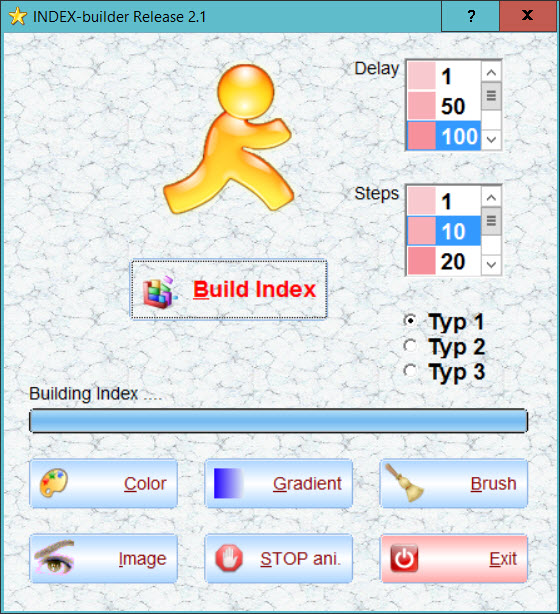

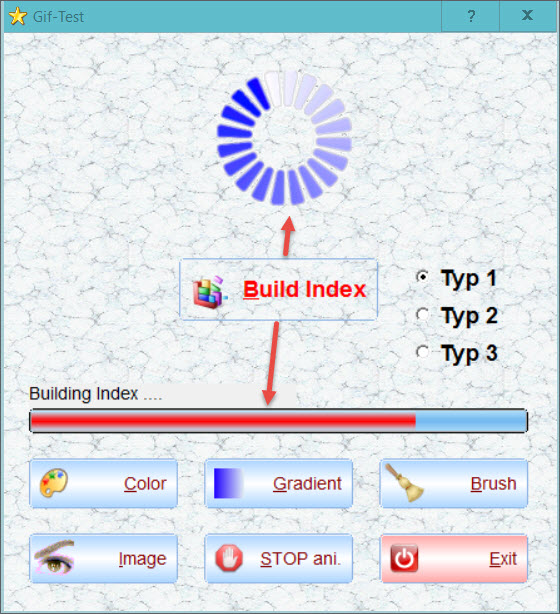

a practical usage creating a indexbuilder :
showing a running IMAGE ( frames are defined inside a DLL )
and using METEREX

DOWNLOAD :

http://www.service-fivewin.de/DOWNLOADS/Animat2.zip

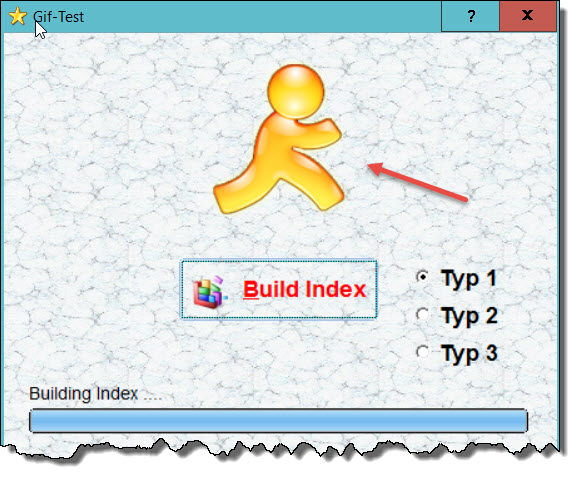

extra START- and END-image

please check / add if the index-break is defined
( needed for button < STOP ani > )

during building the index, it is possible to change the animation-style

You can remove the value or adjust the speed :
Sleep( 300 ), ; // added to slow down !!!

ORDCONDSET( ; // <cForCondition>
; // <bForCondition>
, .T. ;// <lAll>
, { || lRun = .T. } ; // <bWhileCondition> break if lRun = .F. on button-action
...
...

regards
Uwe

Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.

ukoenig

Posts: 4043

Joined: Wed Dec 19, 2007 06:40 PM

Re: A sample how to create a IMAGE-animation ( indexbuilder )
Posted: Thu Jul 07, 2016 09:58 AM

Updated

check the relationship ( animation-speed ) with combinations of delay and steps

DOWNLOAD :
http://www.service-fivewin.de/DOWNLOADS/Animat3.zip

regards
Uwe

Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.

Silvio.Falconi

Posts: 7317

Joined: Thu Oct 18, 2012 07:17 PM

Re: A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Thu Jul 07, 2016 11:07 AM

on this forum I found this :
http://forums.fivetechsupport.com/viewtopic.php?f=17&t=12423&hilit=animation+bmp#p62341

Code (fw): Select all Collapse

Function Animate(cResource)

local oDlg,lOk

DEFINE DIALOG oDlg FROM 10, 20 TO 18, 65 TITLE "Testing Animation"

@ 3.5, 2 BUTTON "&Ok" OF oDlg SIZE 35, 12 ACTION ( oDlg:End, lOk := .t. ) DEFAULT

ACTIVATE DIALOG oDlg CENTERED ON INIT Startup(oDlg,cResource)

return nil


Function Startup(oDlg,cResource)

local oTmr,oBmp,nFrames,nFrameWidth

@ 2, 20 BITMAP oBmp RESOURCE cResource SIZE 0,0 PIXEL OF oDlg NOBORDER

oBmp:SetColor(GetSysColor( COLOR_BTNFACE ),GetSysColor( COLOR_BTNFACE ))

nFrames := val(right(cResource,2))

nFrameWidth := oBmp:nWidth()/nFrames

oBmp:lTransparent = .t.

MoveWindow(oBmp:hWnd,2,20,nFrameWidth,oBmp:nHeight())

DEFINE TIMER oTmr OF oDlg ;

INTERVAL 70 ACTION ( If( oBmp:nY < -oBmp:nWidth() + nFrameWidth*2,oBmp:nY := 0,;

oBmp:nY -= nFrameWidth ), oBmp:Refresh( .f. ) )

ACTIVATE TIMER oTmr

return nil

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com

Silvio.Falconi

Posts: 7317

Joined: Thu Oct 18, 2012 07:17 PM

Re: A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Thu Jul 07, 2016 11:24 AM

Uwe,

with Paco Banner class I have the same result ....

I make a test with your 16 bmps
the code

Code (fw): Select all Collapse

#include "fivewin.ch"
#include "banner.ch"

function main()

Local oDlg, oBanner
Local aPasos :=  { { PONER, 0  },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    },;
                   { PONER, 0    } }


DEFINE DIALOG oDlg NAME "DIALOG_1"  COLOR CLR_BLACK, CLR_WHITE


   REDEFINE BANNER oBanner ID 101 OF oDlg ;
            BITMAPS "BMPS\A_1.bmp" ,;
                    "BMPS\A_2.bmp" ,;
                    "BMPS\A_3.bmp" ,;
                    "BMPS\A_4.bmp" ,;
                    "BMPS\A_5.bmp" ,;
                    "BMPS\A_6.bmp" ,;
                    "BMPS\A_7.bmp" ,;
                    "BMPS\A_8.bmp" ,;
                    "BMPS\A_9.bmp" ,;
                    "BMPS\A_10.bmp" ,;
                    "BMPS\A_11.bmp" ,;
                    "BMPS\A_12.bmp" ,;
                    "BMPS\A_13.bmp" ,;
                    "BMPS\A_14.bmp" ,;
                    "BMPS\A_15.bmp" ,;
                    "BMPS\A_16.bmp"  ;
            SPEED 0.05                       ;
            EFECTS aPasos                 ;
            FRAMES 1



ACTIVATE DIALOG oDlg CENTERED


return nil

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com

ukoenig

Posts: 4043

Joined: Wed Dec 19, 2007 06:40 PM

Re: A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Thu Jul 07, 2016 09:03 PM

Silvio,

my solution offers more effects.
During indexing, I can change the animation-style / color ( using any frames ).
Sample :

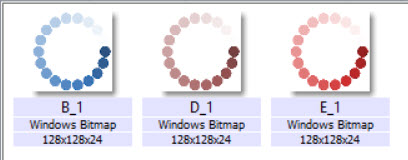

from 0 - 25 % indexing I can use frameset < B >
from 26 - 50 % I can change to frameset < D > and so on ( starting with blue and ending with red )
The frames are not fixed defined at startup.
You can test it by yourself selecting another style during indexing.

I will show / create a extended sample

regards
Uwe

Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.

Silvio.Falconi

Posts: 7317

Joined: Thu Oct 18, 2012 07:17 PM

Re: A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Fri Jul 08, 2016 06:51 AM

on banner class you have many animations styles
SPEED
FRAMES
EFFECTS ( Miror,Poner, Mengua,Crece,Cortina,Turn) to UP, Down,Left ,Right , top, Vertical, Horizzontal
ACTIONS

Perhaps it is possible add new effects ...
the problems of the class is no pubblic and I cannot send you it

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com

ukoenig

Posts: 4043

Joined: Wed Dec 19, 2007 06:40 PM

Re: A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Fri Jul 08, 2016 03:30 PM

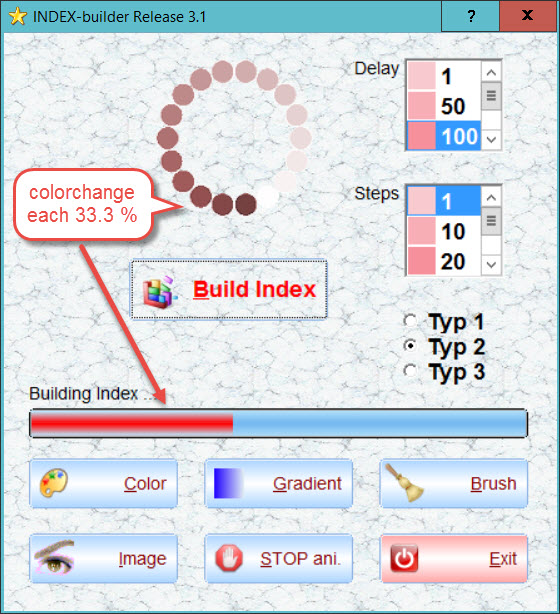

Colorchange ( type 2 ) during indexing from red to blue :

before creating something new like classes .....
I try using existing functions / or parts of other solutions / samples to solve a problem
scooping all possibilities the basic-FWH offers

DOWNLOAD :
http://www.service-fivewin.de/DOWNLOADS/Animat4.zip

Silvio,
from Your sample :
The images are fixed defined,
how do You can change to other images ( split image-group on defined percent )

REDEFINE BANNER oBanner ID 101 OF oDlg ;
BITMAPS "BMPS\A_1.bmp" ,;
"BMPS\A_2.bmp" ,;
"BMPS\A_3.bmp" ,;
"BMPS\A_4.bmp" ,;
"BMPS\A_5.bmp" ,;
"BMPS\A_6.bmp" ,;
"BMPS\A_7.bmp" ,;
"BMPS\A_8.bmp" ,;
"BMPS\A_9.bmp" ,;
"BMPS\A_10.bmp" ,;
"BMPS\A_11.bmp" ,;
"BMPS\A_12.bmp" ,;
"BMPS\A_13.bmp" ,;
"BMPS\A_14.bmp" ,;
"BMPS\A_15.bmp" ,;
"BMPS\A_16.bmp" ;
SPEED 0.05 ;
EFECTS aPasos ;
FRAMES 1

regards
Uwe

Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.

Massimo Linossi

Posts: 512

Joined: Mon Oct 17, 2005 10:38 AM

Re: A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Fri Jul 08, 2016 04:02 PM

Great work Uwe, many compliments.

Silvio.Falconi

Posts: 7317

Joined: Thu Oct 18, 2012 07:17 PM

Re: A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Fri Jul 08, 2016 04:24 PM

It was just to tell you that there were already classes that make animation FWH.

My advice FWH needs new classes or interesting objects and not always heat the hot water ....

But if she dear sir fun in this way, you can continue on this path ... I will enjoy it to find new ideas ....for fwh

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com

Massimo Linossi

Posts: 512

Joined: Mon Oct 17, 2005 10:38 AM

Re: A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Fri Jul 08, 2016 05:02 PM

ukoenig wrote:
before creating something new like classes .....
I try using existing functions / or parts of other solutions / samples to solve a problem
scooping all possibilities the basic-FWH offers

Silvio.Falconi

Posts: 7317

Joined: Thu Oct 18, 2012 07:17 PM

Re: A sample how to create a IMAGE-ani. ( indexbuilder ) UPD.
Posted: Sat Jul 09, 2016 07:42 AM

I not talk with cartoons!!!
I not seen any new classes created by this cartoons!!!

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com
