topic-35033

Horizon

Posts: 1387

Joined: Fri May 23, 2008 01:33 PM

xBrowse with WaterMark
Posted: Thu Dec 21, 2017 07:20 PM

Hi,

Is it possible to put a picture background of xbrowse like watermark?

Thanks,

Regards,

Hakan ONEMLI

Harbour & MSVC 2022 & FWH 23.06

ukoenig

Posts: 4043

Joined: Wed Dec 19, 2007 06:40 PM

Re: xBrowse with WaterMark
Posted: Thu Dec 21, 2017 08:44 PM

Horizon,

Use the same background-color for the image like for the browser
With the image-size ( free space around the watermark )
You can adjust the space between the watermarks inside the browser.

DEFINE BRUSH oBrush FILENAME "Logo.bmp"
oBrw:SetBackGround( oBrush )
oBrush:End()
oBrw:Refresh()

regards
Uwe

Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.

Horizon

Posts: 1387

Joined: Fri May 23, 2008 01:33 PM

Re: xBrowse with WaterMark
Posted: Fri Dec 22, 2017 06:49 PM

Thank you very much Uwe.

It works.

But I have a problems with brush.

Code (fw): Select all Collapse

    ::oBrw:nMarqueeStyle := 6  // For MultiSelect
    ::oBrw:lRecordSelector := .f.
    ::oBrw:lHScroll        := .F.

    ::oBrw:bClrSelFocus = { || { 16777215, 15512898 } }
    ::oBrw:bClrSel = { || { 16777215, 15512898 } }
    ::oBrw:lKinetic := .F.

1. The up/down navigation is slower than before brush in xbrowse. Is it normal?

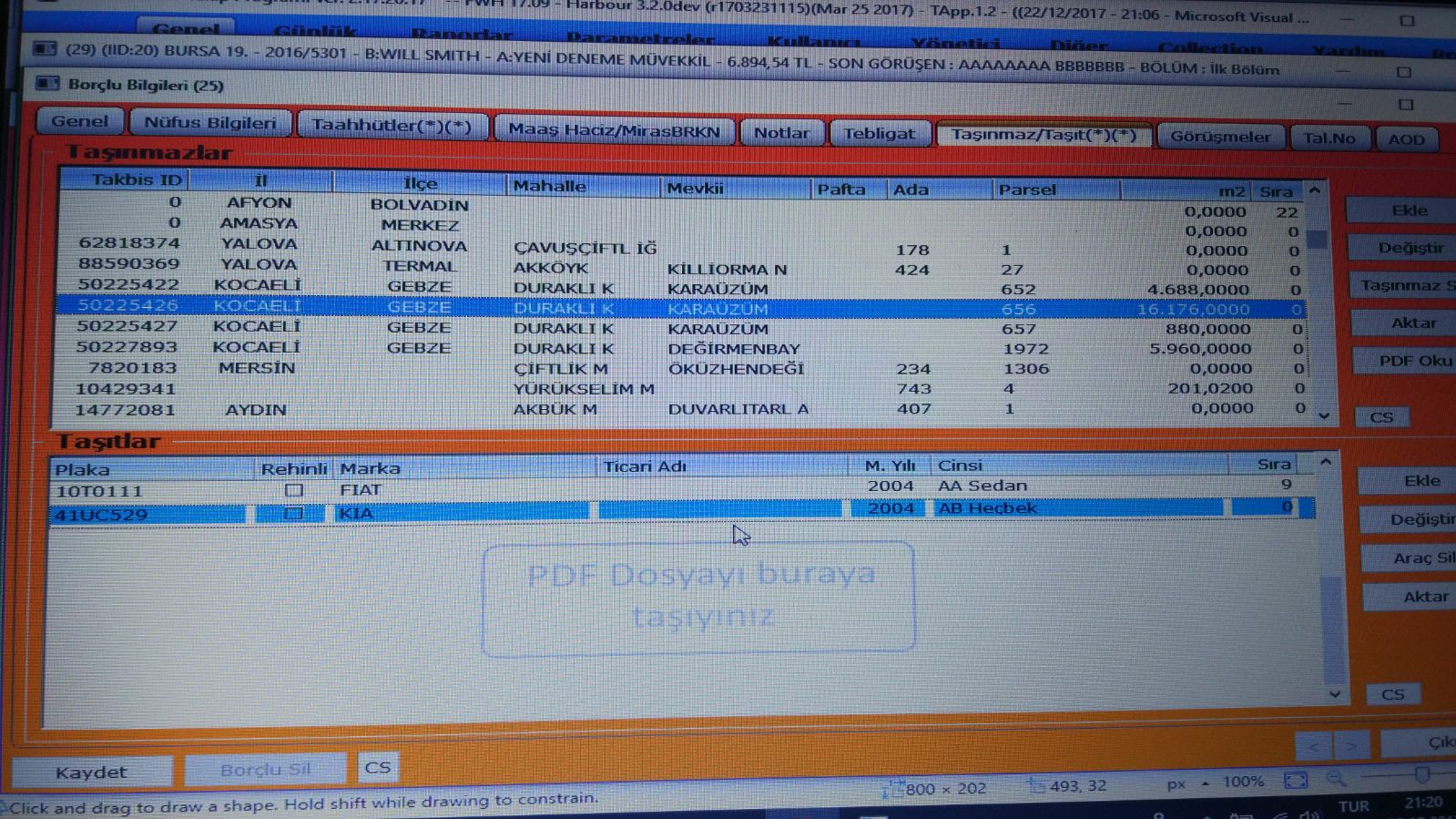

2. The shape of selection bar is different like below. (Upper brw is without brush, Lower is with.)

http://www.objekt.com.tr/fwh_test/wmark1.jpeg

Regards,

Hakan ONEMLI

Harbour & MSVC 2022 & FWH 23.06

nageswaragunupudi

Posts: 10733

Joined: Sun Nov 19, 2006 05:22 AM

Re: xBrowse with WaterMark
Posted: Sat Dec 23, 2017 01:08 AM

1. The up/down navigation is slower than before brush in xbrowse. Is it normal?

Yes. Not only up/down but left/right navigation also.
Using brushes is suitable for small browses with fast datasources like arrays, recordsets, etc and small local dbfs
Programmer needs to decide the suitability when to use brushes.

2. The shape of selection bar is different like below. (Upper brw is without brush, Lower is with.)

We will look into this.
Looks normal when only a cell is highligted.

Regards

G. N. Rao.

Hyderabad, India

nageswaragunupudi

Posts: 10733

Joined: Sun Nov 19, 2006 05:22 AM

Re: xBrowse with WaterMark
Posted: Sun Dec 24, 2017 03:17 AM

2. The shape of selection bar is different like below. (Upper brw is without brush, Lower is with.)

This is fixed in FWH 17.12.
Thanks for pointing out the issue.

Regards

G. N. Rao.

Hyderabad, India

Horizon

Posts: 1387

Joined: Fri May 23, 2008 01:33 PM

Re: xBrowse with WaterMark
Posted: Sun Dec 24, 2017 10:00 AM

nageswaragunupudi wrote:

2. The shape of selection bar is different like below. (Upper brw is without brush, Lower is with.)

This is fixed in FWH 17.12.
Thanks for pointing out the issue.

Thanks again.

Regards,

Hakan ONEMLI

Harbour & MSVC 2022 & FWH 23.06

Horizon

Posts: 1387

Joined: Fri May 23, 2008 01:33 PM

Re: xBrowse with WaterMark
Posted: Mon Dec 25, 2017 06:03 AM

Hi Mr. Rao,

Can you share the solution here if it is simple?

Thanks.

Regards,

Hakan ONEMLI

Harbour & MSVC 2022 & FWH 23.06

nageswaragunupudi

Posts: 10733

Joined: Sun Nov 19, 2006 05:22 AM

Re: xBrowse with WaterMark
Posted: Mon Dec 25, 2017 06:07 AM

xbrowse.prg ( 17.11 ) line 12428 in method PaintCellBack(....)

replace line 12428

Code (fw): Select all Collapse

         if ::oBrw:lTransparent

with

Code (fw): Select all Collapse

         if ::oBrw:lTransparent .and. ::oBrw:nMarqueeStyle < MARQSTYLE_HIGHLROWRC

Regards

G. N. Rao.

Hyderabad, India
