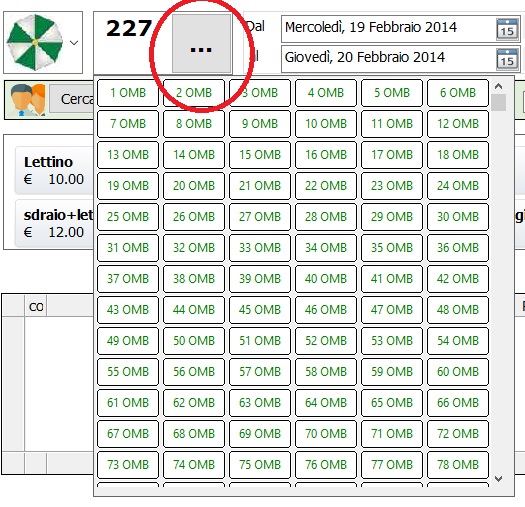

On a dialog I must select the number and I made a normal get with a action









It open a dialog with scrollPanel and on it I list many small btnbmp
I have the number with the font

DEFINE FONT oLarge NAME "VERDANA" SIZE 0,-22 BOLD

to show big and clear

the problem is I have also a big button "..." while I prefer have a button as the combobox

How I can resolve ? because it is no good quality

Silvio,

Reduce the height of the control

Antonio, I need a big font and the control must be the same height of the date block (gets)
and I must use it on a touch tablet if I make the control small then the user cannot use it

I need something of this

Now I' resolved with a buttobmp easy but I don't like it



it is certainly not beautiful and professional to behold
but I have not found other solutions

I remember there was many year ago a button (dbutton) with the possibility to open a dialog popup but I not found this class on fivewin controls

Silvio,

maybe better one of these images



or





regards
Uwe

Uwe,
thanks , but I not Know how adapt it ( size of the get)

I create down4.png



DEFINE FONT oLarge NAME "VERDANA" SIZE 0,-22 BOLD

@ 06,50 GET aGet[2] VAR nNumberElemento SIZE 50,32 PIXEL of oFld:aDialogs[1] FONT oLarge
@ 6.01,100 BUTTONBMP oBtnSel ;
SIZE 10,31.5 PIXEL OF oFld:aDialogs[1];
RESOURCE ".\bitmaps\down4.png"

Silvio,

calculated button-position from get :

@ 380, 570 GET oGet VAR cGet SIZE 130, 50 PIXEL OF oDlg

// button adjusted to get size and position
// the button-height should be close to the get-hight
// otherwise the arrow will be stretched to much

@ oGet:nTop +1, oGet:nRight BTNBMP oBtn OF oDlg ;
SIZE 20, oGet:nHeight PIXEL ; // B / H width = fixed value
FILENAME c_path1 + "Down4.png" ;
ACTION MsgAlert( "Test" ) ;
CENTERED NOBORDER ADJUST



Your selected image ( with resized height )



regards
Uwe

I remember there was a control called Dbutton
it had a button as combobox
if I call the scrolpanel with dbutton and then change the caption with the number selected can be a solution
only I not found dbutton class or another button have the possibility to insert a button at left and call to a function
as this

Silvio,

In one of Your tests You have been trying to draw a button-border
a solution still needed
It is possible to draw a border with any size, colour, round and transparent-level.



regards
Uwe

Inside Your function You defined

Function SetGradientBtnbmp(ntype,ocontrol,nColorBorder)
DEFAULT nColorBorder := nRGB(116,165,216 )
Do case
Case ntype = 2007
...
...
//2007
ocontrol:bClrGrad = { | lInvert | If( ! lInvert,;
...
ocontrol:nClrBorder := { || (IIF(ocontrol:lMOver,nColorBorder,nRgb(225, 225, 225))) }

regards
Uwe
