creation bitmaps

Posted: Mon Oct 28, 2019 01:01 PM

is it possible to create small bitmaps size 16 files?
Having two colors (color1 and color2) and making the gradient of these two colors, create a small bitmap and save in bitmap format?

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com
ukoenig
Posts: 4043
Joined: Wed Dec 19, 2007 06:40 PM

Re: creation bitmaps

Posted: Mon Oct 28, 2019 08:49 PM
A gradientpainter that can save / create bitmaps from 64x64 to 16x16
gradientstyle horizontal or vertical with selected color-position

two colors (color1 and color2) and making the gradient of these two colors




is that the style You need :-)
Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.
Silvio.Falconi
Posts: 7318
Joined: Thu Oct 18, 2012 07:17 PM

Re: creation bitmaps

Posted: Mon Oct 28, 2019 09:37 PM

no
i have two colors ok ?
i not have the image or bitmap ok?
i wish create a image or bitmap
and save it as a file ok ?
this file must show a small box filled with the gradient made with two colors...

i hope you understood me

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com
nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM

Re: creation bitmaps

Posted: Tue Oct 29, 2019 05:23 AM
Code (fw): Select all Collapse
   local hBmp
   local nClr1    := CLR_HRED
   local nclr2    := CLR_WHITE
   local nWidth   := 16
   local nHeight  := 16

   hBmp  := FW_MakeYourBitmap( nWidth, nHeight, { |hDC,w,h| GradientFill( hDC, 0, 0, h, w, {{ 1, nClr1, nClr2}} ) } )
   FW_SaveImage( hBmp, "redwhite.bmp" )
   DeleteObject( hBmp )

   ximage( "redwhite.bmp" )  // verify
Regards



G. N. Rao.

Hyderabad, India
Silvio.Falconi
Posts: 7318
Joined: Thu Oct 18, 2012 07:17 PM

Re: creation bitmaps

Posted: Tue Oct 29, 2019 08:08 AM

thanks Rao
I remember there was something of it but Inot found the test on my hard diskes.
thanks

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com
ukoenig
Posts: 4043
Joined: Wed Dec 19, 2007 06:40 PM

Re: creation bitmaps

Posted: Tue Oct 29, 2019 02:33 PM
Silvio,

the painter uses the same functions but with a big difference

1. visual design of the images
2. multiple images can be saved in one sesson ( file-counter ) like Img16_1.bmp, Img16_2.bmp ...
3. filesizes from 16x16 to 64x64 are possible
4. displayed RGB-colorvalues

Download
http://www.pflegeplus.com/DOWNLOADS/Grdpaint1.zip

new design with some improvements

usage :
it starts with white colors
1. select the 1. color from the browser ( to be defined with the radio )
with the displayed gradient on the righthandside You can adjust the brightness
2. select the second color
with the slider You can adjust the color-position
3. select the image-output-size
4. select save
5. create the next bmp
( filenames will have a running number and saved in the directory < MYBITMAP > )



regards
Uwe :-)
Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.
Silvio.Falconi
Posts: 7318
Joined: Thu Oct 18, 2012 07:17 PM

Re: creation bitmaps

Posted: Tue Oct 29, 2019 05:44 PM
Uwe,
thanks but I need for another questions

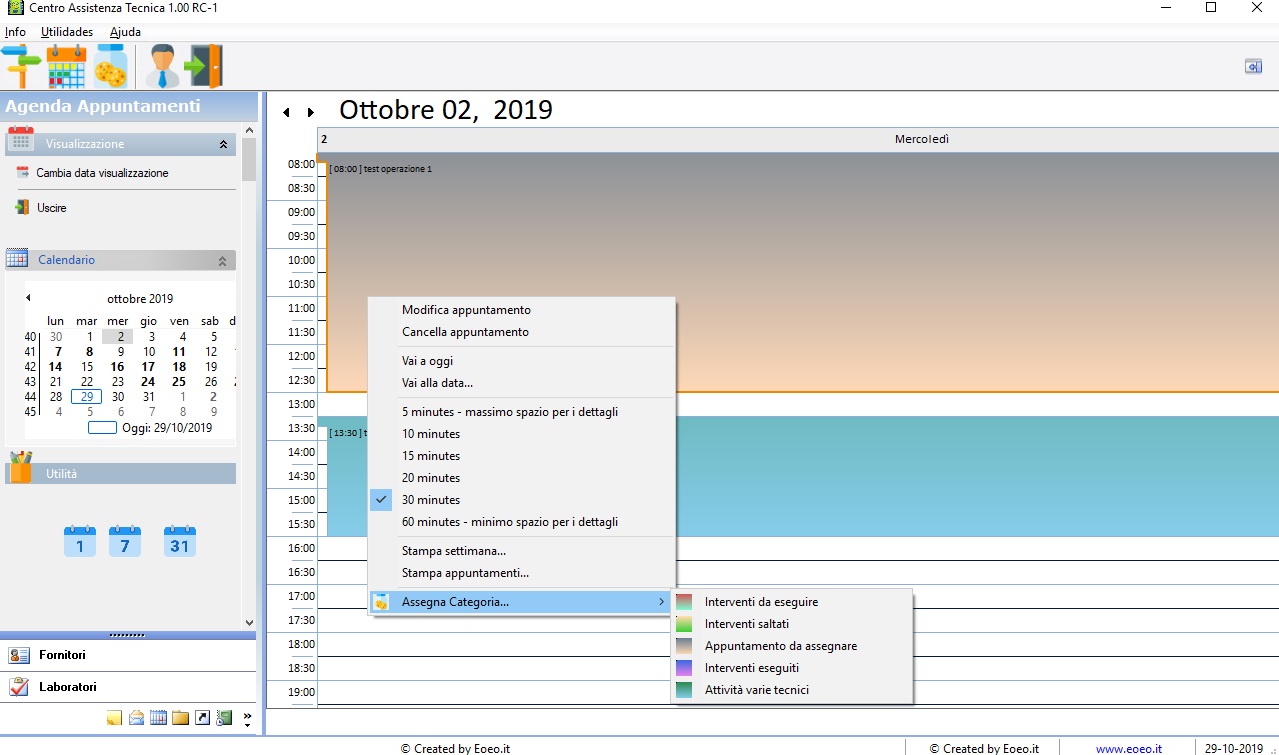

Menupopup

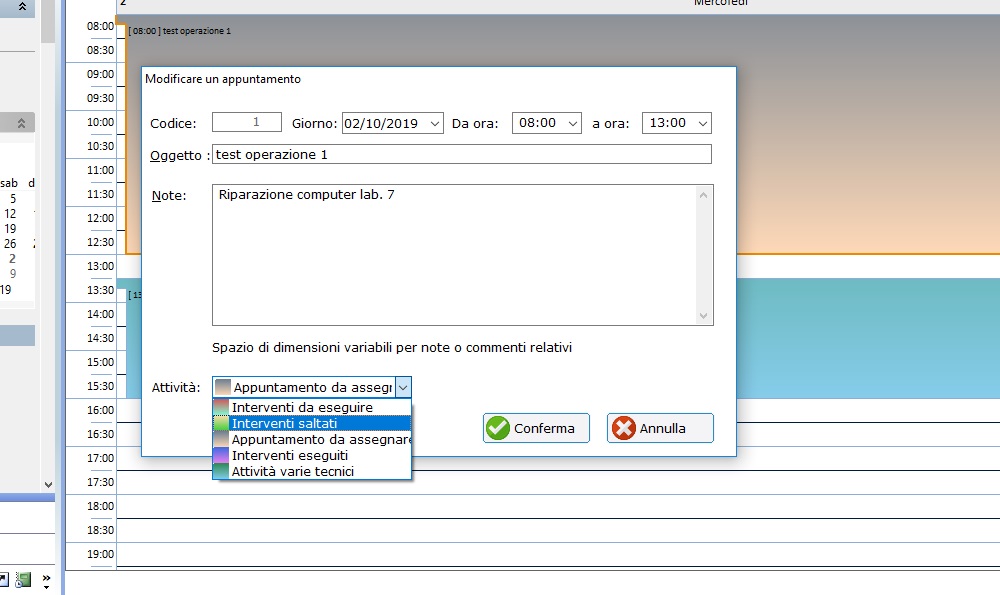

Combobox draitem
Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com
Otto
Posts: 6984
Joined: Fri Oct 07, 2005 07:07 PM

Re: creation bitmaps

Posted: Tue Oct 29, 2019 08:19 PM

Silvio, very nice screens.
Best regards
Otto

Silvio.Falconi
Posts: 7318
Joined: Thu Oct 18, 2012 07:17 PM

Re: creation bitmaps

Posted: Wed Oct 30, 2019 09:03 AM

after two year I Init to have a stable release!!!

Since from 1991/1992 ( fw for clipper Rel. 14.4 - Momos)

I use : FiveWin for Harbour March-April 2024 - Harbour 3.2.0dev (harbour_bcc770_32_20240309) - Bcc7.70 - xMate ver. 1.15.3 - PellesC - mail: silvio[dot]falconi[at]gmail[dot]com
Antonio Linares
Posts: 44162
Joined: Thu Oct 06, 2005 05:47 PM

Re: creation bitmaps

Posted: Wed Oct 30, 2019 09:05 AM

Silvio is already a FiveWin Master...

very good !!!

regards, saludos

Antonio Linares
www.fivetechsoft.com
