Board index FiveWin for Harbour/xHarbour gradiants ?
Detlef
Posts: 218
Joined: Mon Feb 07, 2022 09:54 PM
gradiants ?
Posted: Wed Jun 01, 2022 08:51 PM

Hi all,

could someone tell me where to find information about how to build gradiants?

Thanks,
Detlef

nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM
Re: gradiants ?
Posted: Thu Jun 02, 2022 03:12 AM

aGradient := { ;
{ size1, clrStart1, clrEnd1 }, ;
{ size2, clrStart2, clrEnd2 }, ;
....
{ sizeN, clrStartN, clrEndN } [, lOrient] }

All sizes are fractions less than 1 and total of all sizes should be 1.0

Optionsl lOrient: .T. for Vertical ( default )
.F. for Horizontal
"RING" for ring gradient

We can fill parts of window/dialog/control with

FillRectEx( hDC, aRect, aGrad )

We can also define gradient brush and assign to a window

DEFINE BRUSH oBrush GRADIENT aGrad

Brushes get automatically resized when window gets resized

Regards



G. N. Rao.

Hyderabad, India
nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM
Re: gradiants ?
Posted: Thu Jun 02, 2022 03:16 AM
Sample:
Code (fw): Select all Collapse
#include "fivewin.ch"

//----------------------------------------------------------------------------//

function Main()

   local oWnd
   local aGradV   := ;
      {  { 0.20, CLR_BLUE,    CLR_HBLUE   } ;
      ,  { 0.30, CLR_HBLUE,   CLR_WHITE   } ;
      ,  { 0.30, CLR_WHITE,   CLR_HGREEN  } ;
      ,  { 0.20, CLR_HGREEN,  CLR_GREEN   } ;
      ,  .T.  ; // .t. for vertical and .f. for horizontal (defaul .t.)
      }

   local aGradH   := ;
      {  { 0.20, CLR_BLUE,    CLR_HBLUE   } ;
      ,  { 0.30, CLR_HBLUE,   CLR_WHITE   } ;
      ,  { 0.30, CLR_WHITE,   CLR_HGREEN  } ;
      ,  { 0.20, CLR_HGREEN,  CLR_GREEN   } ;
      ,  .F.  ; // .t. for vertical and .f. for horizontal (defaul .t.)
      }

   local aGradR   := ;
      {  { 0.20, CLR_BLUE,    CLR_HBLUE   } ;
      ,  { 0.30, CLR_HBLUE,   CLR_WHITE   } ;
      ,  { 0.30, CLR_WHITE,   CLR_HGREEN  } ;
      ,  { 0.20, CLR_HGREEN,  CLR_GREEN   } ;
      ,  "RING" ;
      }


   DEFINE WINDOW oWnd FROM 0,0 TO 800,800 PIXEL

   oWnd:bPainted := < |hDC|
      FillRectEx( hDC, { 100, 100, 200, 300 }, aGradV )
      FillRectEx( hDC, { 100, 400, 200, 600 }, aGradH )
      FillRectEx( hDC, { 300, 100, 500, 300 }, aGradR )
      return nil
      >

  ACTIVATE WINDOW oWnd CENTERED

return nil

//----------------------------------------------------------------------------//


Regards



G. N. Rao.

Hyderabad, India
Detlef
Posts: 218
Joined: Mon Feb 07, 2022 09:54 PM
Re: gradiants ?
Posted: Thu Jun 02, 2022 07:25 AM

Many thanks, Mr. Rao for this excellent information.

Rick Lipkin
Posts: 2706
Joined: Fri Oct 07, 2005 01:50 PM
Re: gradiants ?
Posted: Thu Jun 02, 2022 01:44 PM
Here are a few functions I have created and use ...

Code (fw): Select all Collapse
//-------------------
Func GreyButtonGrad()

// 2010 grey button skin

Local bGrad

bGrad := { | lInvert | If( ! lInvert, ;
         { { 1, nRGB( 255, 255, 255 ), nRGB( 207, 207, 207 ) } }, ;
         { { 1/3, nRGB( 255, 253, 222 ), nRGB( 255, 231, 151 ) }, ;
         { 2/3, nRGB( 255, 215,  84 ), nRGB( 255, 233, 162 ) } } ) }

Return( bGrad )

//---------------------------
Func BlueGreenGrad()

Local xGrad4 :=  {{ 1.00,14671839,   7419904 }, { 1.00,7419904,  14671839 }}   // med blue
SetDlgGradient( xGrad4 )

Return(nil)

//---------------------
Func SolidGreenBlue()

SetDlgGradient({ { 0.01,9994298,9994298 },{ 0.01,9994298,9994298 } })
Return(nil)


//-------------
Func SolidDarkBlue()

SetDlgGradient( { { 0.50,4720905,4720905 },{ 0.50,4720905,4720905 } })
Return(nil)

//-------------------
Func SolidBlue()

SetDlgGradient( { { 0.01,16711680,16711680 },{ 0.01,16711680,16711680 } })
Return(nil)

//------------------
Func DarkBlueGrad()

SetDlgGradient({ { 0.0,8388608,13619151 },{ 0.0,13619151,8388608 } })

Return(nil)


//--------------
Func LightGreenGrad()

SetDlgGradient( { { .50, nRGB(210,235,216), nRGB( 255, 255, 255 ) } } )

Return(nil)

//------------------
Func LightBlueGrad()

SetDlgGradient( { { .50, nRGB( 201, 217, 237 ), nRGB( 231, 242, 255 ) } } )

Return(nil)

//------------------
Func LightGreyGrad()

SetDlgGradient( { { .50, nRGB( 216, 216, 216 ), nRGB( 255, 255, 255 ) } } )

Return(nil)

//-----------------
Func StandardGrad()

SetDlgGradient( { { .50, nRGB( 236, 233, 216 ), nRGB( 255, 255, 255 ) } } )

Return(nil)

//--------------------
Func DarkGreyGrad()

SetDlgGradient({{ 005.9000, 14671839, 4144959  },{ 0.1, 4144959, 14671839  }})          // .80


Return(nil)

//------------------------------------
Func SolidWhite()

SetDlgGradient( { { 0.01,16777215,16777215 },{ 0.01,16777215,16777215 } })

Return(nil)

//--------------------
Func SolidGrey()

SetDlgGradient( { { .50, nRGB( 233, 233, 233 ), nRGB( 233, 233, 233 ) } } )

Return(nil)

//--------------------
Func SolidChoral()

SetDlgGradient(aGrad := { { 0.01,8388736,8388736 },{ 0.01,8388736,8388736 } })

Return(nil)

//-----------------
Func LightYellow()

SetDlgGradient( { { 0.01,8440801,16777215 },{ 0.75,16777215,8440801 } })

Return(nil)

//-------------------
Func GreenBlueGrad()

SetDlgGradient( { { .50, nRGB( 192, 192, 192 ), nRGB( 45, 121, 147 ) } } )

Return(nil)


Rick Lipkin
Detlef
Posts: 218
Joined: Mon Feb 07, 2022 09:54 PM
Re: gradiants ?
Posted: Thu Jun 02, 2022 09:25 PM
Thank you, Rick.
There are some nice and useful gradiants in your post.
Your gradients and the profound explanations of Mr. Rao helped me a lot to understand and use gradients.
But I just can't understand that when Mr. Rao stated
All sizes are fractions less than 1 and total of all sizes should be 1.0

But your gradients don't care about. Do you have a certain reason for that?

Regards, Detlef
Rick Lipkin
Posts: 2706
Joined: Fri Oct 07, 2005 01:50 PM
Re: gradiants ?
Posted: Fri Jun 03, 2022 01:05 PM
Detlef

I use the built in FiveWin SetDlgGradient() function .. not much info on the function itself but it works quite nicely ... once you issue SetDlgGradient() it becomes the default windows and dialog background.. I have given you several different gradients .. I use different gradient backgrounds throughout my programs ..

Very easy to create your own functions .. sometime back Uwe created Gradient painter .. I have the program but not the source ... you might search for "Gradient Painter" in the FW Forums and find his contribution ..

Rick Lipkin

ukoenig
Posts: 4043
Joined: Wed Dec 19, 2007 06:40 PM
Re: gradiants ?
Posted: Mon Jun 06, 2022 11:58 AM

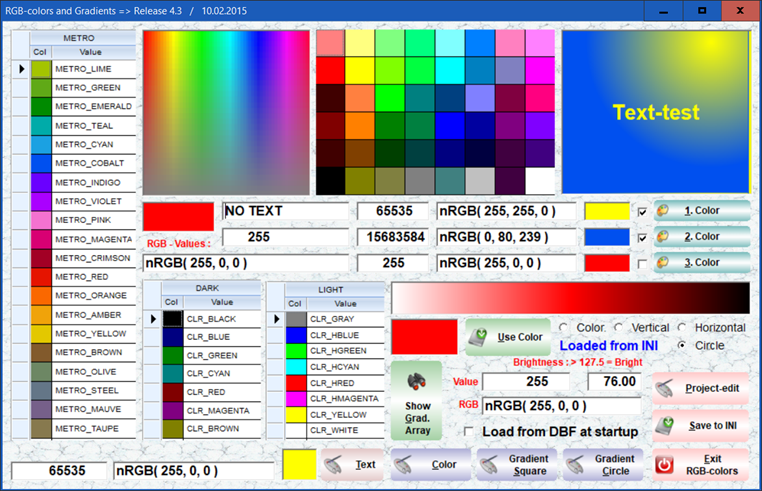

The extended version :
Adjusted links for images and downloads from the changed website.

viewtopic.php?f=3&t=29016

create any gradient You need from selected colours :



best regards
Uwe :-)
Since 1995 ( the first release of FW 1.9 )

i work with FW.

If you have any questions about special functions, maybe i can help.
