Board index FiveWin for Harbour/xHarbour SPLITTER : how to"resize" Client Area
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
SPLITTER : how to"resize" Client Area
Posted: Sun Oct 30, 2022 06:14 AM
hi,

i want use SPLITTER
Code (fw): Select all Collapse
      @ 0, (nWidth/2)-10 SPLITTER oSplit ;
      VERTICAL ;
      PREVIOUS CONTROLS oTab_Left ;
      HINDS CONTROLS oTab_Right ;
      LEFT MARGIN   0 ;
      RIGHT MARGIN 80 ;
      SIZE 4, nHeight PIXEL ;
      OF oMain STYLE
both Side have a TFolder() but how to "resize" it when Client Area change Size :?:

... or do i need a Window" on Client Area :?:
greeting,

Jimmy
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
Re: SPLITTER : how to"resize" Client Area
Posted: Mon Oct 31, 2022 05:12 AM
hi,

i found Method AdjClient() which "seems" to do the Job

but how to call it :?:
Code (fw): Select all Collapse
      @  0, nWidth/2 SPLITTER oSplit ;
              VERTICAL ;
              PREVIOUS CONTROLS oTab_Left ;
              HINDS CONTROLS oTab_Right ;
              LEFT MARGIN 0 ;
              RIGHT MARGIN 80 ;
              SIZE 4, nHeight PIXEL ;
              OF oMain STYLE
greeting,

Jimmy
Antonio Linares
Posts: 44158
Joined: Thu Oct 06, 2005 05:47 PM
Re: SPLITTER : how to"resize" Client Area
Posted: Mon Oct 31, 2022 07:03 AM

Dear Jimmy,

oMain:bResized = { || oMain:oClient:Adjclient() }

regards, saludos

Antonio Linares
www.fivetechsoft.com
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
Re: SPLITTER : how to"resize" Client Area
Posted: Mon Oct 31, 2022 08:25 AM
hi Antonio,
Antonio Linares wrote:oMain:bResized = { || oMain:oClient:Adjclient() }
ok, thx
but how to resize Child Control "on Area" :?:

have 2 x TFolder() and on its "Area" are some Control
when use SPLITTER i can "see" that "Area" of TFolder() resize but not Control on "Area"

---

what is when "maximize" Windows :?:
it "seems" me that SPLITTER will not "notice" new Size.
greeting,

Jimmy
Antonio Linares
Posts: 44158
Joined: Thu Oct 06, 2005 05:47 PM
Re: SPLITTER : how to"resize" Client Area
Posted: Mon Oct 31, 2022 01:42 PM
Dear Jimmy,

Here you have a working example:
Code (fw): Select all Collapse
#include "FiveWin.ch"
#include "Splitter.ch"

function Main()

   local oWnd, oFld1, oFld2, oSplit

   DEFINE WINDOW oWnd

   @ 0, 0 FOLDER oFld1 PROMPTS "Left" SIZE 270, 200

   @ 0, oWnd:nWidth/2 + 5 FOLDER oFld2 PROMPTS "Right" PIXEL

   @  0, oWnd:nWidth/2 SPLITTER oSplit ;
      VERTICAL ;
      PREVIOUS CONTROLS oFld1 ;
      HINDS CONTROLS oFld2 ;
      LEFT MARGIN 100 ;
      RIGHT MARGIN 0 ;
      SIZE 4, oWnd:nHeight PIXEL ;
      OF oWnd STYLE

   ACTIVATE WINDOW oWnd ;
      ON RESIZE ( oSplit:AdjLeft(), oSplit:AdjRight() )

return nil
You can also review FWH\samples\classtree.prg for using more than one splitter
regards, saludos

Antonio Linares
www.fivetechsoft.com
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
Re: SPLITTER : how to"resize" Client Area
Posted: Mon Oct 31, 2022 10:17 PM

hi Antonio,

thx for Sample

i begin to realize that i need to re-write my "resize" to use "each" Tfolder() Size for Child on it

greeting,

Jimmy
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
Re: SPLITTER : how to"resize" Client Area
Posted: Tue Nov 01, 2022 07:10 AM
hi,

i try to "resize" SPLITTER Area and want to know Size of each Area
on each Area i have a Control e.g. BUTTON which "full fit" Area

now i want to "resize" and both BUTTON should be also "resize" to "full fit"
Code (fw): Select all Collapse
PROCEDURE DoResize(oWnd,oSplit)
   ...
   oSplit:AdjLeft()
   oSplit:AdjRight()

// left side
   oCtrol := oSplit:aPrevCtrols[ 1 ]
*   aRect  := GetCoors( oCtrol:hWnd )
*   nWidth  := aRect[4] - aRect[2]
*   nHeight := aRect[3] - aRect[1]

   nWidth  := oCtrol:nWidth
   nHeight := oCtrol:nHeight

// right side
   oCtrol := oSplit:aHindCtrols[ 1 ]
but Data make no Sense ... :(

here Demo Source
Code (fw): Select all Collapse
#include   "FiveWin.ch"
#include   "Splitter.ch"

function Main()
local oWnd, oFld1, oFld2, oSplit
local oBtn1, oBtn2

   DEFINE WINDOW oWnd

   @ 0, 0 FOLDER oFld1 PROMPTS "Left" SIZE 270, 200
   @ 30, 0 BUTTON oBtn1 SIZE oWnd:nHeight-30, oWnd:nWidth/2 PIXEL OF oFld1

   @ 0, oWnd:nWidth/2 + 5 FOLDER oFld2 PROMPTS "Right" PIXEL
   @ 30, 0 BUTTON oBtn2 SIZE oWnd:nHeight-30, oWnd:nWidth/2 PIXEL OF oFld2

   @ 0, oWnd:nWidth/2 SPLITTER oSplit ;
         VERTICAL ;
         PREVIOUS CONTROLS oFld1 ;
         HINDS CONTROLS oFld2 ;
         LEFT MARGIN   100 ;
         RIGHT MARGIN   0 ;
         SIZE 4, oWnd:nHeight PIXEL ;
         OF oWnd STYLE

    ACTIVATE WINDOW oWnd ;
        ON RESIZE DoResize(oWnd,oSplit)

RETURN NIL

PROCEDURE DoResize(oWnd,oSplit)
LOCAL nHeight := oWnd:nHeight
LOCAL nWidth  := oWnd:nWidth
LOCAL oCtrol, aRect

FWLOG "oWnd" ,nWidth,nHeight

   oSplit:AdjLeft()
   oSplit:AdjRight()

   oCtrol := oSplit:aPrevCtrols[ 1 ]
*   aRect  := GetCoors( oCtrol:hWnd )
*   nWidth  := aRect[4] - aRect[2]
*   nHeight := aRect[3] - aRect[1]

   nWidth  := oCtrol:nWidth
   nHeight := oCtrol:nHeight

FWLOG "left" ,nWidth,nHeight,aRect

   oCtrol := oSplit:aHindCtrols[ 1 ]
*   aRect  := GetCoors( oCtrol:hWnd )
*   nWidth  := aRect[4] - aRect[2]
*   nHeight := aRect[3] - aRect[1]

   nWidth  := oCtrol:nWidth
   nHeight := oCtrol:nHeight

FWLOG "Right",nWidth,nHeight,aRect

RETURN
who can point me the Way please
greeting,

Jimmy
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
Re: SPLITTER : how to"resize" Client Area
Posted: Tue Nov 01, 2022 10:50 PM
hi,

try Sample "as it is"

try "maximize" or "resize"
try "move" SPLITTER

---

SPLITTER go from TOP to BUTTOM when "ON RESIZE" is working

when not use "ON RESIZE" you can "see" that Size / Pos is correct

so what i´m doing wrong using SPLITTER :?:

---
Code (fw): Select all Collapse
#include   "FiveWin.ch"
#include   "Splitter.ch"

FUNCTION Main()
local oWnd, oFld1, oFld2, oSplit, nPart
local oBtn1, oBtn2
LOCAL ii, oBtn0, nCol := 0, aButton := {}
LOCAL bAction := { || MsgInfo( "hello" ) }

   DEFINE WINDOW oWnd

   @ 0, 0 FOLDER oFld1 PROMPTS "Left" SIZE 270, oWnd:nHeight-80 PIXEL COLOR CLR_RED,CLR_RED
*  @ 30, 0 BUTTON oBtn1 SIZE oWnd:nHeight-30, oWnd:nWidth/2 PIXEL OF oFld1
   oBtn1 := TButton() :new( 30, 2 , "left", oFld1,, oWnd:nWidth/2 -4, oWnd:nHeight-60,,,, .T. )
   oBtn1:bAction := bAction

   @ 0, oWnd:nWidth/2 + 5 FOLDER oFld2 PROMPTS "Right" SIZE 270, oWnd:nHeight-80 PIXEL COLOR CLR_GREEN,CLR_GREEN
*   @ 30, 0 BUTTON oBtn2 SIZE oWnd:nHeight-30, oWnd:nWidth/2 PIXEL OF oFld2
   oBtn2 := TButton() :new( 30, 2 , "right", oFld2,, oWnd:nWidth/2 -4, oWnd:nHeight-60,,,, .T. )
   oBtn2:bAction := bAction

   @ 0, oWnd:nWidth/2 SPLITTER oSplit ;
         VERTICAL ;
         PREVIOUS CONTROLS oFld1 ;
         HINDS CONTROLS oFld2 ;
         LEFT MARGIN   10 ;
         RIGHT MARGIN   0 ;
         SIZE 8, 8 PIXEL ;
         ON CHANGE DoResize(oWnd,oSplit,oBtn1, oBtn2,aButton) ;
         OF oWnd

   nPart := oWnd:nWidth/12
   FOR ii := 1 TO 12
      oBtn0 := TButton() :new( oWnd:nHeight - 68, nCol, "F"+STRZERO(ii,2), oWnd,, nPart - 4, 20,,,, .T. )
      oBtn0:bAction := bAction

      nCol += nPart
      AADD(aButton,oBtn0)
   NEXT

    ACTIVATE WINDOW oWnd ;
        ON RESIZE DoResize(oWnd,oSplit,oBtn1, oBtn2,aButton) CENTER

*   CENTER

RETURN NIL
Code (fw): Select all Collapse
PROCEDURE DoResize(oWnd,oSplit,oBtn1, oBtn2,aButton)
LOCAL nHeight := oWnd:nHeight
LOCAL nWidth  := oWnd:nWidth
LOCAL nPart   := oWnd:nWidth/12
LOCAL ii, oBtn, nCol := 0
LOCAL oCtrol, aRect

FWLOG "oWnd",nWidth,nHeight
   oSplit:AdjLeft()
   oSplit:AdjRight()

   oCtrol := oSplit:aPrevCtrols[ 1 ]
   nWidth  := oCtrol:nWidth  -4
   nHeight := oCtrol:nHeight -60

   oBtn1:SetSize(nWidth,nHeight)
FWLOG "left",nWidth,nHeight,aRect

   oCtrol := oSplit:aHindCtrols[ 1 ]
   nWidth  := oCtrol:nWidth  -4
   nHeight := oCtrol:nHeight -60

   oBtn2:SetSize(nWidth,nHeight)
FWLOG "Right",nWidth,nHeight,aRect

   FOR ii := 1 TO 12
      aButton[ii]:SetSize(nPart,20)
      aButton[ii]:SetPos(oWnd:nHeight - 68, nCol)
      nCol += nPart
   NEXT
RETURN
greeting,

Jimmy
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
Re: SPLITTER : how to"resize" Client Area
Posted: Thu Nov 03, 2022 01:08 PM
hi,

have figure out how SPLITTER work :)
Code (fw): Select all Collapse
#include   "FiveWin.ch"
#include   "Splitter.ch"

#define ID_TOP       30
#define ID_FXBAR     68

*+--------------------------------------------------------------------
*+
*+    Function Main()
*+
*+--------------------------------------------------------------------
*+

FUNCTION Main()

LOCAL oWnd, oFld1, oFld2, oSplit, nPart
LOCAL nHeight, nWidth
LOCAL oBtn1, oBtn2
LOCAL ii, oBtn0, nCol := 0, aButton := {}
LOCAL bAction := { || MsgInfo( "hello Main" ) }

   DEFINE WINDOW oWnd FROM 0, 0 TO 600, 800 PIXEL

      nWidth := oWnd:nWidth / 2
      nHeight := oWnd:nHeight

      oFld1 := TFolder() :New( 0,          0, { "Grid_left1"  },, oWnd, 1,,, .T., .F., nWidth - 5, nHeight - 70 )
      oBtn1 := TButton() :new( ID_TOP, 2, "left" , oFld1, bAction, nWidth - 6, nHeight - 120,,,, .T. )
      oBtn1:bAction := bAction

      oFld2 := TFolder() :New( 0, nWidth + 5, { "Grid_right1" },, oWnd, 1,,, .T., .F., nWidth - 5, nHeight - 70 )
      oBtn2 := TButton() :new( ID_TOP, 2, "right", oFld2, bAction, nWidth - 6, nHeight - 120,,,, .T. )
      oBtn2:bAction := bAction

      nPart := oWnd:nWidth / 12
      FOR ii := 1 TO 12
         oBtn0 := TButton() :new( nHeight - ID_FXBAR, nCol, "F" + STRZERO( ii, 2 ), oWnd, bAction, nPart - 4, 20,,,, .T. )
         nCol += nPart
         AADD( aButton, oBtn0 )
      NEXT

      @ ID_TOP, nWidth - 10 SPLITTER oSplit ;
              VERTICAL ;
              PREVIOUS CONTROLS oFld1 ;
              HINDS    CONTROLS oFld2 ;
              LEFT MARGIN 1 ;
              RIGHT MARGIN 1 ;
              SIZE 8, nHeight - 98 PIXEL ;
              ON CHANGE DoResize( oWnd, oSplit, oFld1, oFld2, oBtn1, oBtn2, aButton ) ;
              COLOR CLR_BLUE ;
              OF oWnd

#IFDEF __HMG__
   END WINDOW
#ENDIF

   ACTIVATE WINDOW oWnd ;
           ON RESIZE DoResize( oWnd, oSplit, oFld1, oFld2, oBtn1, oBtn2, aButton ) CENTER

RETURN NIL

*+--------------------------------------------------------------------
*+
*+    Procedure DoResize()
*+
*+    Called from ( split1.prg )   2 - function main()
*+                ( tgrid.prg )   2 - procedure main()
*+
*+--------------------------------------------------------------------
*+
PROCEDURE DoResize( oWnd, oSplit, oFld1, oFld2, oBtn1, oBtn2, aButton )

LOCAL nTop       := oWnd:nTop
LOCAL nBottom    := oWnd:nBottom
LOCAL nRight     := oWnd:nRight
LOCAL nLeft      := oWnd:nLeft
LOCAL nHeight    := nBottom - nTop
LOCAL nPart      := oWnd:nWidth / 12
LOCAL nLeftWidth, nRightWidth
LOCAL ii, oBtn, nCol := 0
LOCAL oCtrol

   // ************************ left *************************

   oSplit:AdjLeft()
   oSplit:nTop    := ID_TOP
   oSplit:nHeight := nHeight - ID_TOP - ID_FXBAR

   oCtrol := oSplit:aPrevCtrols[ 1 ]
   nLeftWidth     := oCtrol:nWidth

   IF nLeftWidth > oWnd:nWidth
      nLeftWidth  := oWnd:nWidth - 100
      oSplit:SetPosition( nLeftWidth )
   ENDIF

   oCtrol:nLeft   := 0
   oCtrol:nRight  := nLeftWidth
   oCtrol:nTop    := ID_TOP
   oCtrol:nBottom := nHeight - ID_FXBAR - 130
   oCtrol:SetSize( nLeftWidth, nHeight - ID_FXBAR - 40 )

   oBtn1:SetPos( ID_TOP, 20 )
   oBtn1:SetSize( nLeftWidth - 40, nHeight - ID_FXBAR - 90 )

   // ************************ right *************************

   oSplit:AdjRight()
   oSplit:nTop    := ID_TOP
   oSplit:nHeight := nHeight - ID_TOP - ID_FXBAR

   oCtrol := oSplit:aHindCtrols[ 1 ]
   nRightWidth    := oCtrol:nWidth

   oCtrol:nLeft   := nLeftWidth
   oCtrol:nRight  := nRightWidth
   oCtrol:nTop    := ID_TOP
   oCtrol:nBottom := nHeight - ID_FXBAR - 130
   oCtrol:SetSize( nRightWidth, nHeight - ID_FXBAR - 40 )

   oBtn2:SetPos( ID_TOP, 20 )
   oBtn2:SetSize( nRightWidth - 40, nHeight - ID_FXBAR - 90 )

   // ************************ NEED again *************************

   oFld1:SetPos( ID_TOP, 0 )
   oFld1:SetSize( nLeftWidth, nHeight - ID_FXBAR - 40 )

   // ************************ Fx Buttons *************************

   FOR ii := 1 TO 12
      aButton[ ii ] :SetSize( nPart, 30 )
      aButton[ ii ] :SetPos( oWnd:nHeight - ID_FXBAR, nCol )
      nCol += nPart
   NEXT

   oWnd:Refresh()
RETURN
*+ EOF: SPLIT1.PRG
but it need a Workaround to work as i want

---
IHMO
SPLITTER VERTICAL use "full height" of Window even when attached PREVIOUS / HINDS does not use "full height"
so left Position of PREVIOUS is wrong without Workaround
greeting,

Jimmy
Antonio Linares
Posts: 44158
Joined: Thu Oct 06, 2005 05:47 PM
Re: SPLITTER : how to"resize" Client Area
Posted: Thu Nov 03, 2022 04:07 PM

Dear Jimmy,

many thanks for your great feedback

> but it need a Workaround to work as i want

How should it work ? what is missing ?

regards, saludos

Antonio Linares
www.fivetechsoft.com
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
Re: SPLITTER : how to"resize" Client Area
Posted: Thu Nov 03, 2022 05:02 PM
hi Antonio,

SPLITTER is working IMHO on "hole height" (VERTICAL) and not "relative" to attached Object

in Sample attached Object have TOP := 40 and BOTTOM ;= height - 68 so it is "in Middle" of Window
to "see" what i mean disable these 2 Lines under *** NEED again *** and see what happens
Code (fw): Select all Collapse
//     oFld1:  SetPos  ( ID_TOP,   0   )
//     oFld1:  SetSize  ( nLeftWidth, nHeight - ID_FXBAR -   40   )
left FOLDER will be to height ... but i have SET Pos & Size "before" :!:

if press SPLITTER to "move" it will still go to Bottom but i have "limited" to Object "in Middle" of Window

---

Request :
would be nice to get "Percent" to use that Value to "o:SetPosition()" when "maximize"
use a IMAGE to "paint" SPLITTER
greeting,

Jimmy
Antonio Linares
Posts: 44158
Joined: Thu Oct 06, 2005 05:47 PM
Re: SPLITTER : how to"resize" Client Area
Posted: Thu Nov 03, 2022 07:26 PM

Dear Jimmy,

Have you reviewed FWH\samples\classtree.prg ?

I think it is a very good example of working with splitters

Look for splitter in FWH\samples and you will find several examples

regards, saludos

Antonio Linares
www.fivetechsoft.com
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
Re: SPLITTER : how to"resize" Client Area
Posted: Thu Nov 03, 2022 07:41 PM
hi Antonio,
Antonio Linares wrote:Have you reviewed FWH\samples\classtree.prg ?
YES
Antonio Linares wrote:I think it is a very good example of working with splitters
Look for splitter in FWH\samples and you will find several examples
NO

left Side goes from TOP to BUTTON what i not do while have 12 x BUTTON on Button above STATUSBAR

please run Sample i have made to show where "my" SPLITTER work NOT from TOP until BOTTOM :!:

p.s. can i put a Toolbar on Bottom using Fivewin :?:
greeting,

Jimmy
cnavarro
Posts: 6755
Joined: Wed Feb 15, 2012 08:25 PM
Re: SPLITTER : how to"resize" Client Area
Posted: Thu Nov 03, 2022 07:42 PM

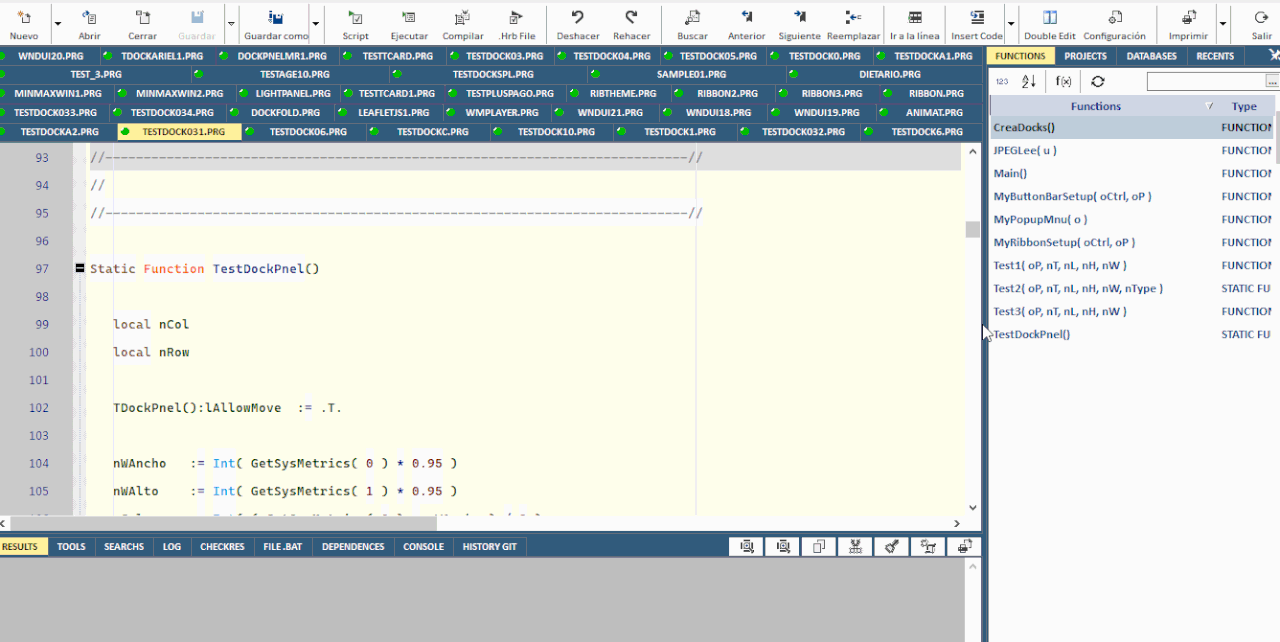

I don't know if I have understood correctly what you need
Jimmy, is this what you need? The resizing of the controls contained on both sides of the splitter ?
Cristobal Navarro

Hay dos tipos de personas: las que te hacen perder el tiempo y las que te hacen perder la noción del tiempo

El secreto de la felicidad no está en hacer lo que te gusta, sino en que te guste lo que haces
Jimmy
Posts: 1772
Joined: Thu Sep 05, 2019 05:32 AM
Re: SPLITTER : how to"resize" Client Area
Posted: Thu Nov 03, 2022 08:34 PM
hi,
cnavarro wrote:I don't know if I have understood correctly what you need
please run Sample i have provide which run fine so far

than edit Source and comment out this 2 lines
Code (fw): Select all Collapse
 // ************************ NEED again *************************
    //     oFld1:  SetPos  ( ID_TOP,   0   )
    //     oFld1:  SetSize  ( nLeftWidth, nHeight - ID_FXBAR -   40   )
now you can "see" that left Side begin "on TOP" instead to leave Space (for Combobox) before FOLDER begin
greeting,

Jimmy
Static archive · New replies & topics via GitHub Discussions
