Antonio Linares wrote:Dear Richard,Dear Antonio,
I have to check it with Mr. Rao
thanks for the reminder
Dear Richard,

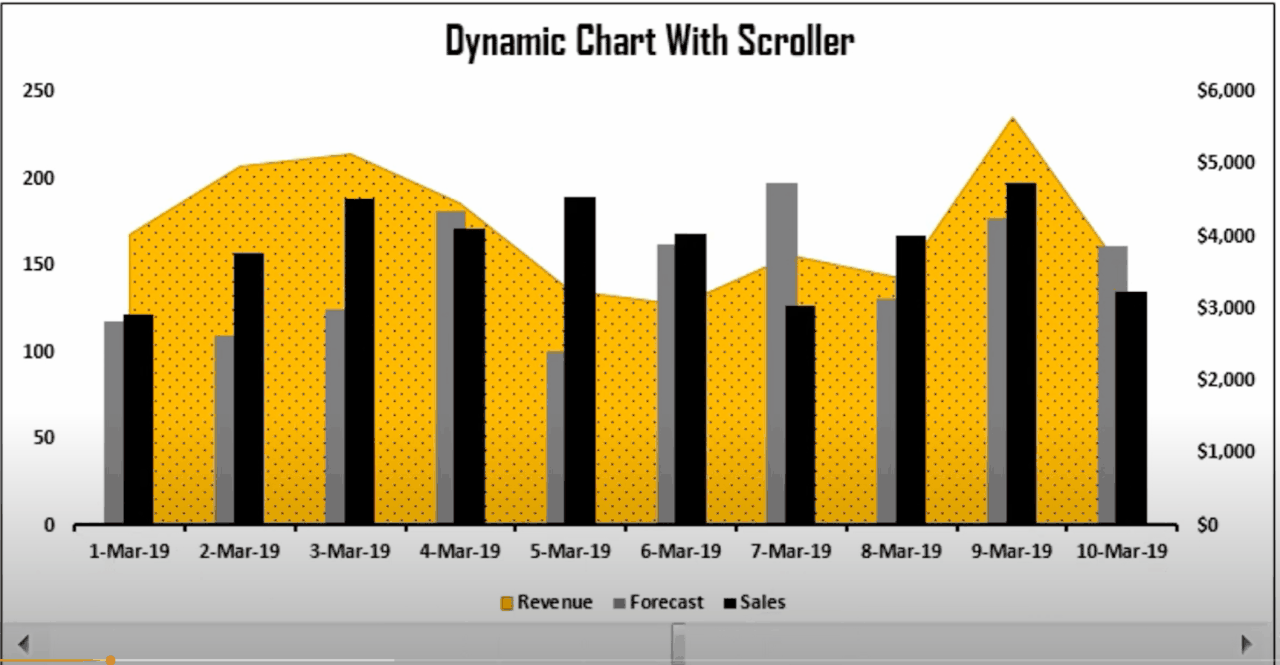

Can you please provide me an example (PRG) of a non scrollable chart ?
I will implement it as scrollable.
We do apologize for the delay on this
got the example, working on it
Antonio Linares wrote:got the example, working on itAny News?
Dear Richard,

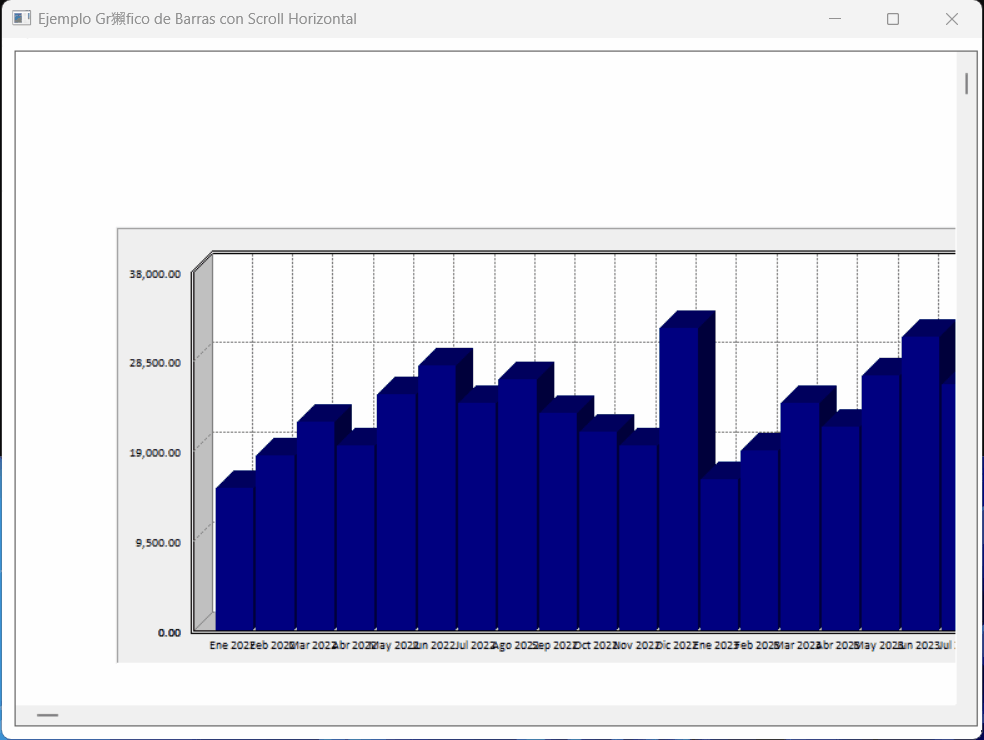

We were considering to use a scrollpanel and use it to scroll the graph to each side
Would that be a good solution ?
Antonio Linares wrote:Dear Richard,Sounds good.
We were considering to use a scrollpanel and use it to scroll the graph to each side
Would that be a good solution ?
Antonio Linares wrote: Dear Richard,any sample file for try?
We were considering to use a scrollpanel and use it to scroll the graph to each side
Would that be a good solution ?
Antonio Linares wrote: Dear Richard,Dear Antonio,
We were considering to use a scrollpanel and use it to scroll the graph to each side
Would that be a good solution ?
Dear Richard,
It seems to me as Silvio implemented it recently.
Going to check it with Silvio
Antonio Linares wrote: Dear Richard,Dear Antonio,
It seems to me as Silvio implemented it recently.
Going to check it with Silvio
/*
*
* ScrlPanl.prg
* Author: GNRao,India + enhancements by Copilot Agent
* 08-07-2009 08:48 PM
*
*/
#include "FiveWin.Ch"
#define GWL_STYLE -16
#define GWL_EXSTYLE -20
#define CS_DBLCLKS 8
#define MK_MBUTTON 0x0010
#define MK_SHIFT 0x0004
static lVScrolled := .f.
static lHScrolled := .f.
//------------------------------------------------------------------//
CLASS TScrollPanel FROM TPanel
CLASSDATA lRegistered AS LOGICAL
DATA aPages INIT Array( 0 )
DATA vStep INIT 20
DATA hStep INIT 20
DATA oCtrlTop
DATA oCtrlBot
DATA nCtrlTopTop
DATA nCtrlBotTop
// Horizontal scroll support
DATA oCtrlLeft
DATA oCtrlRight
DATA nCtrlLeftLeft
DATA nCtrlRightLeft
// Margins to be left from right & bottom of Parent window when resized
DATA nRightMargin INIT 0
DATA nBottomMargin INIT 0
DATA nScrollRange
DATA nHScrollRange
DATA aSays INIT Array( 0 )
// Scroll By Drag DATA
DATA lScrollDrag INIT .f.
DATA nOldRow INIT 0
DATA nOldCol INIT 0
//
METHOD New( nTop, nLeft, nBottom, nRight, oWnd, lNoBorder ) CONSTRUCTOR
METHOD Resize( nSizeType, nWidth, nHeight )
METHOD CheckResize()
ACCESS nCtrlHt INLINE ( ::oCtrlBot:nTop + ::oCtrlBot:nHeight - ::oCtrlTop:nTop )
ACCESS nCtrlWd INLINE ( ::oCtrlRight:nLeft + ::oCtrlRight:nWidth - ::oCtrlLeft:nLeft )
ACCESS nPos INLINE Max(1, ( ::nCtrlTopTop - ::oCtrlTop:nTop ) )
ACCESS nHPos INLINE Max(1, ( ::nCtrlLeftLeft - ::oCtrlLeft:nLeft ) )
METHOD vScroll( nWParam, nLParam )
METHOD hScroll( nWParam, nLParam )
METHOD vSetPos()
METHOD hSetPos()
METHOD MouseWheel( nKeys, nDelta, nXPos, nYPos )
METHOD GoTop() INLINE ( ::ScrollBy( ::nCtrlTopTop - ::oCtrlTop:nTop, 0 ), ::oVScroll:SetPos( 1 ) )
METHOD GoBottom() INLINE ( ::ScrollBy( -::oCtrlBot:nTop, 0 ), ::oVScroll:SetPos( ::oVScroll:GetRange()[ 2 ] ) )
METHOD GoLeft() INLINE ( ::ScrollBy( 0, ::nCtrlLeftLeft - ::oCtrlLeft:nLeft ), ::oHScroll:SetPos( 1 ) )
METHOD GoRight() INLINE ( ::ScrollBy( 0, -::oCtrlRight:nLeft ), ::oHScroll:SetPos( ::oHScroll:GetRange()[ 2 ] ) )
METHOD GoUp( nPix )
METHOD GoDown( nPix )
METHOD GoLeftPix( nPix )
METHOD GoRightPix( nPix )
METHOD GoToPos( nPos )
METHOD GoToHPos( nPos )
METHOD PageUp() INLINE ::GoUp( 2 * ::vStep )
METHOD PageDown() INLINE ::GoDown( 2 * ::vStep )
METHOD PageLeft() INLINE ::GoLeftPix( 2 * ::hStep )
METHOD PageRight() INLINE ::GoRightPix( 2 * ::hStep )
METHOD ControlIntoView( oControl )
METHOD SetRange()
METHOD ScrollBy( nPixV, nPixH )
METHOD SetPage( cPage, nRow ) INLINE AAdd( ::aPages, { Upper( AllTrim( cPage ) ), nRow } )
METHOD GoToPage( cPage )
METHOD NcMouseMove( nHitTestCode, nRow, nCol )
METHOD Display() INLINE ( ::BeginPaint(), ::Paint(), ::EndPaint(), 0 )
METHOD Paint()
METHOD PaintText( nItem )
METHOD AddText( nRow, nCol, nWidth, nHeight, cbText, cPicture, oFont, ;
lTransparent, nClrText, nClrBack, nAlign )
// METHOD GotFocus( hCtlLost )
// METHOD GoNextCtrl( hCtrl )
// METHOD GoPrevCtrl( hCtrl )
// Scroll By Drag METHODS
METHOD LButtonDown( nRow, nCol, nFlags, lTouch ) INLINE ( ::lScrollDrag := .t., ::nOldRow := nRow, ::nOldCol := nCol, ::Super:LButtonDown( nRow, nCol, nFlags, lTouch ) )
METHOD LButtonUp( nRow, nCol, nFlags ) INLINE ( ::lScrollDrag := .f., ::nOldRow := 0, ::nOldCol := 0, ::Super:LButtonUp( nRow, nCol, nFlags ) )
METHOD MouseMove( nRow, nCol, nFlags ) INLINE ( ;
if( !::lDrag, ;
( If( lAnd( nFlags, 1 ), nil, ( ::lScrollDrag := .f., ::nOldRow := 0, ::nOldCol := 0 ) ), ;
If( ::lScrollDrag, ( If( nRow > ::nOldRow, ::GoUp( nRow - ::nOldRow ), ::GoDown( ::nOldRow - nRow ) ), ;
If( nCol > ::nOldCol, ::GoLeftPix( nCol - ::nOldCol ), ::GoRightPix( ::nOldCol - nCol ) ), ;
::nOldRow := nRow, ::nOldCol := nCol ), nil ) ), ), ;
::Super:MouseMove( nRow, nCol, nFlags ) )
METHOD HandleGesture( nGesture, nLParam )
//
METHOD cGenPrg( lDlgUnits )
ENDCLASS
//------------------------------------------------------------------//
METHOD New( nTop, nLeft, nBottom, nRight, oWnd, lNoBorder ) CLASS TScrollPanel
// ::oWnd:bMouseWheel := { | nKeys, nDelta, nXPos, nYPos | ::MouseWheel( nKeys, nDelta, nXPos, nYPos ) }
DEFAULT nTop := 0, nLeft := 0, nBottom := 100, nRight := 100,;
oWnd := GetWndDefault(), lNoBorder := .f.
::lUnicode = FW_SetUnicode()
::nTop = nTop
::nLeft = nLeft
::nBottom = nBottom
::nRight = nRight
::oWnd = oWnd
::nStyle = nOr( WS_CHILD, WS_VSCROLL, WS_HSCROLL,;
WS_VISIBLE, WS_TABSTOP, WS_CLIPCHILDREN )
::lDrag = .F.
::nClrPane = CLR_WHITE //GetSysColor( COLOR_BTNFACE )
if ! lNoBorder
::nStyle := nOr( ::nStyle, WS_BORDER )
endif
::Register( nOr( CS_VREDRAW, CS_HREDRAW, CS_DBLCLKS ) )
if ! Empty( ::oWnd:hWnd )
::Create()
::oWnd:AddControl( Self )
if ::oWnd:oBrush != nil
::SetBrush( ::oWnd:oBrush )
endif
else
::oWnd:DefControl( Self )
endif
DEFINE SCROLLBAR ::oVScroll VERTICAL OF Self RANGE 1,2
DEFINE SCROLLBAR ::oHScroll HORIZONTAL OF Self RANGE 1,2
::oWnd:OnResize := { || ::CheckResize() }
RETURN Self
//------------------------------------------------------------------//
METHOD ReSize( nSizeType, nWidth, nHeight ) CLASS TScrollPanel
if !::lDrag
::vSetPos() // nHeight )
endif
return ::Super:ReSize( nSizeType, nWidth, nHeight )
//------------------------------------------------------------------//
METHOD CheckResize() CLASS TScrollPanel
local aRect := GetClientRect( ::oWnd:hWnd )
local nHeight, nWidth
if ::nBottomMargin > 0 .or. ::nRightMargin > 0
if ::oWnd:oBottom != nil
aRect[ 3 ] -= ::oWnd:oBottom:nHeight
elseif ::oWnd:oMsgBar != nil
aRect[ 3 ] -= ::oWnd:oMsgBar:nHeight
endif
nHeight := aRect[ 3 ] - aRect[ 1 ] - ::nTop - ::nBottomMargin //- 28
nWidth := aRect[ 4 ] - aRect[ 2 ] - ::nLeft - ::nRightMargin
if nHeight != ::nHeight .or. nWidth != ::nWidth
if ::nBottomMargin > 0
::nHeight := nHeight
endif
if ::nRightMargin > 0
::nWidth := nWidth
endif
endif
endif
return nil
//----------------------------------------------------------------------------//
METHOD SetRange() CLASS TScrollPanel
local oTop, oBot, oLeft, oRight, oCtrl, nTop, nBot, nLeft, nRight
if Len( ::aControls ) > 0
oTop := oBot := oLeft := oRight := ::aControls[ 1 ]
nTop := oTop:nTop
nBot := oBot:nTop + oBot:nHeight
nLeft := oLeft:nLeft
nRight := oRight:nLeft + oRight:nWidth
for each oCtrl in ::aControls
if oCtrl:nTop < nTop
oTop := oCtrl
nTop := oTop:nTop
endif
if oCtrl:nTop + oCtrl:nHeight > nBot
oBot := oCtrl
nBot := oBot:nTop + oBot:nHeight
endif
if oCtrl:nLeft < nLeft
oLeft := oCtrl
nLeft := oLeft:nLeft
endif
if oCtrl:nLeft + oCtrl:nWidth > nRight
oRight := oCtrl
nRight := oRight:nLeft + oRight:nWidth
endif
if lAnd( GetWindowLong( oCtrl:hWnd, GWL_STYLE ), WS_TABSTOP ) .and. ;
! oCtrl:IsKindOf( "TCOMBOBOX" )
oCtrl:bGotFocus := { |o| If( lVScrolled,,::ControlIntoView( o )), lVScrolled := .f. }
endif
next
::oCtrlTop := oTop
::oCtrlBot := oBot
::oCtrlLeft := oLeft
::oCtrlRight := oRight
::nCtrlTopTop := ::oCtrlTop:nTop
::nCtrlBotTop := ::oCtrlBot:nTop
::nCtrlLeftLeft := ::oCtrlLeft:nLeft
::nCtrlRightLeft := ::oCtrlRight:nLeft
::nScrollRange := ::nCtrlBotTop
::nHScrollRange := ::nCtrlRightLeft
::oVScroll:SetRange( 1, ::nScrollRange )
::oHScroll:SetRange( 1, ::nHScrollRange )
::vSetPos()
::hSetPos()
endif
return Self
//----------------------------------------------------------------------------//
METHOD vSetPos() CLASS TScrollPanel
::oVScroll:SetPos( Max( 1, ::nCtrlTopTop - ::oCtrlTop:nTop ) )
return Self
//----------------------------------------------------------------------------//
METHOD hSetPos() CLASS TScrollPanel
::oHScroll:SetPos( Max( 1, ::nCtrlLeftLeft - ::oCtrlLeft:nLeft ) )
return Self
//------------------------------------------------------------------//
METHOD ScrollBy( nPixV, nPixH ) CLASS TScrollPanel
DEFAULT nPixV := 0, nPixH := 0
if ! Empty( nPixV ) .or. ! Empty( nPixH )
if ! Empty( ::aSays )
if ! Empty( nPixV )
AEval( ::aSays, { |a| a[ 1 ][ 1 ] += nPixV, a[ 1 ][ 3 ] += nPixV } )
endif
if ! Empty( nPixH )
AEval( ::aSays, { |a| a[ 1 ][ 2 ] += nPixH, a[ 1 ][ 4 ] += nPixH } )
endif
::Refresh()
endif
ScrollWindow( ::hWnd, nPixH, nPixV, 0, GetClientRect( ::hWnd ) )
endif
return nil
//----------------------------------------------------------------------------//
METHOD GoUp( nPix ) CLASS TScrollPanel
DEFAULT nPix := ::vStep
nPix := Min( nPix, ::nCtrlTopTop - ::oCtrlTop:nTop )
if nPix > 0
::ScrollBy( nPix, 0 )
::oVScroll:SetPos( ::nPos )
endif
return Self
//------------------------------------------------------------------//
METHOD GoDown( nPix ) CLASS TScrollPanel
DEFAULT nPix := ::vStep
nPix := Min( nPix, ::oCtrlBot:nTop )
if nPix > 0
::ScrollBy( -nPix, 0 )
::oVScroll:SetPos( ::nPos )
endif
return Self
//------------------------------------------------------------------//
METHOD GoLeftPix( nPix ) CLASS TScrollPanel
DEFAULT nPix := ::hStep
nPix := Min( nPix, ::nCtrlLeftLeft - ::oCtrlLeft:nLeft )
if nPix > 0
::ScrollBy( 0, nPix )
::oHScroll:SetPos( ::nHPos )
endif
return Self
//------------------------------------------------------------------//
METHOD GoRightPix( nPix ) CLASS TScrollPanel
DEFAULT nPix := ::hStep
nPix := Min( nPix, ::oCtrlRight:nLeft )
if nPix > 0
::ScrollBy( 0, -nPix )
::oHScroll:SetPos( ::nHPos )
endif
return Self
//------------------------------------------------------------------//
METHOD GoToPos( nPos ) CLASS TScrollPanel
local nPix
nPix := ::nCtrlTopTop - nPos - ::oCtrlTop:nTop
if nPix != 0
::ScrollBy( nPix, 0 )
::oVScroll:SetPos( ::nPos )
endif
return Self
//------------------------------------------------------------------//
METHOD GoToHPos( nPos ) CLASS TScrollPanel
local nPix
nPix := ::nCtrlLeftLeft - nPos - ::oCtrlLeft:nLeft
if nPix != 0
::ScrollBy( 0, nPix )
::oHScroll:SetPos( ::nHPos )
endif
return Self
//------------------------------------------------------------------//
METHOD VScroll( nWParam, nLParam ) CLASS TScrollPanel
local nScrHandle := nLParam
local nScrollCode := nLoWord( nWParam )
local nPos := nHiWord( nWParam )
lVScrolled := .t.
if GetFocus() != ::hWnd
SetFocus( ::hWnd )
endif
if nScrHandle == 0 .and. ::oVScroll != nil
do case
case nScrollCode == SB_LINEUP
::GoUp()
case nScrollCode == SB_LINEDOWN
::GoDown()
case nScrollCode == SB_PAGEUP
::PageUp()
case nScrollCode == SB_PAGEDOWN
::PageDown()
case nScrollCode == SB_TOP
::GoTop()
case nScrollCode == SB_BOTTOM
::GoBottom()
case nScrollCode == SB_THUMBPOSITION .or. ;
nScrollCode == SB_THUMBTRACK
do case
case nPos == 1
::GoTop()
case nPos == ::oVScroll:GetRange()[ 2 ]
::GoBottom()
otherwise
::GoToPos( nPos )
endcase
otherwise
return nil
endcase
lVScrolled := .t.
endif
return 0
//----------------------------------------------------------------------------//
METHOD HScroll( nWParam, nLParam ) CLASS TScrollPanel
local nScrHandle := nLParam
local nScrollCode := nLoWord( nWParam )
local nPos := nHiWord( nWParam )
lHScrolled := .t.
if GetFocus() != ::hWnd
SetFocus( ::hWnd )
endif
if nScrHandle == 0 .and. ::oHScroll != nil
do case
case nScrollCode == SB_LINELEFT
::GoLeftPix()
case nScrollCode == SB_LINERIGHT
::GoRightPix()
case nScrollCode == SB_PAGELEFT
::PageLeft()
case nScrollCode == SB_PAGERIGHT
::PageRight()
case nScrollCode == SB_LEFT
::GoLeft()
case nScrollCode == SB_RIGHT
::GoRight()
case nScrollCode == SB_THUMBPOSITION .or. ;
nScrollCode == SB_THUMBTRACK
do case
case nPos == 1
::GoLeft()
case nPos == ::oHScroll:GetRange()[ 2 ]
::GoRight()
otherwise
::GoToHPos( nPos )
endcase
otherwise
return nil
endcase
lHScrolled := .t.
endif
return 0
//----------------------------------------------------------------------------//
METHOD MouseWheel( nKeys, nDelta, nXPos, nYPos ) CLASS TScrollPanel
local aPoint := { nYPos, nXPos }
if !::lDrag
ScreenToClient( ::hWnd, aPoint )
if IsOverWnd( ::hWnd, aPoint[ 1 ], aPoint[ 2 ] )
if lAnd( nKeys, MK_MBUTTON )
if nDelta > 0
::PageUp()
else
::PageDown()
endif
elseif lAnd( nKeys, MK_SHIFT ) // Shift + Mouse wheel para scroll horizontal
if nDelta > 0
::GoLeftPix( WheelScroll() * ::hStep )
else
::GoRightPix( WheelScroll() * ::hStep )
endif
else
if nDelta > 0
::GoUp( WheelScroll() * ::vStep )
else
::GoDown( WheelScroll() * ::vStep )
endif
endif
endif
endif
Return nil
//----------------------------------------------------------------------------//
METHOD NcMouseMove( nHitTestCode, nRow, nCol ) CLASS TScrollPanel
TWindow():NcMouseMove( nHitTestCode, nRow, nCol )
return nil
//----------------------------------------------------------------------------//
METHOD GoToPage( cPage ) CLASS TScrollPanel
local lSuccess := .f.
local nAt
cPage := Upper( AllTrim( cPage ) )
nAt := AScan( ::aPages, { |a| a[ 1 ] == cPage } )
if nAt > 0
::GoToPos( ::aPages[ nAt ][ 2 ] )
lSuccess := .t.
endif
return lSuccess
//----------------------------------------------------------------------------//
METHOD ControlIntoView( oControl ) CLASS TScrollPanel
local nCtrlBottom, nPanelBottom, nCtrlRight, nPanelRight
local lMoved := .f.
// Verificar scroll vertical
if oControl:nTop < 0
::GoUp( -oControl:nTop )
lMoved := .t.
else
nPanelBottom := GetClientRect( ::hWnd )[ 3 ]
nCtrlBottom := oControl:nTop + oControl:nHeight
if nCtrlBottom > nPanelBottom
::GoDown( nCtrlBottom - nPanelBottom )
lMoved := .t.
endif
endif
// Verificar scroll horizontal
if oControl:nLeft < 0
::GoLeftPix( -oControl:nLeft )
lMoved := .t.
else
nPanelRight := GetClientRect( ::hWnd )[ 4 ]
nCtrlRight := oControl:nLeft + oControl:nWidth
if nCtrlRight > nPanelRight
::GoRightPix( nCtrlRight - nPanelRight )
lMoved := .t.
endif
endif
return lMoved
//----------------------------------------------------------------------------//
METHOD Paint() CLASS TScrollPanel
local aInfo, aRect
aInfo := ::DispBegin()
// ::CheckResize()
if ::lTransparent .or. ::nOpacity < 255
aRect := GetClientRect( ::hWnd )
SetBrushOrgEx( ::hDC, -::nLeft, -::nTop )
FillRect( ::hDC, aRect, ::oWnd:oBrush:hBrush )
if ! ::lTransparent
FillRectEx( ::hDC, aRect, nARGB( ::nOpacity, ::nClrPane ) )
endif
else
::PaintBack( ::hDC )
endif
::PaintText()
if ValType( ::bPainted ) == "B"
Eval( ::bPainted, ::hDC, ::cPS, Self )
endif
::DispEnd( aInfo )
return nil
//----------------------------------------------------------------------------//
METHOD AddText( nRow, nCol, nWidth, nHeight, cbText, cPicture, oFont, ;
lTransparent, nClrText, nClrBack, nAlign ) CLASS TScrollPanel
DEFAULT lTransparent := .t., nAlign := 0
AAdd( ::aSays, { { nRow, nCol, nRow + nHeight, nCol + nWidth }, ;
cbText, cPicture, oFont, lTransparent, nClrText, nClrBack, nAlign } )
return Len( ::aSays )
//----------------------------------------------------------------------------//
METHOD PaintText( nItem ) CLASS TScrollPanel
local n, nLen
local oFont, nColor, cText
local aSay
if nItem == nil
nLen := Len( ::aSays )
for n := 1 to nLen
::PaintText( n )
next n
return nil
endif
aSay := ::aSays[ nItem ]
if aSay[ 1 ][ 3 ] < 0 .or. aSay[ 1 ][ 1 ] > ::nHeight
return nil
endif
cText := If( ValType( aSay[ 2 ] ) == 'B', Eval( aSay[ 2 ] ), aSay[ 2 ] )
cText := If( Empty( aSay[ 3 ] ), cValToChar( cText ), Transform( cText, aSay[ 3 ] ) )
oFont := If( Empty( aSay[ 4 ] ), ::oFont, aSay[ 4 ] )
nColor := If( Empty( aSay[ 6 ] ), ::nClrText, aSay[ 6 ] )
oFont:Activate( ::hDC )
SetTextColor( ::hDC, nColor )
n := SetBkMode( ::hDC, 1 ) // TRANSPARENT
DrawTextEx( ::hDC, cText, aSay[ 1 ], aSay[ 8 ] )
SetBkMode( ::hDC, n ) // restore bkmode
oFont:DeActivate( ::hDC )
return nil
//----------------------------------------------------------------------------//
/*
METHOD GotFocus( hCtlLost ) CLASS TScrollPanel
::Super:GotFocus( hCtlLost )
if ! Empty( ::hCtlFocus )
SetFocus( ::hCtlFocus )
else
::hCtlFocus = NextDlgTab( ::hWnd ) // ,::aControls[ 1 ]:hWnd
SetFocus( ::hCtlFocus )
endif
return nil
//----------------------------------------------------------------------------//
METHOD GoNextCtrl( hCtrl ) CLASS TScrollPanel
local nAt, hNext
local nNext := 0
nAt := AScan( ::aControls, { | o | o:hWnd == hCtrl } )
if nAt > 0
hNext := NextDlgTab( ::hWnd, hCtrl )
nNext := AScan( ::aControls, { |o| o:hWnd == hNext } )
::hCtlFocus := hCtrl
if nNext < nAt .and. Len( ::oWnd:aControls ) > 1
::oWnd:GoNextCtrl( ::hWnd )
else
SetFocus( hNext )
endif
endif
return nil
//----------------------------------------------------------------------------//
METHOD GoPrevCtrl( hCtrl ) CLASS TScrollPanel
local nAt, hPrev
local nPrev := 0
nAt := AScan( ::aControls, { | o | o:hWnd == hCtrl } )
if nAt > 0
hPrev := NextDlgTab( ::hWnd, hCtrl, .t. )
nPrev := AScan( ::aControls, { |o| o:hWnd == hPrev } )
::hCtlFocus := hCtrl
if ( nPrev == 0 .or. nPrev > nAt ) .and. Len( ::oWnd:aControls ) > 1
::oWnd:GoPrevCtrl( ::hWnd )
else
SetFocus( hPrev )
endif
endif
return nil
//----------------------------------------------------------------------------//
*/
/*
METHOD GoPrevCtrl( hCtrl ) CLASS TScrollPanel
local hCtlPrev := NextDlgTab( ::hWnd, hCtrl, .t. )
local oNext, n, cFoldName, nAt
nAt = AScan( ::aControls, { | o | o:hWnd == hCtrl } )
if nAt != 0
nAt := If( nAt > 1, nAt - 1, Len( ::aControls ) )
do while !( oNext := ::aControls[ nAt ] ):WinStyle( WS_TABSTOP ) .or. !oNext:lWhen()
nAt := If( nAt > 1, nAt - 1, Len( ::aControls ) )
enddo
SetFocus( ::aControls[ nAt ]:hWnd )
return nil
endif
return nil
//----------------------------------------------------------------------------//
*/
METHOD HandleGesture( nGesture, nLParam ) CLASS TScrollPanel
static nPrevRow := 0
local aInfo, nRow
if nGesture == GID_PAN
aInfo := GESTUREINFO( nLParam )
if aInfo[ 1 ] == GID_PAN
nRow := aInfo[ 3 ]
if aInfo[ 2 ] == GF_BEGIN
nPrevRow := nRow
else
if nRow > nPrevRow
::GoUp( nRow - nPrevRow )
else
::GoDown( nPrevRow - nRow )
endif
nPrevRow := nRow
endif
return 0
endif
endif
return ::Super:HandleGesture( nGesture, nLParam )
//----------------------------------------------------------------------------//
METHOD cGenPrg( lDlgUnits ) CLASS TScrollPanel
local cSource := ""
local nFactorX, nFactorY
DEFAULT lDlgUnits := .T.
if ::oWnd:IsKindOf( "TDIALOG" )
lDlgUnits := .T.
endif
nFactorX = If( lDlgUnits, 4 / nLoWord( GetDlgBaseUnits() ), 1 )
nFactorY = If( lDlgUnits, 8 / nHiWord( GetDlgBaseUnits() ), 1 )
::CoorsUpdate()
cSource += CRLF + " " + ::cVarName + " := " + ;
"TScrollPanel():New( " + ;
AllTrim( Str( ::nTop * nFactorX ) ) + ", " + ;
AllTrim( Str( ::nLeft * nFactorY ) ) + ", " + ;
AllTrim( Str( ::nBottom * nFactorX ) ) + ", " + ;
AllTrim( Str( ::nRight * nFactorY ) ) + ", " + ;
::oWnd:cVarName + ", .F. ) " + CRLF
cSource += " " + ::cVarName + ":SetRange()" + CRLF + CRLF
if ! Empty( ::aControls )
AEval( ::aControls, { | oCtrl | cSource += oCtrl:cGenPRG( lDlgUnits ) } )
endif
return cSource
//----------------------------------------------------------------------------//## Summary of Changes Made to TScrollPanel ClassHere you have a working example:
### **Overview**
The TScrollPanel class has been enhanced from a vertical-only scrolling panel to a full **2D scrolling panel** that supports both horizontal and vertical scrolling capabilities.
### **New Data Members Added**
**Horizontal Scroll Support:**
- `hStep` - Horizontal scroll step size (default: 20 pixels)
- `oCtrlLeft`, `oCtrlRight` - References to leftmost and rightmost child controls
- `nCtrlLeftLeft`, `nCtrlRightLeft` - Horizontal positioning reference points
- `nHScrollRange` - Horizontal scroll range
- `nOldCol` - Column position for drag scrolling
**Static Variables:**
- `lHScrolled` - Flag to track horizontal scroll events
- `MK_SHIFT` constant (0x0004) - For detecting Shift key in mouse events
### **New Methods and Properties**
**Access Properties:**
- `nCtrlWd` - Total content width (rightmost control edge)
- `nHPos` - Current horizontal scroll position
**Horizontal Navigation Methods:**
- `hScroll()` - Handles horizontal scrollbar messages
- `hSetPos()` - Sets horizontal scrollbar position
- `GoLeft()`, `GoRight()` - Jump to horizontal start/end
- `GoLeftPix()`, `GoRightPix()` - Move horizontally by pixels
- `GoToHPos()` - Jump to specific horizontal position
- `PageLeft()`, `PageRight()` - Page-wise horizontal movement
### **Enhanced Existing Methods**
**ScrollBy() Method:**
- **Before**: `ScrollBy(nPix)` - vertical only
- **After**: `ScrollBy(nPixV, nPixH)` - supports both vertical and horizontal scrolling
**SetRange() Method:**
- Now calculates both vertical and horizontal content boundaries
- Identifies leftmost and rightmost controls
- Sets up both vertical and horizontal scrollbar ranges
**MouseWheel() Method:**
- **Standard wheel**: Vertical scrolling (unchanged)
- **Shift + wheel**: NEW - Horizontal scrolling
- **Middle button + wheel**: Page scrolling (unchanged)
**Mouse Drag Scrolling:**
- Enhanced to support **2D dragging** (both X and Y axes)
- Tracks both `nOldRow` and `nOldCol` for smooth 2D navigation
**ControlIntoView() Method:**
- Now ensures controls are visible both vertically AND horizontally
- Automatically scrolls in both directions when controls receive focus
### **Window Style Updates**
- Added `WS_HSCROLL` flag to window style
- Created horizontal scrollbar (`oHScroll`) alongside existing vertical scrollbar
### **Key Features Summary**
✅ **Full 2D Scrolling**: Both horizontal and vertical scroll support
✅ **Drag Scrolling**: Click and drag in any direction
✅ **Keyboard Navigation**: Shift + mouse wheel for horizontal scrolling
✅ **Auto-Navigation**: Controls automatically scroll into view when focused
✅ **Dual Scrollbars**: Independent horizontal and vertical scrollbars
✅ **Backward Compatibility**: All existing vertical-only functionality preserved
### **Usage Impact**
The enhanced TScrollPanel is now perfect for containing wide content like charts, large forms, or any control that exceeds the visible area in both dimensions. The graph example with 36 monthly bars can now scroll horizontally to view all data while maintaining vertical scrolling capability.
**Constructor remains the same**: `TScrollPanel():New(nTop, nLeft, nBottom, nRight, oWnd, lNoBorder)`
**Setup remains simple**: Just call `oScrollPanel:SetRange()` after adding child controls.
#include "Fivewin.ch"
#include "TGraph.ch"
FUNCTION MAIN()
LOCAL oDlg, oGraph, oScrPanel
DEFINE WINDOW oDlg;
SIZE 800, 600;
TITLE "Ejemplo Gráfico de Barras con Scroll Horizontal"
// Crear panel scrolleable usando TScrollPanel
oScrPanel := TScrollPanel():New( 10, 10, 550, 780, oDlg, .F. )
// Gráfico más ancho para acomodar todas las barras
@ 10, 10 GRAPH oGraph OF oScrPanel;
SIZE 1400, 350;
TYPE GRAPH_TYPE_BAR;
YVALUES XGRID YGRID XVALUES LEGENDS
// Configuración de series
oGraph:aSeries = { { "Ventas 2022-2024", CLR_BLUE, GRAPH_TYPE_BAR, .T. } }
// Etiquetas del eje Y (meses y trimestres de varios años)
oGraph:aYVals = { "Ene 2022", "Feb 2022", "Mar 2022", "Abr 2022", "May 2022", "Jun 2022",;
"Jul 2022", "Ago 2022", "Sep 2022", "Oct 2022", "Nov 2022", "Dic 2022",;
"Ene 2023", "Feb 2023", "Mar 2023", "Abr 2023", "May 2023", "Jun 2023",;
"Jul 2023", "Ago 2023", "Sep 2023", "Oct 2023", "Nov 2023", "Dic 2023",;
"Ene 2024", "Feb 2024", "Mar 2024", "Abr 2024", "May 2024", "Jun 2024",;
"Jul 2024", "Ago 2024", "Sep 2024", "Oct 2024", "Nov 2024", "Dic 2024" }
// Datos del gráfico (valores de ventas de 3 años - 36 barras)
oGraph:aData = { { 15000, 18500, 22000, 19500, 25000, 28000,;
24000, 26500, 23000, 21000, 19500, 32000,;
16000, 19000, 24000, 21500, 27000, 31000,;
26000, 28500, 25000, 23000, 21500, 35000,;
18000, 21000, 26000, 23500, 29000, 33000,;
28000, 30500, 27000, 25000, 23500, 38000 } }
// Configuración adicional
oGraph:nClrX = CLR_BLACK // Color del eje X
oGraph:nClrY = CLR_BLACK // Color del eje Y
oGraph:l3D = .T. // Activar vista 3D
oGraph:lViewSRLegend = .T. // Mostrar leyenda
// Tooltip personalizado
oGraph:cToolTip = {|oGph,nSerie,nPos,nVal| ;
oGph:aSeries[nSerie][1] + CRLF + ;
oGraph:aYVals[nPos] + ": $" + Transform(nVal, "999,999")}
// IMPORTANTE: Configurar el rango del scroll panel después de crear todos los controles
oScrPanel:SetRange()
ACTIVATE WINDOW oDlg;
CENTER
RETURN NILAntonio Linares wrote: Dear Richard,Dear Antonio,
Using vscode + Copilot Agent and the techniques that we are going to review in the webinar, here you have a modified FWH Class TScrollPanel that supports horizontal scrolling:
scrlpanl.prg/* * * ScrlPanl.prg * Author: GNRao,India + enhancements by Copilot Agent * 08-07-2009 08:48 PM * */ #include "FiveWin.Ch" #define GWL_STYLE -16 #define GWL_EXSTYLE -20 #define CS_DBLCLKS 8 #define MK_MBUTTON 0x0010 #define MK_SHIFT 0x0004 static lVScrolled := .f. static lHScrolled := .f. //------------------------------------------------------------------// CLASS TScrollPanel FROM TPanel CLASSDATA lRegistered AS LOGICAL DATA aPages INIT Array( 0 ) DATA vStep INIT 20 DATA hStep INIT 20 DATA oCtrlTop DATA oCtrlBot DATA nCtrlTopTop DATA nCtrlBotTop // Horizontal scroll support DATA oCtrlLeft DATA oCtrlRight DATA nCtrlLeftLeft DATA nCtrlRightLeft // Margins to be left from right & bottom of Parent window when resized DATA nRightMargin INIT 0 DATA nBottomMargin INIT 0 DATA nScrollRange DATA nHScrollRange DATA aSays INIT Array( 0 ) // Scroll By Drag DATA DATA lScrollDrag INIT .f. DATA nOldRow INIT 0 DATA nOldCol INIT 0 // METHOD New( nTop, nLeft, nBottom, nRight, oWnd, lNoBorder ) CONSTRUCTOR METHOD Resize( nSizeType, nWidth, nHeight ) METHOD CheckResize() ACCESS nCtrlHt INLINE ( ::oCtrlBot:nTop + ::oCtrlBot:nHeight - ::oCtrlTop:nTop ) ACCESS nCtrlWd INLINE ( ::oCtrlRight:nLeft + ::oCtrlRight:nWidth - ::oCtrlLeft:nLeft ) ACCESS nPos INLINE Max(1, ( ::nCtrlTopTop - ::oCtrlTop:nTop ) ) ACCESS nHPos INLINE Max(1, ( ::nCtrlLeftLeft - ::oCtrlLeft:nLeft ) ) METHOD vScroll( nWParam, nLParam ) METHOD hScroll( nWParam, nLParam ) METHOD vSetPos() METHOD hSetPos() METHOD MouseWheel( nKeys, nDelta, nXPos, nYPos ) METHOD GoTop() INLINE ( ::ScrollBy( ::nCtrlTopTop - ::oCtrlTop:nTop, 0 ), ::oVScroll:SetPos( 1 ) ) METHOD GoBottom() INLINE ( ::ScrollBy( -::oCtrlBot:nTop, 0 ), ::oVScroll:SetPos( ::oVScroll:GetRange()[ 2 ] ) ) METHOD GoLeft() INLINE ( ::ScrollBy( 0, ::nCtrlLeftLeft - ::oCtrlLeft:nLeft ), ::oHScroll:SetPos( 1 ) ) METHOD GoRight() INLINE ( ::ScrollBy( 0, -::oCtrlRight:nLeft ), ::oHScroll:SetPos( ::oHScroll:GetRange()[ 2 ] ) ) METHOD GoUp( nPix ) METHOD GoDown( nPix ) METHOD GoLeftPix( nPix ) METHOD GoRightPix( nPix ) METHOD GoToPos( nPos ) METHOD GoToHPos( nPos ) METHOD PageUp() INLINE ::GoUp( 2 * ::vStep ) METHOD PageDown() INLINE ::GoDown( 2 * ::vStep ) METHOD PageLeft() INLINE ::GoLeftPix( 2 * ::hStep ) METHOD PageRight() INLINE ::GoRightPix( 2 * ::hStep ) METHOD ControlIntoView( oControl ) METHOD SetRange() METHOD ScrollBy( nPixV, nPixH ) METHOD SetPage( cPage, nRow ) INLINE AAdd( ::aPages, { Upper( AllTrim( cPage ) ), nRow } ) METHOD GoToPage( cPage ) METHOD NcMouseMove( nHitTestCode, nRow, nCol ) METHOD Display() INLINE ( ::BeginPaint(), ::Paint(), ::EndPaint(), 0 ) METHOD Paint() METHOD PaintText( nItem ) METHOD AddText( nRow, nCol, nWidth, nHeight, cbText, cPicture, oFont, ; lTransparent, nClrText, nClrBack, nAlign ) // METHOD GotFocus( hCtlLost ) // METHOD GoNextCtrl( hCtrl ) // METHOD GoPrevCtrl( hCtrl ) // Scroll By Drag METHODS METHOD LButtonDown( nRow, nCol, nFlags, lTouch ) INLINE ( ::lScrollDrag := .t., ::nOldRow := nRow, ::nOldCol := nCol, ::Super:LButtonDown( nRow, nCol, nFlags, lTouch ) ) METHOD LButtonUp( nRow, nCol, nFlags ) INLINE ( ::lScrollDrag := .f., ::nOldRow := 0, ::nOldCol := 0, ::Super:LButtonUp( nRow, nCol, nFlags ) ) METHOD MouseMove( nRow, nCol, nFlags ) INLINE ( ; if( !::lDrag, ; ( If( lAnd( nFlags, 1 ), nil, ( ::lScrollDrag := .f., ::nOldRow := 0, ::nOldCol := 0 ) ), ; If( ::lScrollDrag, ( If( nRow > ::nOldRow, ::GoUp( nRow - ::nOldRow ), ::GoDown( ::nOldRow - nRow ) ), ; If( nCol > ::nOldCol, ::GoLeftPix( nCol - ::nOldCol ), ::GoRightPix( ::nOldCol - nCol ) ), ; ::nOldRow := nRow, ::nOldCol := nCol ), nil ) ), ), ; ::Super:MouseMove( nRow, nCol, nFlags ) ) METHOD HandleGesture( nGesture, nLParam ) // METHOD cGenPrg( lDlgUnits ) ENDCLASS //------------------------------------------------------------------// METHOD New( nTop, nLeft, nBottom, nRight, oWnd, lNoBorder ) CLASS TScrollPanel // ::oWnd:bMouseWheel := { | nKeys, nDelta, nXPos, nYPos | ::MouseWheel( nKeys, nDelta, nXPos, nYPos ) } DEFAULT nTop := 0, nLeft := 0, nBottom := 100, nRight := 100,; oWnd := GetWndDefault(), lNoBorder := .f. ::lUnicode = FW_SetUnicode() ::nTop = nTop ::nLeft = nLeft ::nBottom = nBottom ::nRight = nRight ::oWnd = oWnd ::nStyle = nOr( WS_CHILD, WS_VSCROLL, WS_HSCROLL,; WS_VISIBLE, WS_TABSTOP, WS_CLIPCHILDREN ) ::lDrag = .F. ::nClrPane = CLR_WHITE //GetSysColor( COLOR_BTNFACE ) if ! lNoBorder ::nStyle := nOr( ::nStyle, WS_BORDER ) endif ::Register( nOr( CS_VREDRAW, CS_HREDRAW, CS_DBLCLKS ) ) if ! Empty( ::oWnd:hWnd ) ::Create() ::oWnd:AddControl( Self ) if ::oWnd:oBrush != nil ::SetBrush( ::oWnd:oBrush ) endif else ::oWnd:DefControl( Self ) endif DEFINE SCROLLBAR ::oVScroll VERTICAL OF Self RANGE 1,2 DEFINE SCROLLBAR ::oHScroll HORIZONTAL OF Self RANGE 1,2 ::oWnd:OnResize := { || ::CheckResize() } RETURN Self //------------------------------------------------------------------// METHOD ReSize( nSizeType, nWidth, nHeight ) CLASS TScrollPanel if !::lDrag ::vSetPos() // nHeight ) endif return ::Super:ReSize( nSizeType, nWidth, nHeight ) //------------------------------------------------------------------// METHOD CheckResize() CLASS TScrollPanel local aRect := GetClientRect( ::oWnd:hWnd ) local nHeight, nWidth if ::nBottomMargin > 0 .or. ::nRightMargin > 0 if ::oWnd:oBottom != nil aRect[ 3 ] -= ::oWnd:oBottom:nHeight elseif ::oWnd:oMsgBar != nil aRect[ 3 ] -= ::oWnd:oMsgBar:nHeight endif nHeight := aRect[ 3 ] - aRect[ 1 ] - ::nTop - ::nBottomMargin //- 28 nWidth := aRect[ 4 ] - aRect[ 2 ] - ::nLeft - ::nRightMargin if nHeight != ::nHeight .or. nWidth != ::nWidth if ::nBottomMargin > 0 ::nHeight := nHeight endif if ::nRightMargin > 0 ::nWidth := nWidth endif endif endif return nil //----------------------------------------------------------------------------// METHOD SetRange() CLASS TScrollPanel local oTop, oBot, oLeft, oRight, oCtrl, nTop, nBot, nLeft, nRight if Len( ::aControls ) > 0 oTop := oBot := oLeft := oRight := ::aControls[ 1 ] nTop := oTop:nTop nBot := oBot:nTop + oBot:nHeight nLeft := oLeft:nLeft nRight := oRight:nLeft + oRight:nWidth for each oCtrl in ::aControls if oCtrl:nTop < nTop oTop := oCtrl nTop := oTop:nTop endif if oCtrl:nTop + oCtrl:nHeight > nBot oBot := oCtrl nBot := oBot:nTop + oBot:nHeight endif if oCtrl:nLeft < nLeft oLeft := oCtrl nLeft := oLeft:nLeft endif if oCtrl:nLeft + oCtrl:nWidth > nRight oRight := oCtrl nRight := oRight:nLeft + oRight:nWidth endif if lAnd( GetWindowLong( oCtrl:hWnd, GWL_STYLE ), WS_TABSTOP ) .and. ; ! oCtrl:IsKindOf( "TCOMBOBOX" ) oCtrl:bGotFocus := { |o| If( lVScrolled,,::ControlIntoView( o )), lVScrolled := .f. } endif next ::oCtrlTop := oTop ::oCtrlBot := oBot ::oCtrlLeft := oLeft ::oCtrlRight := oRight ::nCtrlTopTop := ::oCtrlTop:nTop ::nCtrlBotTop := ::oCtrlBot:nTop ::nCtrlLeftLeft := ::oCtrlLeft:nLeft ::nCtrlRightLeft := ::oCtrlRight:nLeft ::nScrollRange := ::nCtrlBotTop ::nHScrollRange := ::nCtrlRightLeft ::oVScroll:SetRange( 1, ::nScrollRange ) ::oHScroll:SetRange( 1, ::nHScrollRange ) ::vSetPos() ::hSetPos() endif return Self //----------------------------------------------------------------------------// METHOD vSetPos() CLASS TScrollPanel ::oVScroll:SetPos( Max( 1, ::nCtrlTopTop - ::oCtrlTop:nTop ) ) return Self //----------------------------------------------------------------------------// METHOD hSetPos() CLASS TScrollPanel ::oHScroll:SetPos( Max( 1, ::nCtrlLeftLeft - ::oCtrlLeft:nLeft ) ) return Self //------------------------------------------------------------------// METHOD ScrollBy( nPixV, nPixH ) CLASS TScrollPanel DEFAULT nPixV := 0, nPixH := 0 if ! Empty( nPixV ) .or. ! Empty( nPixH ) if ! Empty( ::aSays ) if ! Empty( nPixV ) AEval( ::aSays, { |a| a[ 1 ][ 1 ] += nPixV, a[ 1 ][ 3 ] += nPixV } ) endif if ! Empty( nPixH ) AEval( ::aSays, { |a| a[ 1 ][ 2 ] += nPixH, a[ 1 ][ 4 ] += nPixH } ) endif ::Refresh() endif ScrollWindow( ::hWnd, nPixH, nPixV, 0, GetClientRect( ::hWnd ) ) endif return nil //----------------------------------------------------------------------------// METHOD GoUp( nPix ) CLASS TScrollPanel DEFAULT nPix := ::vStep nPix := Min( nPix, ::nCtrlTopTop - ::oCtrlTop:nTop ) if nPix > 0 ::ScrollBy( nPix, 0 ) ::oVScroll:SetPos( ::nPos ) endif return Self //------------------------------------------------------------------// METHOD GoDown( nPix ) CLASS TScrollPanel DEFAULT nPix := ::vStep nPix := Min( nPix, ::oCtrlBot:nTop ) if nPix > 0 ::ScrollBy( -nPix, 0 ) ::oVScroll:SetPos( ::nPos ) endif return Self //------------------------------------------------------------------// METHOD GoLeftPix( nPix ) CLASS TScrollPanel DEFAULT nPix := ::hStep nPix := Min( nPix, ::nCtrlLeftLeft - ::oCtrlLeft:nLeft ) if nPix > 0 ::ScrollBy( 0, nPix ) ::oHScroll:SetPos( ::nHPos ) endif return Self //------------------------------------------------------------------// METHOD GoRightPix( nPix ) CLASS TScrollPanel DEFAULT nPix := ::hStep nPix := Min( nPix, ::oCtrlRight:nLeft ) if nPix > 0 ::ScrollBy( 0, -nPix ) ::oHScroll:SetPos( ::nHPos ) endif return Self //------------------------------------------------------------------// METHOD GoToPos( nPos ) CLASS TScrollPanel local nPix nPix := ::nCtrlTopTop - nPos - ::oCtrlTop:nTop if nPix != 0 ::ScrollBy( nPix, 0 ) ::oVScroll:SetPos( ::nPos ) endif return Self //------------------------------------------------------------------// METHOD GoToHPos( nPos ) CLASS TScrollPanel local nPix nPix := ::nCtrlLeftLeft - nPos - ::oCtrlLeft:nLeft if nPix != 0 ::ScrollBy( 0, nPix ) ::oHScroll:SetPos( ::nHPos ) endif return Self //------------------------------------------------------------------// METHOD VScroll( nWParam, nLParam ) CLASS TScrollPanel local nScrHandle := nLParam local nScrollCode := nLoWord( nWParam ) local nPos := nHiWord( nWParam ) lVScrolled := .t. if GetFocus() != ::hWnd SetFocus( ::hWnd ) endif if nScrHandle == 0 .and. ::oVScroll != nil do case case nScrollCode == SB_LINEUP ::GoUp() case nScrollCode == SB_LINEDOWN ::GoDown() case nScrollCode == SB_PAGEUP ::PageUp() case nScrollCode == SB_PAGEDOWN ::PageDown() case nScrollCode == SB_TOP ::GoTop() case nScrollCode == SB_BOTTOM ::GoBottom() case nScrollCode == SB_THUMBPOSITION .or. ; nScrollCode == SB_THUMBTRACK do case case nPos == 1 ::GoTop() case nPos == ::oVScroll:GetRange()[ 2 ] ::GoBottom() otherwise ::GoToPos( nPos ) endcase otherwise return nil endcase lVScrolled := .t. endif return 0 //----------------------------------------------------------------------------// METHOD HScroll( nWParam, nLParam ) CLASS TScrollPanel local nScrHandle := nLParam local nScrollCode := nLoWord( nWParam ) local nPos := nHiWord( nWParam ) lHScrolled := .t. if GetFocus() != ::hWnd SetFocus( ::hWnd ) endif if nScrHandle == 0 .and. ::oHScroll != nil do case case nScrollCode == SB_LINELEFT ::GoLeftPix() case nScrollCode == SB_LINERIGHT ::GoRightPix() case nScrollCode == SB_PAGELEFT ::PageLeft() case nScrollCode == SB_PAGERIGHT ::PageRight() case nScrollCode == SB_LEFT ::GoLeft() case nScrollCode == SB_RIGHT ::GoRight() case nScrollCode == SB_THUMBPOSITION .or. ; nScrollCode == SB_THUMBTRACK do case case nPos == 1 ::GoLeft() case nPos == ::oHScroll:GetRange()[ 2 ] ::GoRight() otherwise ::GoToHPos( nPos ) endcase otherwise return nil endcase lHScrolled := .t. endif return 0 //----------------------------------------------------------------------------// METHOD MouseWheel( nKeys, nDelta, nXPos, nYPos ) CLASS TScrollPanel local aPoint := { nYPos, nXPos } if !::lDrag ScreenToClient( ::hWnd, aPoint ) if IsOverWnd( ::hWnd, aPoint[ 1 ], aPoint[ 2 ] ) if lAnd( nKeys, MK_MBUTTON ) if nDelta > 0 ::PageUp() else ::PageDown() endif elseif lAnd( nKeys, MK_SHIFT ) // Shift + Mouse wheel para scroll horizontal if nDelta > 0 ::GoLeftPix( WheelScroll() * ::hStep ) else ::GoRightPix( WheelScroll() * ::hStep ) endif else if nDelta > 0 ::GoUp( WheelScroll() * ::vStep ) else ::GoDown( WheelScroll() * ::vStep ) endif endif endif endif Return nil //----------------------------------------------------------------------------// METHOD NcMouseMove( nHitTestCode, nRow, nCol ) CLASS TScrollPanel TWindow():NcMouseMove( nHitTestCode, nRow, nCol ) return nil //----------------------------------------------------------------------------// METHOD GoToPage( cPage ) CLASS TScrollPanel local lSuccess := .f. local nAt cPage := Upper( AllTrim( cPage ) ) nAt := AScan( ::aPages, { |a| a[ 1 ] == cPage } ) if nAt > 0 ::GoToPos( ::aPages[ nAt ][ 2 ] ) lSuccess := .t. endif return lSuccess //----------------------------------------------------------------------------// METHOD ControlIntoView( oControl ) CLASS TScrollPanel local nCtrlBottom, nPanelBottom, nCtrlRight, nPanelRight local lMoved := .f. // Verificar scroll vertical if oControl:nTop < 0 ::GoUp( -oControl:nTop ) lMoved := .t. else nPanelBottom := GetClientRect( ::hWnd )[ 3 ] nCtrlBottom := oControl:nTop + oControl:nHeight if nCtrlBottom > nPanelBottom ::GoDown( nCtrlBottom - nPanelBottom ) lMoved := .t. endif endif // Verificar scroll horizontal if oControl:nLeft < 0 ::GoLeftPix( -oControl:nLeft ) lMoved := .t. else nPanelRight := GetClientRect( ::hWnd )[ 4 ] nCtrlRight := oControl:nLeft + oControl:nWidth if nCtrlRight > nPanelRight ::GoRightPix( nCtrlRight - nPanelRight ) lMoved := .t. endif endif return lMoved //----------------------------------------------------------------------------// METHOD Paint() CLASS TScrollPanel local aInfo, aRect aInfo := ::DispBegin() // ::CheckResize() if ::lTransparent .or. ::nOpacity < 255 aRect := GetClientRect( ::hWnd ) SetBrushOrgEx( ::hDC, -::nLeft, -::nTop ) FillRect( ::hDC, aRect, ::oWnd:oBrush:hBrush ) if ! ::lTransparent FillRectEx( ::hDC, aRect, nARGB( ::nOpacity, ::nClrPane ) ) endif else ::PaintBack( ::hDC ) endif ::PaintText() if ValType( ::bPainted ) == "B" Eval( ::bPainted, ::hDC, ::cPS, Self ) endif ::DispEnd( aInfo ) return nil //----------------------------------------------------------------------------// METHOD AddText( nRow, nCol, nWidth, nHeight, cbText, cPicture, oFont, ; lTransparent, nClrText, nClrBack, nAlign ) CLASS TScrollPanel DEFAULT lTransparent := .t., nAlign := 0 AAdd( ::aSays, { { nRow, nCol, nRow + nHeight, nCol + nWidth }, ; cbText, cPicture, oFont, lTransparent, nClrText, nClrBack, nAlign } ) return Len( ::aSays ) //----------------------------------------------------------------------------// METHOD PaintText( nItem ) CLASS TScrollPanel local n, nLen local oFont, nColor, cText local aSay if nItem == nil nLen := Len( ::aSays ) for n := 1 to nLen ::PaintText( n ) next n return nil endif aSay := ::aSays[ nItem ] if aSay[ 1 ][ 3 ] < 0 .or. aSay[ 1 ][ 1 ] > ::nHeight return nil endif cText := If( ValType( aSay[ 2 ] ) == 'B', Eval( aSay[ 2 ] ), aSay[ 2 ] ) cText := If( Empty( aSay[ 3 ] ), cValToChar( cText ), Transform( cText, aSay[ 3 ] ) ) oFont := If( Empty( aSay[ 4 ] ), ::oFont, aSay[ 4 ] ) nColor := If( Empty( aSay[ 6 ] ), ::nClrText, aSay[ 6 ] ) oFont:Activate( ::hDC ) SetTextColor( ::hDC, nColor ) n := SetBkMode( ::hDC, 1 ) // TRANSPARENT DrawTextEx( ::hDC, cText, aSay[ 1 ], aSay[ 8 ] ) SetBkMode( ::hDC, n ) // restore bkmode oFont:DeActivate( ::hDC ) return nil //----------------------------------------------------------------------------// /* METHOD GotFocus( hCtlLost ) CLASS TScrollPanel ::Super:GotFocus( hCtlLost ) if ! Empty( ::hCtlFocus ) SetFocus( ::hCtlFocus ) else ::hCtlFocus = NextDlgTab( ::hWnd ) // ,::aControls[ 1 ]:hWnd SetFocus( ::hCtlFocus ) endif return nil //----------------------------------------------------------------------------// METHOD GoNextCtrl( hCtrl ) CLASS TScrollPanel local nAt, hNext local nNext := 0 nAt := AScan( ::aControls, { | o | o:hWnd == hCtrl } ) if nAt > 0 hNext := NextDlgTab( ::hWnd, hCtrl ) nNext := AScan( ::aControls, { |o| o:hWnd == hNext } ) ::hCtlFocus := hCtrl if nNext < nAt .and. Len( ::oWnd:aControls ) > 1 ::oWnd:GoNextCtrl( ::hWnd ) else SetFocus( hNext ) endif endif return nil //----------------------------------------------------------------------------// METHOD GoPrevCtrl( hCtrl ) CLASS TScrollPanel local nAt, hPrev local nPrev := 0 nAt := AScan( ::aControls, { | o | o:hWnd == hCtrl } ) if nAt > 0 hPrev := NextDlgTab( ::hWnd, hCtrl, .t. ) nPrev := AScan( ::aControls, { |o| o:hWnd == hPrev } ) ::hCtlFocus := hCtrl if ( nPrev == 0 .or. nPrev > nAt ) .and. Len( ::oWnd:aControls ) > 1 ::oWnd:GoPrevCtrl( ::hWnd ) else SetFocus( hPrev ) endif endif return nil //----------------------------------------------------------------------------// */ /* METHOD GoPrevCtrl( hCtrl ) CLASS TScrollPanel local hCtlPrev := NextDlgTab( ::hWnd, hCtrl, .t. ) local oNext, n, cFoldName, nAt nAt = AScan( ::aControls, { | o | o:hWnd == hCtrl } ) if nAt != 0 nAt := If( nAt > 1, nAt - 1, Len( ::aControls ) ) do while !( oNext := ::aControls[ nAt ] ):WinStyle( WS_TABSTOP ) .or. !oNext:lWhen() nAt := If( nAt > 1, nAt - 1, Len( ::aControls ) ) enddo SetFocus( ::aControls[ nAt ]:hWnd ) return nil endif return nil //----------------------------------------------------------------------------// */ METHOD HandleGesture( nGesture, nLParam ) CLASS TScrollPanel static nPrevRow := 0 local aInfo, nRow if nGesture == GID_PAN aInfo := GESTUREINFO( nLParam ) if aInfo[ 1 ] == GID_PAN nRow := aInfo[ 3 ] if aInfo[ 2 ] == GF_BEGIN nPrevRow := nRow else if nRow > nPrevRow ::GoUp( nRow - nPrevRow ) else ::GoDown( nPrevRow - nRow ) endif nPrevRow := nRow endif return 0 endif endif return ::Super:HandleGesture( nGesture, nLParam ) //----------------------------------------------------------------------------// METHOD cGenPrg( lDlgUnits ) CLASS TScrollPanel local cSource := "" local nFactorX, nFactorY DEFAULT lDlgUnits := .T. if ::oWnd:IsKindOf( "TDIALOG" ) lDlgUnits := .T. endif nFactorX = If( lDlgUnits, 4 / nLoWord( GetDlgBaseUnits() ), 1 ) nFactorY = If( lDlgUnits, 8 / nHiWord( GetDlgBaseUnits() ), 1 ) ::CoorsUpdate() cSource += CRLF + " " + ::cVarName + " := " + ; "TScrollPanel():New( " + ; AllTrim( Str( ::nTop * nFactorX ) ) + ", " + ; AllTrim( Str( ::nLeft * nFactorY ) ) + ", " + ; AllTrim( Str( ::nBottom * nFactorX ) ) + ", " + ; AllTrim( Str( ::nRight * nFactorY ) ) + ", " + ; ::oWnd:cVarName + ", .F. ) " + CRLF cSource += " " + ::cVarName + ":SetRange()" + CRLF + CRLF if ! Empty( ::aControls ) AEval( ::aControls, { | oCtrl | cSource += oCtrl:cGenPRG( lDlgUnits ) } ) endif return cSource //----------------------------------------------------------------------------//## Summary of Changes Made to TScrollPanel ClassHere you have a working example:
### **Overview**
The TScrollPanel class has been enhanced from a vertical-only scrolling panel to a full **2D scrolling panel** that supports both horizontal and vertical scrolling capabilities.
### **New Data Members Added**
**Horizontal Scroll Support:**
- `hStep` - Horizontal scroll step size (default: 20 pixels)
- `oCtrlLeft`, `oCtrlRight` - References to leftmost and rightmost child controls
- `nCtrlLeftLeft`, `nCtrlRightLeft` - Horizontal positioning reference points
- `nHScrollRange` - Horizontal scroll range
- `nOldCol` - Column position for drag scrolling
**Static Variables:**
- `lHScrolled` - Flag to track horizontal scroll events
- `MK_SHIFT` constant (0x0004) - For detecting Shift key in mouse events
### **New Methods and Properties**
**Access Properties:**
- `nCtrlWd` - Total content width (rightmost control edge)
- `nHPos` - Current horizontal scroll position
**Horizontal Navigation Methods:**
- `hScroll()` - Handles horizontal scrollbar messages
- `hSetPos()` - Sets horizontal scrollbar position
- `GoLeft()`, `GoRight()` - Jump to horizontal start/end
- `GoLeftPix()`, `GoRightPix()` - Move horizontally by pixels
- `GoToHPos()` - Jump to specific horizontal position
- `PageLeft()`, `PageRight()` - Page-wise horizontal movement
### **Enhanced Existing Methods**
**ScrollBy() Method:**
- **Before**: `ScrollBy(nPix)` - vertical only
- **After**: `ScrollBy(nPixV, nPixH)` - supports both vertical and horizontal scrolling
**SetRange() Method:**
- Now calculates both vertical and horizontal content boundaries
- Identifies leftmost and rightmost controls
- Sets up both vertical and horizontal scrollbar ranges
**MouseWheel() Method:**
- **Standard wheel**: Vertical scrolling (unchanged)
- **Shift + wheel**: NEW - Horizontal scrolling
- **Middle button + wheel**: Page scrolling (unchanged)
**Mouse Drag Scrolling:**
- Enhanced to support **2D dragging** (both X and Y axes)
- Tracks both `nOldRow` and `nOldCol` for smooth 2D navigation
**ControlIntoView() Method:**
- Now ensures controls are visible both vertically AND horizontally
- Automatically scrolls in both directions when controls receive focus
### **Window Style Updates**
- Added `WS_HSCROLL` flag to window style
- Created horizontal scrollbar (`oHScroll`) alongside existing vertical scrollbar
### **Key Features Summary**
✅ **Full 2D Scrolling**: Both horizontal and vertical scroll support
✅ **Drag Scrolling**: Click and drag in any direction
✅ **Keyboard Navigation**: Shift + mouse wheel for horizontal scrolling
✅ **Auto-Navigation**: Controls automatically scroll into view when focused
✅ **Dual Scrollbars**: Independent horizontal and vertical scrollbars
✅ **Backward Compatibility**: All existing vertical-only functionality preserved
### **Usage Impact**
The enhanced TScrollPanel is now perfect for containing wide content like charts, large forms, or any control that exceeds the visible area in both dimensions. The graph example with 36 monthly bars can now scroll horizontally to view all data while maintaining vertical scrolling capability.
**Constructor remains the same**: `TScrollPanel():New(nTop, nLeft, nBottom, nRight, oWnd, lNoBorder)`
**Setup remains simple**: Just call `oScrollPanel:SetRange()` after adding child controls.
graphscr.prgI do appreciate your tests and feedback :idea: :!:#include "Fivewin.ch" #include "TGraph.ch" FUNCTION MAIN() LOCAL oDlg, oGraph, oScrPanel DEFINE WINDOW oDlg; SIZE 800, 600; TITLE "Ejemplo Gráfico de Barras con Scroll Horizontal" // Crear panel scrolleable usando TScrollPanel oScrPanel := TScrollPanel():New( 10, 10, 550, 780, oDlg, .F. ) // Gráfico más ancho para acomodar todas las barras @ 10, 10 GRAPH oGraph OF oScrPanel; SIZE 1400, 350; TYPE GRAPH_TYPE_BAR; YVALUES XGRID YGRID XVALUES LEGENDS // Configuración de series oGraph:aSeries = { { "Ventas 2022-2024", CLR_BLUE, GRAPH_TYPE_BAR, .T. } } // Etiquetas del eje Y (meses y trimestres de varios años) oGraph:aYVals = { "Ene 2022", "Feb 2022", "Mar 2022", "Abr 2022", "May 2022", "Jun 2022",; "Jul 2022", "Ago 2022", "Sep 2022", "Oct 2022", "Nov 2022", "Dic 2022",; "Ene 2023", "Feb 2023", "Mar 2023", "Abr 2023", "May 2023", "Jun 2023",; "Jul 2023", "Ago 2023", "Sep 2023", "Oct 2023", "Nov 2023", "Dic 2023",; "Ene 2024", "Feb 2024", "Mar 2024", "Abr 2024", "May 2024", "Jun 2024",; "Jul 2024", "Ago 2024", "Sep 2024", "Oct 2024", "Nov 2024", "Dic 2024" } // Datos del gráfico (valores de ventas de 3 años - 36 barras) oGraph:aData = { { 15000, 18500, 22000, 19500, 25000, 28000,; 24000, 26500, 23000, 21000, 19500, 32000,; 16000, 19000, 24000, 21500, 27000, 31000,; 26000, 28500, 25000, 23000, 21500, 35000,; 18000, 21000, 26000, 23500, 29000, 33000,; 28000, 30500, 27000, 25000, 23500, 38000 } } // Configuración adicional oGraph:nClrX = CLR_BLACK // Color del eje X oGraph:nClrY = CLR_BLACK // Color del eje Y oGraph:l3D = .T. // Activar vista 3D oGraph:lViewSRLegend = .T. // Mostrar leyenda // Tooltip personalizado oGraph:cToolTip = {|oGph,nSerie,nPos,nVal| ; oGph:aSeries[nSerie][1] + CRLF + ; oGraph:aYVals[nPos] + ": $" + Transform(nVal, "999,999")} // IMPORTANTE: Configurar el rango del scroll panel después de crear todos los controles oScrPanel:SetRange() ACTIVATE WINDOW oDlg; CENTER RETURN NIL
Yes, right.
There you have the horizontal scrolling effect.
Is that what you were looking for ?
Antonio Linares wrote: Yes, right.Dear Antonio,
There you have the horizontal scrolling effect.
Is that what you were looking for ?
Dear Richard,
It seems as what you are looking for can't be achieved with a TScollPanel object and we need to implement horizontal scrolling capabilites into Class TGraph itself.
Working into this
