LOCAL aButtonsMdi:={}

ON PAINT aButtonsMdi:=ACT_BOT_MODULOS(oBar22,aButtonsMdi)

#include "Fivewin.ch"
#include "xbrowse.ch"


STATIC oWnd
STATIC oMenu
STATIC cRuta := "C:\DEUMARE\ICONS\"    // pon aquí una tu ruta, si quieres para tus iconos, imagenes

STATIC lBarAllwaysTop := .t.           // only for test purpose. if .t. show all bars on top
STATIC lImageSelect   := .f.           // only for test purpose. if .t. show red or green dot


function Main()

LOCAL oFont, oIco, oBar


   DEFINE FONT oFont  NAME "Segoe UI Light" SIZE 0,-12
   DEFINE ICON oIco FILE cRuta+"DM_ICON2.ICO"
   DEFINE WINDOW oWnd MDI TITLE "Test BarMdi" ICON oIco

   ACTIVATE WINDOW oWnd ON INIT ( oWnd:oMenu:End(), oWnd:oMenu:=NIL, Child() )  MAXIMIZED

oFont:End()
RETURN(NIL)

//-----------------------------------------------------------------------------

function BuildMenu()

local oMenu2


   MENU oMenu2 POPUP
      MENUITEM "&Salir" ACTION oWnd:End()
      SEPARATOR
      MENUITEM "&Clientes"    ACTION IF( Activa_MDI("Clientes")   , ,Modulo_clientes() )
      MENUITEM "&Proveedores" ACTION IF( Activa_MDI("Proveedores"), ,Modulo_proveedores() )
      MENUITEM "&Artículos"   ACTION IF( Activa_MDI("Artículos")  , ,Modulo_articulos() )
   ENDMENU

RETURN(oMenu2)

//------------------------------------------------------------------------------

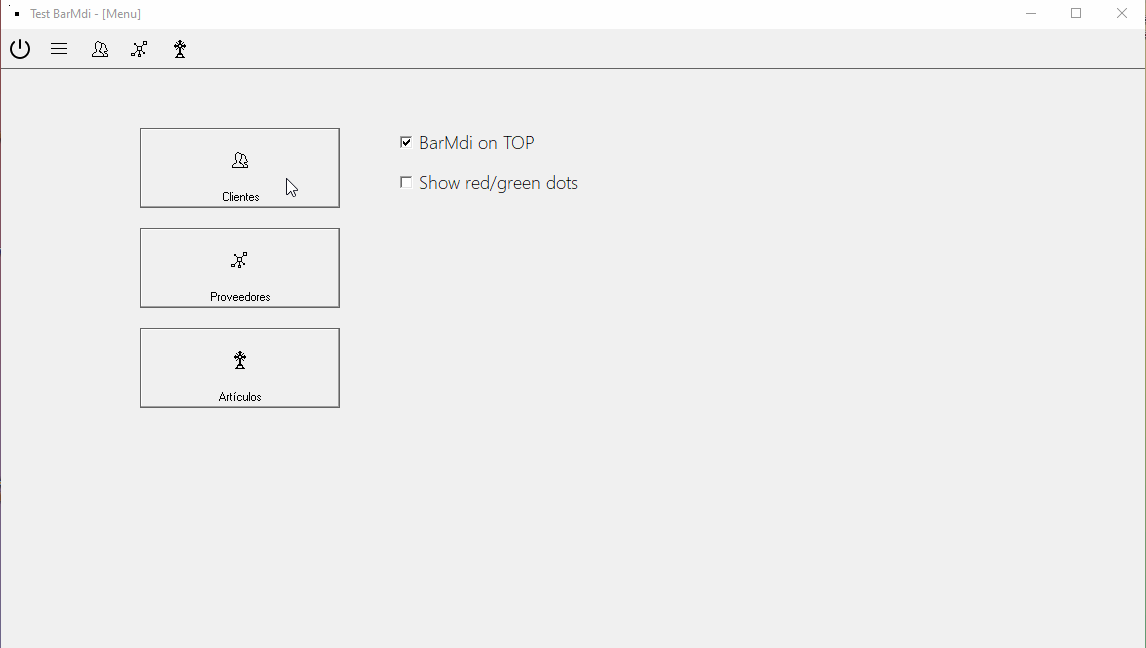

STATIC FUNCTION CHILD()

LOCAL oWnd2, oBar, oBar2
LOCAL aBotones:=ARRAY(2)
LOCAL oFont
LOCAL oCheck1, oCheck2

oMenu:=BuildMenu()

DEFINE FONT oFont NAME "Segoe UI Light" SIZE 0,-18
DEFINE WINDOW oWnd2 MDICHILD OF oWnd TITLE "Menu" COLOR CLR_BLACK, RGB(240,240,240)
  DEFINE BUTTONBAR oBar OF oWnd2 BUTTONSIZE 40,40
      oBar:SetColor(CLR_BLACK, RGB(240,240,240))
      oBar:bRClicked := {|| nil }

      @01,000 BTNBMP aBotones[1] FILE cRuta+"POWER-OFF.BMP" SIZE 40,40 OF oBar UPDATE NOBORDER ACTION oWnd:End()
         aBotones[1]:cToolTip=CRLF+"   Salir   "+CRLF+" "
      @01,040 BTNBMP aBotones[2] FILE cRuta+"W10_MENU.BMP" SIZE 40,40 OF oBar UPDATE NOBORDER ACTION oMenu:Activate(40,41,oBar,.f.)
         aBotones[2]:cToolTip=CRLF+"   Menú principal   "+CRLF+" "

      @01,080 BTNBMP FILE cRuta+"W10_CLIENTES.BMP"  SIZE 40,40 OF oBar UPDATE NOBORDER ACTION IF( Activa_MDI("Clientes")    , ,Modulo_clientes() )
      @01,120 BTNBMP FILE cRuta+"W10_PROVE.BMP"     SIZE 40,40 OF oBar UPDATE NOBORDER ACTION IF( Activa_MDI("Proveedores") , ,Modulo_proveedores() )
      @01,160 BTNBMP FILE cRuta+"W10_ARTICUL.BMP"   SIZE 40,40 OF oBar UPDATE NOBORDER ACTION IF( Activa_MDI("Artículos")   , ,Modulo_articulos() )


      @100,140 BTNBMP FILE cRuta+"W10_CLIENTES.BMP"  PROMPT "Clientes"    SIZE 200,80 OF oWnd2 UPDATE TOP ACTION IF( Activa_MDI("Clientes")    , ,Modulo_clientes() )
      @200,140 BTNBMP FILE cRuta+"W10_PROVE.BMP"     PROMPT "Proveedores" SIZE 200,80 OF oWnd2 UPDATE TOP ACTION IF( Activa_MDI("Proveedores") , ,Modulo_proveedores() )
      @300,140 BTNBMP FILE cRuta+"W10_ARTICUL.BMP"   PROMPT "Artículos"   SIZE 200,80 OF oWnd2 UPDATE TOP ACTION IF( Activa_MDI("Artículos")   , ,Modulo_articulos() )


   @ 100,400 CHECKBOX oCheck1 VAR lBarAllwaysTop PROMPT "BarMdi on TOP" OF oWnd2 FONT oFont SIZE 200,28 PIXEL
   @ 140,400 CHECKBOX oCheck2 VAR lImageSelect   PROMPT "Show red/green dots" OF oWnd2 FONT oFont SIZE 200,28 PIXEL


ACTIVATE WINDOW oWnd2 MAXIMIZED
oFont:End()
return nil


///////////////////////////////////////////////////////////////////////////////
// MODULOS QUE SUELEN IR EN PRG DIFERENTES

FUNCTION MODULO_CLIENTES()

LOCAL oWndC, oBar, oBar2, oBar22
LOCAL aBotones:=ARRAY(2)
LOCAL aButtonsMdi:={}
LOCAL oFont, oBrw, aData

DEFINE FONT oFont  NAME "Segoe UI Light" SIZE 0,-18
DEFINE WINDOW oWndC MDICHILD OF oWnd TITLE "Clientes" COLOR CLR_BLACK, RGB(240,240,240)
  DEFINE BUTTONBAR oBar OF oWndC BUTTONSIZE 40,40
      oBar:SetColor(CLR_BLACK, RGB(240,240,240))
      oBar:bRClicked := {|| nil }


      @01,000 BTNBMP aBotones[1] FILE cRuta+"CLOSE.BMP" SIZE 40,40 OF oBar UPDATE NOBORDER ACTION oWndC:End()
         aBotones[1]:cToolTip=CRLF+"   Cerra módulo de CLIENTES   "+CRLF+" "
      @01,040 BTNBMP aBotones[2] FILE cRuta+"W10_MENU.BMP" SIZE 40,40 OF oBar UPDATE NOBORDER ACTION oMenu:Activate(40,41,oBar,.f.)
         aBotones[2]:cToolTip=CRLF+"   Menú principal   "+CRLF+" "


   @40,0 BUTTONBAR oBar22 SIZE 1400,40 BUTTONSIZE 100,40 OF oWndC

   @100,50 SAY "CLIENTES Objects [BarMdi TOP position]" OF oWndC PIXEL COLOR CLR_BLUE SIZE 500,50 FONT oFont

    aData:={{"","",""}}
    oBrw:=TxBrowse():New(oWndC)
    oBrw:nDataLines := 1
    oBrw:SetArray(aData)
    oBrw:nTop     := 150
    oBrw:nLeft    := 50
    oBrw:nBottom  := 600
    oBrw:nRight   := 750
    oBrw:oFont    := oFont
    oBrw:aCols[1]:cHeader      := "Object"
    oBrw:aCols[2]:cHeader      := "Id"
    oBrw:aCols[3]:cHeader      := "Caption/Data"
    oBrw:aCols[1]:nWidth       := 150
    oBrw:aCols[2]:nWidth       := 100
    oBrw:aCols[3]:nWidth       := 500
    oBrw:nRowHeight     :=26
    oBrw:CreateFromCode()



ACTIVATE WINDOW oWndC MAXIMIZED ON PAINT ( aButtonsMdi:=ACT_BOT_MODULOS(oBar22,aButtonsMdi), aData:=ACT_BROWSE(aData,oBrw,oBar22,oWndC,aButtonsMdi) )
oFont:End()

return nil

//-----------------------------------------------------------------------------
FUNCTION MODULO_PROVEEDORES()

LOCAL oWndPr, oBar, oBar23
LOCAL aBotones:=ARRAY(2)
LOCAL aButtonsMdi:={}
LOCAL oFont, oBrw, aData

DEFINE FONT oFont  NAME "Segoe UI Light" SIZE 0,-18
DEFINE WINDOW oWndPr MDICHILD OF oWnd TITLE "Proveedores" COLOR CLR_BLACK, RGB(240,240,240)
  DEFINE BUTTONBAR oBar OF oWndPr BUTTONSIZE 40,40
      oBar:SetColor(CLR_BLACK, RGB(240,240,240))
      oBar:bRClicked := {|| nil }

      @01,000 BTNBMP aBotones[1] FILE cRuta+"CLOSE.BMP" SIZE 40,40 OF oBar UPDATE NOBORDER ACTION oWndPr:End()
         aBotones[1]:cToolTip=CRLF+"   Cerrar módulo de proveedores   "+CRLF+" "
      @01,040 BTNBMP aBotones[2] FILE cRuta+"W10_MENU.BMP" SIZE 40,40 OF oBar UPDATE NOBORDER ACTION oMenu:Activate(40,41,oBar,.f.)
         aBotones[2]:cToolTip=CRLF+"   Menú principal   "+CRLF+" "
      @05,085 IMAGE FILE cRuta+"SEPARADOR.JPG" SIZE 1,30 OF oBar PIXEL NOBORDER

      Botones_ABM( oBar )  // simula botones de alta, baja, modificacion ...


   IF lBarAllwaysTop = .t.
      @40,0 BUTTONBAR oBar23 SIZE 1400,40 BUTTONSIZE 100,40 OF oWndPr
      @100,250 SAY "PROVEEDORES Objects [BarMdi TOP position]" OF oWndPr PIXEL COLOR CLR_BLUE SIZE 500,50 FONT oFont
   ELSE
      @40,0 BUTTONBAR oBar23 SIZE 200,800 BUTTONSIZE 100,40 OF oWndPr
      @100,250 SAY "PROVEEDORES Objects [BarMdi LEFT position]" OF oWndPr PIXEL COLOR CLR_BLUE SIZE 500,50 FONT oFont
   ENDIF


    aData:={{"","",""}}
    oBrw:=TxBrowse():New(oWndPr)
    oBrw:nDataLines := 1
    oBrw:SetArray(aData)
    oBrw:nTop     := 150
    oBrw:nLeft    := 250
    oBrw:nBottom  := 600
    oBrw:nRight   := 950
    oBrw:oFont    := oFont
    oBrw:aCols[1]:cHeader      := "Object"
    oBrw:aCols[2]:cHeader      := "Id"
    oBrw:aCols[3]:cHeader      := "Caption/Data"
    oBrw:aCols[1]:nWidth       := 150
    oBrw:aCols[2]:nWidth       := 100
    oBrw:aCols[3]:nWidth       := 500
    oBrw:nRowHeight     :=26
    oBrw:CreateFromCode()





ACTIVATE WINDOW oWndPr MAXIMIZED ON PAINT ( aButtonsMdi:=ACT_BOT_MODULOS(oBar23,aButtonsMdi), aData:=ACT_BROWSE(aData,oBrw,oBar23,oWndPr,aButtonsMdi) )
oFont:End()
return nil
//-----------------------------------------------------------------------------
FUNCTION MODULO_ARTICULOS()

LOCAL oWndA, oBar, oBar24
LOCAL aBotones:=ARRAY(2)
LOCAL aButtonsMdi:={}
LOCAL oFont, oBrw, aData

DEFINE FONT oFont  NAME "Segoe UI Light" SIZE 0,-18
DEFINE WINDOW oWndA MDICHILD OF oWnd TITLE "Artículos" COLOR CLR_BLACK, RGB(240,240,240) FROM 0,0 TO 2000,2000
   DEFINE BUTTONBAR oBar OF oWndA BUTTONSIZE 40,40
   oBar:SetColor(CLR_BLACK, RGB(240,240,240))
   oBar:bRClicked := {|| nil }

      @01,000 BTNBMP aBotones[1] FILE cRuta+"CLOSE.BMP" SIZE 40,40 OF oBar UPDATE NOBORDER ACTION oWndA:End()
         aBotones[1]:cToolTip=CRLF+"   Cerra módulo de ARTICULOS   "+CRLF+" "
      @01,040 BTNBMP aBotones[2] FILE cRuta+"W10_MENU.BMP" SIZE 40,40 OF oBar UPDATE NOBORDER ACTION oMenu:Activate(40,41,oBar,.f.)
         aBotones[2]:cToolTip=CRLF+"   Menú principal   "+CRLF+" "

   IF lBarAllwaysTop
      @40,0 BUTTONBAR oBar24 SIZE 1400,40 BUTTONSIZE 100,40 OF oWndA
      @100,300 SAY "ARTICULOS objects [BarMdi TOP position]" OF oWndA PIXEL SIZE 500,50 COLOR CLR_RED FONT oFont
   ELSE
      @150,100 BUTTONBAR oBar24 SIZE 180,450 BUTTONSIZE 180,40 OF oWndA
      @100,300 SAY "ARTICULOS objects [BarMdi FREE position]" OF oWndA PIXEL SIZE 500,50 COLOR CLR_RED FONT oFont
   ENDIF

    aData:={{"","",""}}
    oBrw:=TxBrowse():New(oWndA)
    oBrw:nDataLines := 1
    oBrw:SetArray(aData)
    oBrw:nTop     := 150
    oBrw:nLeft    := 300
    oBrw:nBottom  := 600
    oBrw:nRight   := 900
    oBrw:oFont    := oFont
    oBrw:aCols[1]:cHeader      := "Object"
    oBrw:aCols[2]:cHeader      := "Id"
    oBrw:aCols[3]:cHeader      := "Caption/Data"
    oBrw:aCols[1]:nWidth       := 150
    oBrw:aCols[2]:nWidth       := 100
    oBrw:aCols[3]:nWidth       := 500
    oBrw:nRowHeight     :=26
    oBrw:CreateFromCode()



ACTIVATE WINDOW oWndA MAXIMIZED ON PAINT ( aButtonsMdi:=ACT_BOT_MODULOS(oBar24,aButtonsMdi), aData:=ACT_BROWSE(aData,oBrw,oBar24,oWndA,aButtonsMdi) )


oFont:End()

return nil

// ----------------------------------------------------------------------------
// only for test purpose
FUNCTION ACT_BROWSE(aData,oBrw,oBar,oWnd,aButtonsMdi)


local i

   aData:={}
   // MDI window
   AADD( aData, { oWnd:ClassName(), "nil" , oWnd:cCaption } )
   // MDI Bar
   AADD( aData, { "  - "+oBar:ClassName(), ALLTRIM(STR(oBar:nId)), oBar:cCaption } )
   // MDI BAR Buttons
   for i=1 to LEN(oBar:aControls)
      AADD( aData, { "    - "+oBar:aControls[i]:ClassName(), ALLTRIM(STR(oBar:aControls[i]:nId)), oBar:aControls[i]:cCaption } )
   next i
   // Othe MDI Controls
   for i=1 to LEN(oWnd:aControls)
      AADD( aData, { "  - "+oWnd:aControls[i]:ClassName(), ALLTRIM(STR(oWnd:aControls[i]:nId)), oWnd:aControls[i]:cCaption } )
   next i
   // aButtonsMdi
   AADD( aData, {"","",""})
   AADD( aData, {"  aButtonsMdi","","Elements "+str(len(aButtonsMdi))})
   for i=1 to LEN(aButtonsMdi)
      AADD( aData, { "    aButtonsMdi "+ALLTRIM(STR(i)),"","Valtype() "+VALTYPE(aButtonsMdi[i]) } )
   next i

oBrw:aArrayData=aData
oBrw:Refresh()

return(aData)


//-----------------------------------------------------------------------------
// MDI BUTTONS FUNCTIONS

FUNCTION ACT_BOT_MODULOS(oBar,aBMdi)


local i:=0
local acCaptions:={}
local aCaptionButtons := {}   // lista de los caption de los botones existentes
local nPos:=2
local lEncontrado:=.f.
LOCAL X:=0
LOCAL oFont := oBar:oFont
LOCAL aoBt:={}
LOCAL nCaso:=0
LOCAL nDelete:=0


oBar:SetColor(CLR_BLACK, RGB(240,240,240))
oBar:bRClicked := {|| nil }


acCaptions:=genera_botones_mdi()         // GENERA UNA LISTA DE LAS VENTANAS EXISTENTES
aoBt:=ARRAY( LEN(acCaptions) )           // crea un array de la longuitud de los botones necesarios

// creamos el array con el caption de los botones que ya tenemos, por si necesitamos borrarlos
aCaptionButtons:={}
for i=1 to len(oBar:aControls)
  aadd(aCaptionButtons, oBar:aControls[i]:cCaption)
next i

IF LEN(aCaptionButtons)>LEN(acCaptions)   // tenemos mas botones que ventanas
   nCaso:=1
ENDIF
IF LEN(aCaptionButtons)<LEN(acCaptions)   // tenemos menos botones que ventanas
   nCaso:=2
ENDIF
IF LEN(aCaptionButtons)=LEN(acCaptions)   // tenemos igual botones que ventanas
   RETURN(aBMdi)
ENDIF




IF nCaso = 1

   * determinar numero de elemento a borrar
   nDelete:=QueElementoBorrar(aCaptionButtons,acCaptions)
      aBMdi[nDelete]:Hide()
      aBMdi[nDelete]:End()
      aDel(aBMdi,nDelete)
      aSize(aBMdi, Len( aBMdi )-1 )
      *oBar:Del(2)   // no usar. recoloca los botones por defecto en la parte superior
      ADel( oBar:aControls, nDelete )
      ASize( oBar:aControls, Len( oBar:aControls ) - 1 )

      oBar:Refresh()



   // recoloco los botones y asigno nuevo Code block
   aoBt:={}
   for i=1 to len(aBMdi)
      AADD(aoBt, aBmdi[i])
      // position
      IF (oBar:nRight-oBar:nLeft)>(oBar:nBottom-oBar:nTop)   // si es mas ancho que alto
         aoBt[i]:nLeft:=(i-1)*oBar:nBtnWidth
      ELSE
         aoBt[i]:nTop:=(i-1)*oBar:nBtnHeight
      ENDIF
      aoBt[i]:bAction := HazBlock( i )
   next i
   oBar:Refresh()
   RETURN(aoBt)
ENDIF



IF nCaso=2
   for i=1 to len(acCaptions)

      x=1
      lEncontrado:=.f.
      DO WHILE .T.
         IF x>LEN(aCaptionButtons) ; EXIT ; ENDIF
         IF aCaptionButtons[x]=acCaptions[i]
            lEncontrado:=.t.
         ENDIF
         ++x
      ENDDO

      IF lEncontrado=.f.   // si no ha encontrado el boton, lo crea
         IF (oBar:nRight-oBar:nLeft)>(oBar:nBottom-oBar:nTop)   // si es mas ancho que alto
            @1,(i-1)*oBar:nBtnWidth BTNBMP aoBt[i] OF oBar PROMPT acCaptions[i] UPDATE NOBORDER SIZE oBar:nBtnWidth-2,oBar:nBtnHeight-2 FONT oFont
         ELSE
            @(I-1)*OBar:nBtnHeight,0 BTNBMP aoBt[i] OF oBar PROMPT acCaptions[i] UPDATE NOBORDER SIZE (oBar:nRight-oBar:nLeft)-2,oBar:nBtnHeight-2 FONT oFont
         ENDIF

         aoBt[i]:bAction := HazBlock( i )

      ELSE
         aoBt[i]:=aBMdi[i]
      ENDIF

      // Colours & images
      IF aoBt[i]:cCaption=oBar:oWnd:cCaption
         aoBt[i]:SetColor( CLR_BLACK, RGB(216,234,249) )
         IF lImageSelect = .t.
            aoBt[i]:SetFile(cRuta+"BOTON_VERDE.BMP")
            aoBt[i]:nLayout := 1
         ENDIF
      ELSE
         aoBt[i]:SetColor( CLR_BLACK, RGB(250,250,250) )
         IF lImageSelect = .t.
            aoBt[i]:SetFile(cRuta+"BOTON_ROJO.BMP")
            aoBt[i]:nLayout := 1
         ENDIF
      ENDIF



   next i
ENDIF


return(aoBT)

//----------------------------------------------------------------------------
// DEVUELVE LA POSICION DEL ELEMENTO DEL PRIMER ARRAY QUE NO ESTA EN EL SEGUNDO ARRAY
FUNCTION QueElementoBorrar(aCaptionButtons,acCaptions)

local x:=0, z:=0
local cBuscar:=""
local nDevolver:=0
local lEncontrado:=.f.
for x:=1 to len(aCaptionButtons)
   cBuscar:=aCaptionButtons[x]
   lEncontrado:=.f.
   for z:=1 to len(acCaptions)
      IF cBuscar=acCaptions[z]
         lEncontrado=.t.
      ENDIF
   NEXT z
   IF lEncontrado=.f.
      nDevolver:=x
   ENDIF
next x
return(nDevolver)

//-----------------------------------------------------------------------------
// Make code block with number of any MDI windows

Function HazBlock( x )

Return &("{ || SelectMdi(" +LTrim(Str(x))+" ) }" )

//----------------------------------------------------------------------------
// Select MDI window with their number

FUNCTION SelectMdi(nNumeroVentana)

oWnd:oWndClient:aWnd[nNumeroVentana]:SetFocus()

return(nil)

//-------------------------------------------------------------------------------
// SetFocus the MDI window with ::cCaption = cTitle if are in use
FUNCTION Activa_MDI(cTitle)

LOCAL i:=0, lSuccess:=.f.

cTitle:=upper(cTitle)

FOR i=1 TO LEN(oWnd:oWndClient:aWnd)
   IF UPPER( oWnd:oWndClient:aWnd[i]:cCaption )=cTitle
      oWnd:oWndClient:aWnd[i]:SetFocus()
      lSuccess:=.t.
   ENDIF
NEXT
RETURN lSuccess

//////////////////////////////////////////////////////////////////////////
// Return an array with all mdi windows in use
FUNCTION Genera_botones_mdi()

LOCAL aDevolver:={}, i:=1

FOR i=1 TO LEN(oWnd:oWndClient:aWnd)
   AADD(aDevolver, oWnd:oWndClient:aWnd[i]:cCaption )
NEXT i

RETURN( aDevolver )

////////////////////////////////////////////////////////////////////////////
// only for test visual use

FUNCTION BOTONES_ABM(oBar)

      @1,090 BTNBMP  OF oBar FILE cRuta+"FIRST.BMP"   SIZE 40,40 UPDATE NOBORDER

      @1,130 BTNBMP OF oBar FILE cRuta+"PREV.BMP"     SIZE 40,40 UPDATE NOBORDER

      @1,170 BTNBMP OF oBar FILE cRuta+"NEXT.BMP"     SIZE 40,40 UPDATE NOBORDER

      @1,210 BTNBMP OF oBar FILE cRuta+"LAST.BMP"     SIZE 40,40 UPDATE NOBORDER

      @1,250 BTNBMP OF oBar FILE cRuta+"NEW.BMP"      SIZE 40,40 UPDATE NOBORDER

      @1,290 BTNBMP OF oBar FILE cRuta+"EDIT.BMP"     SIZE 40,40 UPDATE NOBORDER

      @1,330 BTNBMP OF oBar FILE cRuta+"OK.BMP"       SIZE 40,40 UPDATE NOBORDER

      @1,370 BTNBMP OF oBar FILE cRuta+"CANCEL.BMP"   SIZE 40,40 UPDATE NOBORDER

      @1,410 BTNBMP OF oBar FILE cRuta+"PRINT.BMP"    SIZE 40,40 UPDATE NOBORDER

      @1,450 BTNBMP OF oBar FILE cRuta+"FIND.BMP"     SIZE 40,40 UPDATE NOBORDER


return(nil)
