Concept of REDEFINE for Dummy
Posted: Sun Feb 26, 2023 07:05 AM

hi,

i do not know Technique of using *.RC and REDEFINE
"where" can i learn more about it how to use with Fivewin :?:

greeting,

Jimmy

Antonio Linares

Posts: 44158

Joined: Thu Oct 06, 2005 05:47 PM

Re: Concept of REDEFINE for Dummy
Posted: Sun Feb 26, 2023 08:34 AM

Dear Jimmy,

Please make a search for REDEFINE in FWH\samples*.prg

regards, saludos

Antonio Linares
www.fivetechsoft.com

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Concept of REDEFINE for Dummy
Posted: Sun Feb 26, 2023 10:09 AM

hi Antonio,

Antonio Linares wrote:Please make a search for REDEFINE in FWH\samples\*.prg

that is exact my "Problem"

i do "see" them but not "understand" what they are for and "how" it work e.g. ID
what is the benefit use use *.RC :?:

greeting,

Jimmy

Antonio Linares

Posts: 44158

Joined: Thu Oct 06, 2005 05:47 PM

Re: Concept of REDEFINE for Dummy
Posted: Sun Feb 26, 2023 10:23 AM

You create a RC file using a visual RC designer and then use it from your FWH app

You can use the one provided in Visual Studio Community, ResEdit, PellesC, etc there are many availables

You visually "draw" your screens instead of calculating coors by try and error...

regards, saludos

Antonio Linares
www.fivetechsoft.com

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Concept of REDEFINE for Dummy
Posted: Sun Feb 26, 2023 10:31 AM

hi Antonio,

WOW, i did not know that Technique.

i did know 2-Way "Form-Designer" but they "generate Full Source" CODE but never think of *.RC

but how is *.PRG Part
will it "generate" too :?:

greeting,

Jimmy

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Concept of REDEFINE for Dummy
Posted: Sun Apr 02, 2023 04:02 AM

hi,

Question :
how does REDEFINE a "say" ("Static") when ID are 0xFFFF or -1 :?:

greeting,

Jimmy

cmsoft

Posts: 1344

Joined: Wed Nov 16, 2005 09:14 PM

Re: Concept of REDEFINE for Dummy
Posted: Sun Apr 02, 2023 01:50 PM

Jimmy:

It has to have an id other than -1 to be able to assign redefines

Change RC with an ID.

Salu2
Cesar Gomez
https://www.bcnsoft.com.ar
https://www.pedidosbcn.com

cnavarro

Posts: 6755

Joined: Wed Feb 15, 2012 08:25 PM

Re: Concept of REDEFINE for Dummy
Posted: Sun Apr 02, 2023 02:42 PM

The only problem we found in the use of this technique (dialog design in .RC) is the adaptation of these designs to screens of different resolutions.

But everything can be solved, with Fivewin, everything is possible.

Cristobal Navarro

Hay dos tipos de personas: las que te hacen perder el tiempo y las que te hacen perder la noción del tiempo

El secreto de la felicidad no está en hacer lo que te gusta, sino en que te guste lo que haces

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Concept of REDEFINE for Dummy
Posted: Sun Apr 02, 2023 03:27 PM

hi,

cmsoft wrote:It has to have an id other than -1 to be able to assign redefines
Change RC with an ID.

i can´t change ID while it is from Windows ;)

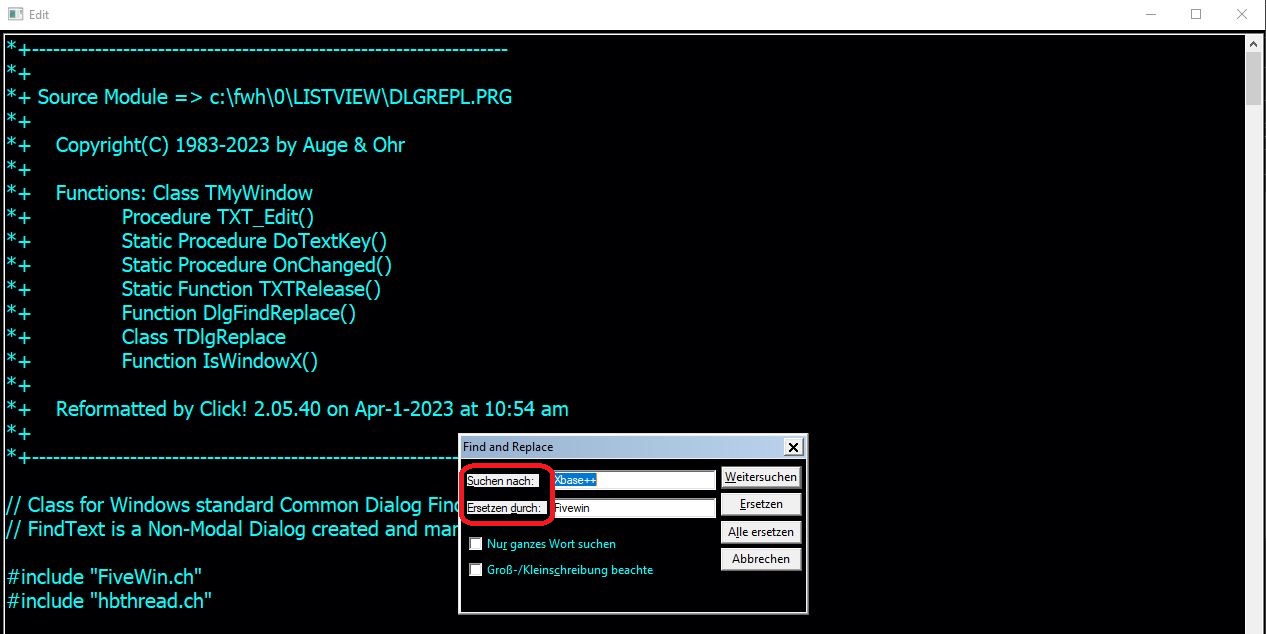

i use that "search/replace" Dialog which e.g. Notepad.EXE have

based on c:\fwh\source\classes\dlgfind.prg i found out that i can REDEFINE "Windows standard Common Dialog"
it have to do with (undocumented) Function RegDialog()

as i want to use "Dark-Mode" those "Common Control" are still "white" which i try to change
as you can "see" i can change some Color but those "Say" (wC_STATIC) have ID 0xFFFF or -1 ... :(

---

Question :

instead of

Code (fw): Select all Collapse

   REDEFINE BUTTON

i have try

Code (fw): Select all Collapse

   REDEFIBE BTNBMP

this seems to work but "Parent Window" seem not to get "Userdef Event" ...

i have try oWnd:SendMsg() or oWnd:PostMsg() but i got no Result

Question :
can i can change BUTTON to "something" else ? ( or is there a limitation IsKinof("BUTTON) in RegDialog() ... )

greeting,

Jimmy

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Concept of REDEFINE for Dummy
Posted: Sun Apr 02, 2023 03:46 PM

hi,

cnavarro wrote:The only problem we found in the use of this technique (dialog design in .RC) is the adaptation of these designs to screens of different resolutions.

i agree that these "old" Windows "Common Control" are made for Screen like VGA but much to small for FULL-HD

but i never know that i can REDEFINE Controls of those "Common Control"
my 1th Idea was to change Color for "Dark-Mode" ...

---

when REDEFINE i got hWnd in ::aControl so i can "paint it black"
but i need ID of Control for REDEFINE and each ID must be "unique" so i get only 1st "say"

Question
how to get hWnd of each Control in Dialog :?:

greeting,

Jimmy

Antonio Linares

Posts: 44158

Joined: Thu Oct 06, 2005 05:47 PM

Re: Concept of REDEFINE for Dummy
Posted: Sun Apr 02, 2023 03:47 PM

Dear Jimmy,

Try with TPanel as it is a very simple control

regards, saludos

Antonio Linares
www.fivetechsoft.com

Marc Venken

Posts: 1487

Joined: Tue Jun 14, 2016 07:51 AM

Re: Concept of REDEFINE for Dummy
Posted: Sun Apr 02, 2023 05:46 PM

Jimmy,

Some posts that can give some more info i think

https://forums.fivetechsupport.com/viewtopic.php?f=3&t=34405&hilit=+resource
https://forums.fivetechsupport.com/viewtopic.php?f=3&t=40651&hilit=+resource
https://forums.fivetechsupport.com/viewtopic.php?f=3&t=34922&hilit=+resource

Marc Venken

Using: FWH 23.08 with Harbour

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Concept of REDEFINE for Dummy
Posted: Mon Apr 03, 2023 06:21 AM

hi Antonio,

Antonio Linares wrote:Try with TPanel as it is a very simple control

thx for Answer

i don´t want to create "new" Control.
i want to "modify" existing Windows "Common Control"

i´m testing REDEFINE and found out that i can get hWnd of existing "Common Control" when have Resource ID
but for "Say" i got only 0xFFF or IDC_STATIC (-1) so i can´t get hWnd

that´s why i ask
how to get hWnd of each Control in Dialog :?:

greeting,

Jimmy

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Concept of REDEFINE for Dummy
Posted: Mon Apr 03, 2023 01:27 PM

hi,

it seem that REDEFINE does only work with FINDTEXT() as it return a Handle

Code (fw): Select all Collapse

   hdlg = FindText(&fr);

https://learn.microsoft.com/de-de/windows/win32/dlgbox/using-common-dialog-boxes?redirectedfrom=MSDN

other like

Code (fw): Select all Collapse

   if (ChooseColor(&cc)==TRUE)
   if (ChooseFont(&cf)==TRUE)
   if (GetOpenFileName(&ofn)==TRUE)
   if (PrintDlg(&pd)==TRUE)
   if (PageSetupDlg(&psd)==TRUE)

seems not return Handle

so that Way is a "dead end" trying "Dark-Mode"

greeting,

Jimmy
