can use SWITCH Control in XBROWSE ?
Posted: Tue May 16, 2023 04:53 AM

hi,

when use o:EditSource() of XBROWSE i get a TSwitch() Object for Type "L"

Question : can i show TSwitch() "in" XBROWSE :?:

if yes, how :idea:

greeting,

Jimmy

nageswaragunupudi

Posts: 10733

Joined: Sun Nov 19, 2006 05:22 AM

Re: can use SWITCH Control in XBROWSE ?
Posted: Tue May 16, 2023 06:22 AM

TSwitch is a control.
We can not have controls inside the xbrowse cells.
If we want to have the same appearance, the we need to make two bitmaps for ON position and OFF position, with the same appearance.
Then:

Code (fw): Select all Collapse

oCol:SetCheck( { hBitmapON, hBitmapOff }, .t. )

Regards

G. N. Rao.

Hyderabad, India

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: can use SWITCH Control in XBROWSE ?
Posted: Wed May 17, 2023 02:11 PM

hi,

thx for Answer

under HMG i can put any Control in a Cell of "GRID" (WC_LISTVIEW)

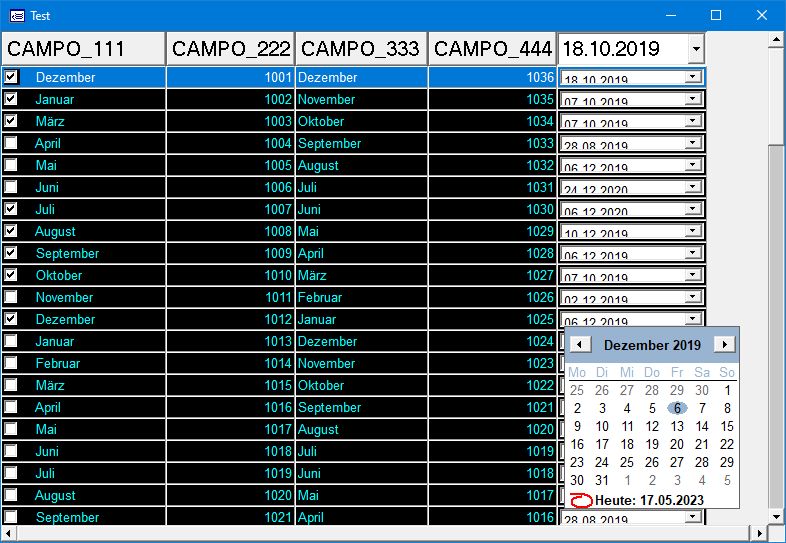

under Xbase++ i have use "DatePicker" in XbpBrowse() which is like XBROWSE

not sure about how it work with "GRID" but under Xbase++ i can create my "own" Column CLASS

Code (fw): Select all Collapse

CLASS DXE_DateColumn FROM XbpColumn

and also to CELL

Code (fw): Select all Collapse

CLASS DXE_DateCellGroup FROM XbpCellGroup

so it should be possible using OOP under Fivewin to use a Control in a "CELL"

greeting,

Jimmy

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: can use SWITCH Control in XBROWSE ?
Posted: Mon May 29, 2023 05:45 PM

hi,

i did found c:\fwh\samples\testdtp.prg

it does have EDIT_DATE or EDIT_TIME as "nEditType" of Column

there are

Code (fw): Select all Collapse

#define EDIT_NONE             0
#define EDIT_GET              1
#define EDIT_LISTBOX          2
#define EDIT_BUTTON           3
#define EDIT_GET_LISTBOX      4
#define EDIT_GET_BUTTON       5
#define EDIT_DATE             6
#define EDIT_TIME             7

i like to request EDIT_LOGIC

greeting,

Jimmy

nageswaragunupudi

Posts: 10733

Joined: Sun Nov 19, 2006 05:22 AM

Re: can use SWITCH Control in XBROWSE ?
Posted: Tue May 30, 2023 12:24 AM

i like to request EDIT_LOGIC

This is implemented as:

Code (fw): Select all Collapse

oCol:SetCheck( [aBmps], [lEdit], [aPrompts]

Parameters:
aBmps: Optional. Array or 2 or 3 bitmaps to be displayed when the value is .T., .F., nil. If omitted, xbrowse provides default bitmaps which look like checkboxes.

lEdit: Optional: Value .T. indicates that the column can be edited by the user. Pressing <space>,<enter> or double click toggles the logical value.

aPrompts: Optional: If specified, displays the prompt in addition to the bitmap.

Usage:
Most common: oCol:SetCheck( nil, .t. )
or
oCol:setCheck( { bmpOn, bmpOff, bmpNil }, .t., { "Married", "Single" } )

If the browse has more than one logical column, we can globally set for all logical columns by:
oBrw:SetChecks( ... )

Regards

G. N. Rao.

Hyderabad, India

nageswaragunupudi

Posts: 10733

Joined: Sun Nov 19, 2006 05:22 AM

Re: can use SWITCH Control in XBROWSE ?
Posted: Tue May 30, 2023 01:10 AM

create my "own" Column CLASS

Using our own column class:

Code (fw): Select all Collapse

CLASS TMyColumn FROM TXBrwColumn
//
ENDCLASS

Then

Code (fw): Select all Collapse

@ r,c XBROWSE <clauses> CLASS TMyColumn() <moreClauses>

or

Code (fw): Select all Collapse

@ r,c XBROWSE <clauses> CLASS { || TMyColumn() } <moreClauses>

Regards

G. N. Rao.

Hyderabad, India

nageswaragunupudi

Posts: 10733

Joined: Sun Nov 19, 2006 05:22 AM

Re: can use SWITCH Control in XBROWSE ?
Posted: Tue May 30, 2023 01:13 AM

Can also derive our own browse class from TXBrowse.

Code (fw): Select all Collapse

CLASS TMyBrowse FROM TXBrowse
//
DATA bColClass INIT { || TMyColumn() }
//
ENDCLASS

Then

Code (fw): Select all Collapse

@ r,c XBROWSE <clauses> CLASS TMyBrowse() <moreClauses>

or

Code (fw): Select all Collapse

@ r,c XBROWSE <clauses> CLASS { || TMyBrowse() }<moreClauses>

Regards

G. N. Rao.

Hyderabad, India

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: can use SWITCH Control in XBROWSE ?
Posted: Tue May 30, 2023 05:12 PM

hi,

thx for Answer

i will try it if i can implement SWITCH Control in own CLASS FROM

greeting,

Jimmy
