Board index FiveWin for Harbour/xHarbour Crash with 23.04 GRADIENTFILL()

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Crash with 23.04 GRADIENTFILL()
Posted: Sun Jul 23, 2023 01:57 AM

hi,

   Error description: Error BASE/1068  Argument error: array access
   Args:
     [   1] = U
     [   2] = N   2

Stack Calls
===========
   Called from: .\source\function\IMGTXTIO.PRG => GRADIENTFILL( 3132 )
   Called from: .\DUALGRID.PRG => TEXPLORER:DOMYCOMBO( 5930 )
   Called from: .\DUALGRID.PRG => (b)MAIN( 916 )

have made a Copy of "old" Source and it work again

greeting,

Jimmy

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Crash with 23.04 GRADIENTFILL()
Posted: Sun Jul 23, 2023 03:54 AM

hi,

ok got it

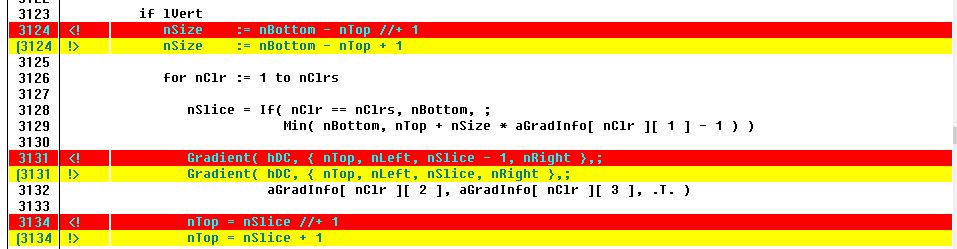

old Version (which work this Way )

Code (fw): Select all Collapse

LOCAL aGrad         := { ;
                    { .5, BFcolor, BGcolor }, ;
                    { .6, BGcolor, BFcolor }, ;
                    { .1, BFcolor, BGcolor }, ;
                    }

must be in new Version

Code (fw): Select all Collapse

local aGrad := ;
      { ;
         { 0.5,    RGB( 140,  56,   6 ),  RGB( 237, 234, 109 )   }, ;
         { 0.5,    RGB( 237, 234, 109 ),  RGB(  85,  62,  84 )   }  ;
      }

a.) last Element no "Komma"
b.) does "slow down" using 3 Elemets

greeting,

Jimmy

Rick Lipkin

Posts: 2706

Joined: Fri Oct 07, 2005 01:50 PM

Re: Crash with 23.04 GRADIENTFILL()
Posted: Sun Jul 23, 2023 03:07 PM

Jimmy .. Here are some gradient code I use to make make things simple ... Rick

Code (fw): Select all Collapse

//-------------------
Func GreyButtonGrad()

// 2010 grey button skin

Local bGrad

bGrad := { | lInvert | If( ! lInvert, ;
         { { 1, nRGB( 255, 255, 255 ), nRGB( 207, 207, 207 ) } }, ;
         { { 1/3, nRGB( 255, 253, 222 ), nRGB( 255, 231, 151 ) }, ;
         { 2/3, nRGB( 255, 215,  84 ), nRGB( 255, 233, 162 ) } } ) }

Return( bGrad )

//---------------------------
Func BlueGreenGrad()

Local xGrad4 :=  {{ 1.00,14671839,   7419904 }, { 1.00,7419904,  14671839 }}   // med blue
SetDlgGradient( xGrad4 )

Return(nil)

//---------------------
Func SolidGreenBlue()

*SetDlgGradient( { { 0.01,8421376,8421376 },{ 0.01,8421376,8421376 } })

SetDlgGradient({ { 0.01,9994298,9994298 },{ 0.01,9994298,9994298 } })
Return(nil)


//-------------
Func SolidDarkBlue()

SetDlgGradient( { { 0.50,4720905,4720905 },{ 0.50,4720905,4720905 } })
Return(nil)

//-------------------
Func SolidBlue()

SetDlgGradient( { { 0.01,16711680,16711680 },{ 0.01,16711680,16711680 } })
Return(nil)

//------------------
Func DarkBlueGrad()

*SetDlgGradient( { { 0.87,8388608,11100165 },{ 0.87,11100165,8388608 } } )
*SetDlgGradient( { { 0.01,nRgb(4,53,107),11100165 },{ 0.01,11100165,nRgb(4,53,107) } } )
*SetDlgGradient( { { .50, nRGB( 4, 53, 107 ), nRGB( 4, 53, 107 ) } } )

*SetDlgGradient({ { 1.00,8388608,986895   },{ 1.00,986895,8388608   } })
SetDlgGradient({ { 0.0,8388608,13619151 },{ 0.0,13619151,8388608 } })
Return(nil)


//--------------
Func LightGreenGrad()

SetDlgGradient( { { .50, nRGB(210,235,216), nRGB( 255, 255, 255 ) } } )

Return(nil)

//------------------
Func LightBlueGrad()

SetDlgGradient( { { .50, nRGB( 201, 217, 237 ), nRGB( 231, 242, 255 ) } } )

Return(nil)

//------------------
Func LightGreyGrad()

SetDlgGradient( { { .50, nRGB( 216, 216, 216 ), nRGB( 255, 255, 255 ) } } )

Return(nil)

//-----------------
Func StandardGrad()

SetDlgGradient( { { .50, nRGB( 236, 233, 216 ), nRGB( 255, 255, 255 ) } } )

Return(nil)

//--------------------
Func DarkGreyGrad()

SetDlgGradient({{ 0.90, 14671839, 4144959  },{ 0.1, 4144959, 14671839  }})          // .80
*SetDlgGradient( { { 0.87, 16777215, 11513775 },{ 0.87,11513775, 16777215 }})

Return(nil)

//------------------------------------
Func SolidWhite()

SetDlgGradient( { { 0.01,16777215,16777215 },{ 0.01,16777215,16777215 } })

Return(nil)

//--------------------
Func SolidGrey()

SetDlgGradient( { { .50, nRGB( 233, 233, 233 ), nRGB( 233, 233, 233 ) } } )

Return(nil)

//--------------------
Func SolidChoral()

*SetDlgGradient( { { .50, nRGB( 171, 129, 151 ), nRGB( 171, 129, 151 ) } } )  // choral
SetDlgGradient(aGrad := { { 0.01,8388736,8388736 },{ 0.01,8388736,8388736 } })

Return(nil)

//-----------------
Func LightYellow()

SetDlgGradient( { { 0.01,8440801,16777215 },{ 0.75,16777215,8440801 } })

Return(nil)

//-------------------
Func GreenBlueGrad()

SetDlgGradient( { { .50, nRGB( 192, 192, 192 ), nRGB( 45, 121, 147 ) } } )

Return(nil)

nageswaragunupudi

Posts: 10733

Joined: Sun Nov 19, 2006 05:22 AM

Re: Crash with 23.04 GRADIENTFILL()
Posted: Mon Jul 24, 2023 12:28 AM

a.) last Element no "Komma"

Old or new, do not end with Comma ("'," ). Because in that case, the last element of the array is NIL. The function does not expect that any element is NIL.

Please ensure that all fractions (the first element in each sub-array) should aggregate to 1.0. If not we may not get the intended effect.

b.) does "slow down" using 3 Elemets

No.
We can have any number or slices.

Regards

G. N. Rao.

Hyderabad, India

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Crash with 23.04 GRADIENTFILL()
Posted: Mon Jul 24, 2023 02:05 AM

hi Rick.

Rick Lipkin wrote:Here are some gradient code I use to make make things simple

thx for Answer

my User can use there own Back- / Fore-ground Color so Gradient was made from these Color

greeting,

Jimmy

Jimmy

Posts: 1772

Joined: Thu Sep 05, 2019 05:32 AM

Re: Crash with 23.04 GRADIENTFILL()
Posted: Mon Jul 24, 2023 02:07 AM

hi,

thx for Answer,

nageswaragunupudi wrote:We can have any number or slices.

ok, i have try it again

can it have to do with "Ownerdraw" which i use for Combobox :?:

greeting,

Jimmy
