Board index FiveWin for Harbour/xHarbour ButtonBmp problem with FWH2402
richard-service
Posts: 866
Joined: Tue Oct 16, 2007 08:57 AM
ButtonBmp problem with FWH2402
Posted: Wed Mar 06, 2024 06:27 PM
Hi
I use FWH2212 working fine.

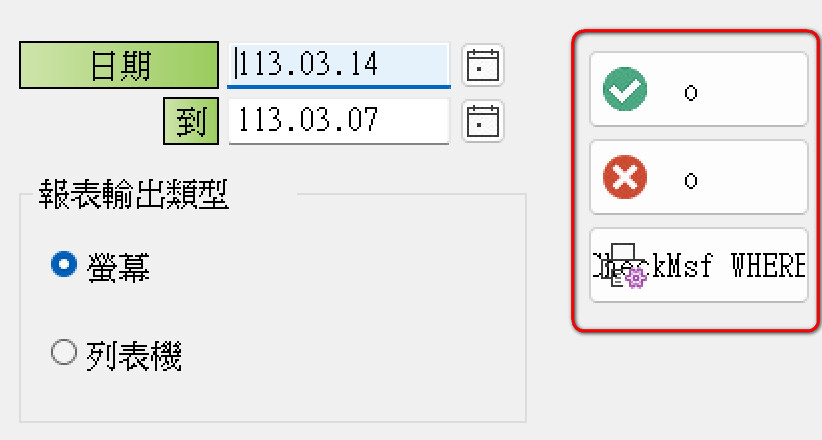

When use FWH2402 appear Chinese word does not display syntax command REDEFINE

Code (fw): Select all Collapse
             REDEFINE BUTTONBMP oBtn[1] ID 301 OF ::oDlg  ;
                      PROMPT "確 定"                      ;
                      TEXTRIGHT                           ;
                      BITMAP "BTN_Confirm24"              ;
                      ACTION ( lOK := .T. , ::oDlg:End() )

             REDEFINE BUTTONBMP oBtn[2] ID 302 OF ::oDlg  ;
                      PROMPT "取 消"                      ;
                      CANCEL                              ;
                      TEXTRIGHT                           ;
                      BITMAP "BTN_Cancel24"               ;
                      ACTION ( lOK := .F. , ::oDlg:End() )

             REDEFINE BUTTONBMP oBtn[3] ID 303 OF ::oDlg  ;
                      PROMPT "設 定"                      ;
                      TEXTRIGHT                           ;
                      BITMAP "BTN_SetPrinter24"           ;
                      ACTION PrinterSetup()

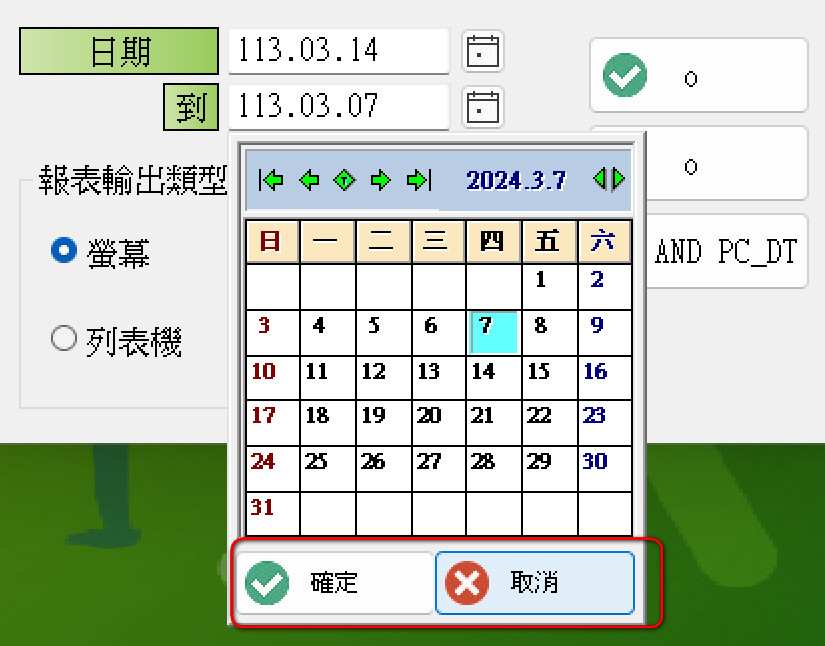

This working fine below:
Code (fw): Select all Collapse
      @ 103, 0  BUTTONBMP ::oBut[1] OF ::oDlg         ;
                SIZE 50, 16 PIXEL                     ;
                PROMPT "確定"                         ;
                RESOURCE "BTN_Confirm24"              ;
                TOOLTIP "選取日期"                    ;
                ACTION (::lOk := .T., ::oDlg:End() )  ;
                CANCEL                                ;
                TEXTRIGHT

      @ 103, 50 BUTTONBMP ::oBut[2] OF ::oDlg         ;
                SIZE 50, 16 PIXEL                     ;
                PROMPT "取消"                         ;
                RESOURCE "BTN_Cancel24"               ;
                TOOLTIP "取消選取日期"                ;
                ACTION (::lOk := .F., ::oDlg:End() )  ;
                CANCEL                                ;
                TEXTRIGHT

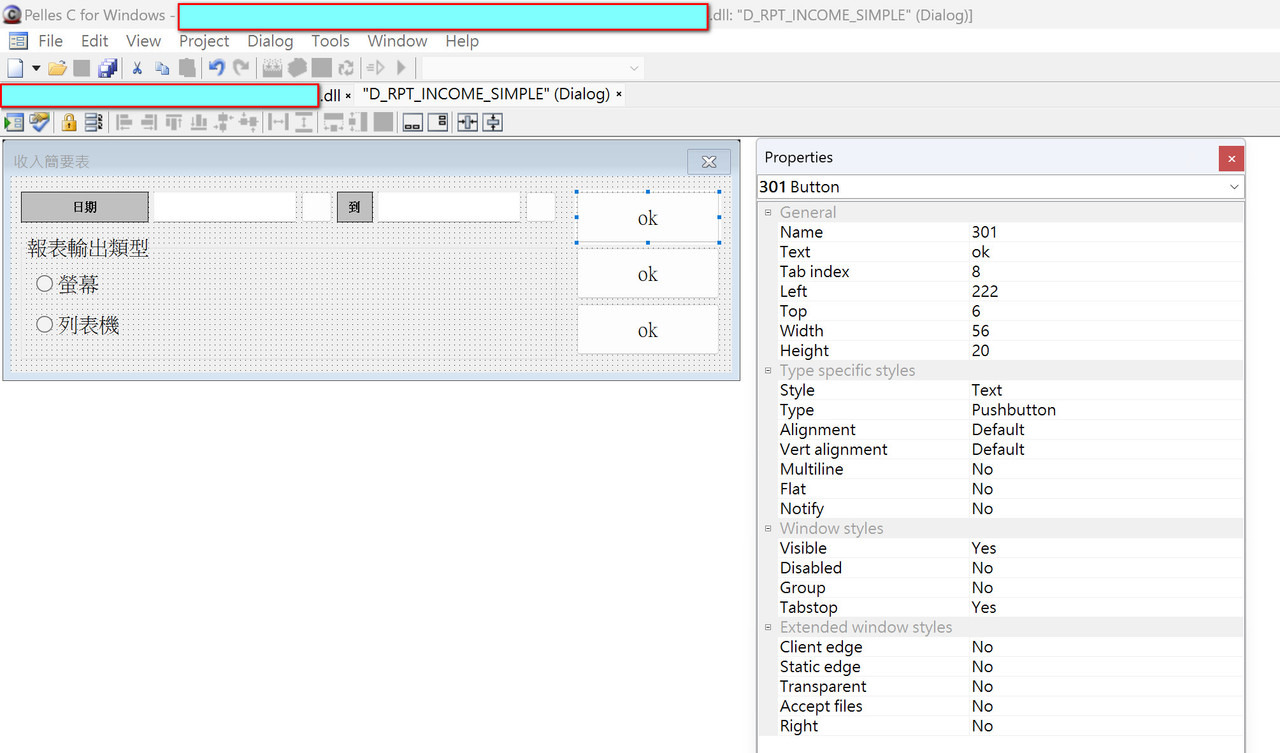

I use .dll file not rc or res.
Best Regards,



Richard



Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 32bit

MySQL v8.0

Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 64bit
leandro
Posts: 1816
Joined: Wed Oct 26, 2005 02:49 PM
Re: ButtonBmp problem with FWH2402
Posted: Wed Mar 06, 2024 08:51 PM
Es el mismo error que tenemos :shock:
https://forums.fivetechsupport.com/viewtopic.php?f=6&t=44318&sid=7bd4e3993b0800df89ecbc1c1755eb9a
Saludos
LEANDRO AREVALO
Bogotá (Colombia)
https://hymlyma.com
https://hymplus.com/
leandroalfonso111@gmail.com
leandroalfonso111@hotmail.com

[ Turbo Incremental Link64 6.98 Embarcadero 7.70 ] [ FiveWin 25.01 ] [ xHarbour 64 bits) ]
richard-service
Posts: 866
Joined: Tue Oct 16, 2007 08:57 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 01:46 AM
leandro wrote:Es el mismo error que tenemos :shock:
https://forums.fivetechsupport.com/viewtopic.php?f=6&t=44318&sid=98c33a2775e6398e51a63e334c34bf32
Yes, And very unstable.

This PROMPT empty space that only not show Chinese word
Code (fw): Select all Collapse
REDEFINE BUTTONBMP ....
PROMPT "取 消"
This PROMPT not empty space that crash my app
Code (fw): Select all Collapse
REDEFINE BUTTONBMP ....
PROMPT "取消"
Best Regards,



Richard



Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 32bit

MySQL v8.0

Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 64bit
nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 05:07 AM
Trying to reproduce the problem here
First sample from Source Code (not Resource)
Code (fw): Select all Collapse
#include "fivewin.ch"

function Main()

   local oDlg, oBtn, oFont

   FW_SetUnicode( .T. )
   SetBalloon( .t. )

   DEFINE FONT oFont NAME "Segoe UI" SIZE 0,-24
   DEFINE DIALOG oDlg SIZE 300,300 PIXEL TRUEPIXEL TITLE FWVERSION ;
      FONT oFont


     @  50,50  BUTTONBMP oBtn OF oDlg         ;
                SIZE 150, 50 PIXEL                     ;
                PROMPT "確定"                         ;
                TOOLTIP "選取日期"                    ;
                ACTION ( oDlg:End() )  ;
                CANCEL                                ;
                TEXTRIGHT

      @ 150,50 BUTTONBMP oBtn OF oDlg         ;
                SIZE 150, 50 PIXEL                     ;
                PROMPT "取消"                         ;
                TOOLTIP "取消選取日期"                ;
                ACTION ( oDlg:End() )  ;
                CANCEL                                ;
                TEXTRIGHT

   ACTIVATE DIALOG oDlg CENTERED

return nil


We do not see any problem here
Regards



G. N. Rao.

Hyderabad, India
nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 05:26 AM
We see a problem here
This is the problem faced by Mr. Leandro also.

RC file used by us for testing:
Code (fw): Select all Collapse
#include "..\include\winapi.ch"

#ifndef __64__
   1 24 ".\winxp\WindowsXP.Manifest"
#endif

#ifdef __64__
   1 24 "WinXP/WindowsXP.Manifest64"
#endif


test DIALOG 117, 94, 194, 119
STYLE DS_MODALFRAME | WS_POPUP | WS_VISIBLE | WS_CAPTION | WS_SYSMENU
CAPTION "XP theme aware Buttons Bitmap"
FONT 8, "MS Sans Serif"
{
 PUSHBUTTON "", 10, 13, 18, 20, 17
 DEFPUSHBUTTON "&OK", IDOK, 69, 95, 50, 16
 PUSHBUTTON "", 20, 13, 43, 120, 30
}
Test program in Chinese:
Code (fw): Select all Collapse
#include "FiveWin.ch"

//----------------------------------------------------------------------------//

function Main()

   local oDlg, oFont

   FW_SetUnicode( .T. )

   DEFINE FONT oFont NAME "Segoe UI" SIZE 0,-20
   DEFINE DIALOG oDlg RESOURCE "Test" TITLE FWVERSION FONT oFont

   REDEFINE BUTTONBMP ID 10 OF oDlg ;
      BITMAP "..\bitmaps\16x16\garrow.bmp"

   REDEFINE BUTTONBMP ID 20 OF oDlg ;
      BITMAP "..\bitmaps\32x32\paste.bmp" ;
      PROMPT "取 消" TEXTRIGHT

   ACTIVATE DIALOG oDlg CENTERED
   RELEASE FONT oFont

return nil
Result:



Please give us sometime and we will get back to you with fix.
Regards



G. N. Rao.

Hyderabad, India
nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 05:58 AM

What is observed till now is that the misbehavior is when FW_SetUnicode( .T. )

Request Mr. Leandro to set FW_SetUnicode( .F. ) and retry

We will work on fixing this problem

Regards



G. N. Rao.

Hyderabad, India
nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 06:20 AM
This is working
Code (fw): Select all Collapse
#include "FiveWin.ch"

//----------------------------------------------------------------------------//

function Main()

   local oDlg, oFont, oBmp

   FW_SetUnicode( .f. )

   DEFINE FONT oFont NAME "Segoe UI" SIZE 0,-20
   DEFINE DIALOG oDlg RESOURCE "Test" TITLE FWVERSION FONT oFont

   REDEFINE BUTTONBMP ID 10 OF oDlg ;
      BITMAP "..\bitmaps\16x16\garrow.bmp"

   REDEFINE BUTTONBMP oBmp ID 20 OF oDlg ;
      BITMAP "..\bitmaps\32x32\paste.bmp" ;
      PROMPT "取 消" TEXTRIGHT
   oBmp:lUnicode := .t.

   ACTIVATE DIALOG oDlg CENTERED
   RELEASE FONT oFont

return nil
RC file
Code (fw): Select all Collapse
#include "..\include\winapi.ch"

#ifndef __64__
   1 24 ".\winxp\WindowsXP.Manifest"
#endif

#ifdef __64__
   1 24 "WinXP/WindowsXP.Manifest64"
#endif


test DIALOG 117, 94, 494, 119
STYLE DS_MODALFRAME | WS_POPUP | WS_VISIBLE | WS_CAPTION | WS_SYSMENU
CAPTION "XP theme aware Buttons Bitmap"
FONT 8, "MS Sans Serif"
{
 PUSHBUTTON "", 10, 13, 18, 20, 17
 DEFPUSHBUTTON "&OK", IDOK, 69, 95, 50, 16
 PUSHBUTTON "", 20, 13, 43, 420, 30
}


We will fix the issue and get back to you soon
Regards



G. N. Rao.

Hyderabad, India
richard-service
Posts: 866
Joined: Tue Oct 16, 2007 08:57 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 06:58 AM
nageswaragunupudi wrote:Trying to reproduce the problem here
First sample from Source Code (not Resource)
Code (fw): Select all Collapse
#include "fivewin.ch"

function Main()

   local oDlg, oBtn, oFont

   FW_SetUnicode( .T. )
   SetBalloon( .t. )

   DEFINE FONT oFont NAME "Segoe UI" SIZE 0,-24
   DEFINE DIALOG oDlg SIZE 300,300 PIXEL TRUEPIXEL TITLE FWVERSION ;
      FONT oFont


     @  50,50  BUTTONBMP oBtn OF oDlg         ;
                SIZE 150, 50 PIXEL                     ;
                PROMPT "確定"                         ;
                TOOLTIP "選取日期"                    ;
                ACTION ( oDlg:End() )  ;
                CANCEL                                ;
                TEXTRIGHT

      @ 150,50 BUTTONBMP oBtn OF oDlg         ;
                SIZE 150, 50 PIXEL                     ;
                PROMPT "取消"                         ;
                TOOLTIP "取消選取日期"                ;
                ACTION ( oDlg:End() )  ;
                CANCEL                                ;
                TEXTRIGHT

   ACTIVATE DIALOG oDlg CENTERED

return nil


We do not see any problem here
Yes, I know. I said no problem.
Best Regards,



Richard



Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 32bit

MySQL v8.0

Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 64bit
richard-service
Posts: 866
Joined: Tue Oct 16, 2007 08:57 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 07:15 AM
nageswaragunupudi wrote:This is working
Code (fw): Select all Collapse
#include "FiveWin.ch"

//----------------------------------------------------------------------------//

function Main()

   local oDlg, oFont, oBmp

   FW_SetUnicode( .f. )

   DEFINE FONT oFont NAME "Segoe UI" SIZE 0,-20
   DEFINE DIALOG oDlg RESOURCE "Test" TITLE FWVERSION FONT oFont

   REDEFINE BUTTONBMP ID 10 OF oDlg ;
      BITMAP "..\bitmaps\16x16\garrow.bmp"

   REDEFINE BUTTONBMP oBmp ID 20 OF oDlg ;
      BITMAP "..\bitmaps\32x32\paste.bmp" ;
      PROMPT "取 消" TEXTRIGHT
   oBmp:lUnicode := .t.

   ACTIVATE DIALOG oDlg CENTERED
   RELEASE FONT oFont

return nil
RC file
Code (fw): Select all Collapse
#include "..\include\winapi.ch"

#ifndef __64__
   1 24 ".\winxp\WindowsXP.Manifest"
#endif

#ifdef __64__
   1 24 "WinXP/WindowsXP.Manifest64"
#endif


test DIALOG 117, 94, 494, 119
STYLE DS_MODALFRAME | WS_POPUP | WS_VISIBLE | WS_CAPTION | WS_SYSMENU
CAPTION "XP theme aware Buttons Bitmap"
FONT 8, "MS Sans Serif"
{
 PUSHBUTTON "", 10, 13, 18, 20, 17
 DEFPUSHBUTTON "&OK", IDOK, 69, 95, 50, 16
 PUSHBUTTON "", 20, 13, 43, 420, 30
}


We will fix the issue and get back to you soon
Dear Mr.Rao

I just to test my code below:
Code (fw): Select all Collapse
FW_SetUnicode( .T. )
SET RESOURCES TO 'WinCrane365.dll'
......
   REDEFINE BUTTONBMP oBmp ID 20 OF oDlg ;
      BITMAP "..\bitmaps\32x32\paste.bmp" ;
      PROMPT "取 消" TEXTRIGHT

     oBmp:lUnicode := .t.
Add oBmp:lUnicode := .t. working find.
There's no way I could spend too much time adding this.
Best Regards,



Richard



Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 32bit

MySQL v8.0

Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 64bit
Antonio Linares
Posts: 44158
Joined: Thu Oct 06, 2005 05:47 PM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 07:31 AM

Dear Richard,

We are working to solve it asap

We apologize for these inconveniencies

regards, saludos

Antonio Linares
www.fivetechsoft.com
nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 08:11 AM
Antonio Linares wrote:Dear Richard,

We are working to solve it asap

We apologize for these inconveniencies
We do not expect you to do that.
We will provide an easy fix for you.
Regards



G. N. Rao.

Hyderabad, India
nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 08:18 AM
This problem appears only when both AppIsThemed() and FW_SetUnicode() is set to .T.
In all other cases it is working fine.

Now we request you to apply the following fix and let us know if everything is working fine.

Please open \fwh\source\classes\buttonb.prg

Please locate this method
Code (fw): Select all Collapse
METHOD ReDefine( nId, bAction, oWnd, nHelpId, cMsg,;
                 lUpdate, bWhen, bValid, cPrompt, lCancel, cBitmap, cPosText, cToolTip, lGDIP ) CLASS TButtonBmp

   DEFAULT cPrompt := "", cPosText := ::cPosDefault, lGDIP := .F.

   ::LoadBitmap( cBitmap )
   ::cPosText  = Upper( cPosText )
   ::cToolTip  = cToolTip
   ::lGDIP     = lGDIP

return ::Super:Redefine( nId, bAction, oWnd, nHelpId, cMsg, lUpdate, bWhen,;
                       bValid, cPrompt, lCancel )
Insert this line
Code (fw): Select all Collapse
::lUnicode  = oWnd:lUnicode
as indicted below:
Code (fw): Select all Collapse
METHOD ReDefine( nId, bAction, oWnd, nHelpId, cMsg,;
                 lUpdate, bWhen, bValid, cPrompt, lCancel, cBitmap, cPosText, cToolTip, lGDIP ) CLASS TButtonBmp

   DEFAULT cPrompt := "", cPosText := ::cPosDefault, lGDIP := .F.

   ::LoadBitmap( cBitmap )
   ::cPosText  = Upper( cPosText )
   ::cToolTip  = cToolTip
   ::lGDIP     = lGDIP
   ::lUnicode  = oWnd:lUnicode  // <-- INSERT THIS LINE HERE

return ::Super:Redefine( nId, bAction, oWnd, nHelpId, cMsg, lUpdate, bWhen,;
                       bValid, cPrompt, lCancel )
Please use this modified buttonb.prg and provide us your feedback.
Thank you both
Regards



G. N. Rao.

Hyderabad, India
richard-service
Posts: 866
Joined: Tue Oct 16, 2007 08:57 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 08:36 AM
nageswaragunupudi wrote:This problem appears only when both AppIsThemed() and FW_SetUnicode() is set to .T.
In all other cases it is working fine.

Now we request you to apply the following fix and let us know if everything is working fine.

Please open \fwh\source\classes\buttonb.prg

Please locate this method
Code (fw): Select all Collapse
METHOD ReDefine( nId, bAction, oWnd, nHelpId, cMsg,;
                 lUpdate, bWhen, bValid, cPrompt, lCancel, cBitmap, cPosText, cToolTip, lGDIP ) CLASS TButtonBmp

   DEFAULT cPrompt := "", cPosText := ::cPosDefault, lGDIP := .F.

   ::LoadBitmap( cBitmap )
   ::cPosText  = Upper( cPosText )
   ::cToolTip  = cToolTip
   ::lGDIP     = lGDIP

return ::Super:Redefine( nId, bAction, oWnd, nHelpId, cMsg, lUpdate, bWhen,;
                       bValid, cPrompt, lCancel )
Insert this line
Code (fw): Select all Collapse
::lUnicode  = oWnd:lUnicode
as indicted below:
Code (fw): Select all Collapse
METHOD ReDefine( nId, bAction, oWnd, nHelpId, cMsg,;
                 lUpdate, bWhen, bValid, cPrompt, lCancel, cBitmap, cPosText, cToolTip, lGDIP ) CLASS TButtonBmp

   DEFAULT cPrompt := "", cPosText := ::cPosDefault, lGDIP := .F.

   ::LoadBitmap( cBitmap )
   ::cPosText  = Upper( cPosText )
   ::cToolTip  = cToolTip
   ::lGDIP     = lGDIP
   ::lUnicode  = oWnd:lUnicode  // <-- INSERT THIS LINE HERE

return ::Super:Redefine( nId, bAction, oWnd, nHelpId, cMsg, lUpdate, bWhen,;
                       bValid, cPrompt, lCancel )
Please use this modified buttonb.prg and provide us your feedback.
Thank you both
Dear Mr.Rao

Now it's working.
Best Regards,



Richard



Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 32bit

MySQL v8.0

Harbour 3.2.0dev (r2503251254) => Borland C++ v7.7 64bit
nageswaragunupudi
Posts: 10733
Joined: Sun Nov 19, 2006 05:22 AM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 09:09 AM
Now it's working.
Glad to know.
Mr. Leandro
Can you too please test and provide your feedback?
Regards



G. N. Rao.

Hyderabad, India
leandro
Posts: 1816
Joined: Wed Oct 26, 2005 02:49 PM
Re: ButtonBmp problem with FWH2402
Posted: Thu Mar 07, 2024 02:02 PM
Mr. Rao, Antonio gracias por responder

Antonio te molesto si me envías las libs con el ajuste que menciona Mr. Rao, ya que al agregar el buttonb.prg modificado al proyecto de fivedit, sale el siguiente error:
Code (fw): Select all Collapse
Turbo Incremental Link 6.97 Copyright (c) 1997-2022 Embarcadero Technologies, Inc.
Fatal: Unable to open file 'BUTTONB.OBJ'
Link Error
no hemos podido comprobar si es la solución :oops: , de antemano gracias
Saludos
LEANDRO AREVALO
Bogotá (Colombia)
https://hymlyma.com
https://hymplus.com/
leandroalfonso111@gmail.com
leandroalfonso111@hotmail.com

[ Turbo Incremental Link64 6.98 Embarcadero 7.70 ] [ FiveWin 25.01 ] [ xHarbour 64 bits) ]
Static archive · New replies & topics via GitHub Discussions
