Silvio

FLAT NOROUND GDIP

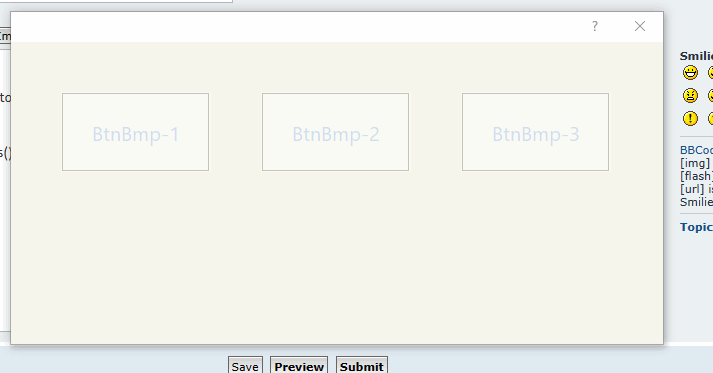

When these attributes are used, it doesn't work.

I have done tests without them, then it works.

There are so many ifs in the class that it would seem better to me to make a new one without all this legacy.

Best regards,

Otto

I used: C:\fwh2023\source\classes\btnbmp.prg

when I press a button then a black border forms how do I remove the black border?

function BtnBmpBorder()

   local oDlg, oFont, oBtn, aBtn[ 3 ]

   DEFINE FONT oFont NAME "Segoe UI" SIZE 0,-20
   DEFINE DIALOG oDlg SIZE 650,300 PIXEL TRUEPIXEL FONT oFont

   @  50, 50 BTNBMP    aBtn[ 1 ] PROMPT "BtnBmp-1"  SIZE 150,80 PIXEL OF oDlg FLAT NOBORDER GDIP NOROUND
   @  50,250 BTNBMP    aBtn[ 2 ] PROMPT "BtnBmp-2"  SIZE 150,80 PIXEL OF oDlg FLAT NOBORDER GDIP NOROUND
   @  50,450 BTNBMP    aBtn[ 3 ] PROMPT "BtnBmp-3"  SIZE 150,80 PIXEL OF oDlg FLAT NOBORDER GDIP NOROUND

   for each oBtn in aBtn
      WITH OBJECT oBtn
         :nClrText   := { |lOver,o| If( o:HasFocus(), CLR_WHITE, If( lOver, CLR_BLACK,  CLR_WHITE ) ) }
         :bClrGrad   := { |lOver,o| If( o:HasFocus(), METRO_RED, If( lOver, CLR_HGREEN, CLR_GREEN ) ) }
      END
   next

   ACTIVATE DIALOG oDlg CENTERED
   RELEASE FONT oFont

return nil

nageswaragunupudi wrote:Dear Mr. Silvio

when I press a button then a black border forms how do I remove the black border?

By default, this border, called FocusRect is drawn around the button in focus, same way as Windows OS paints TButton, TButtonBmp. This border indicates to the user which button has focus currently.

You can avoid painting this border, by specifying the clauses "FLAT" along with "NOBORDER".
In this case no FocusRect is drawn around the button in focus as a result, the user does not know which button has focus currently. The programmer has to use colors/gradients to indicate which button has focus.

I provide you a sample program, suppressing drawing of border while indicating the focused button with colors.

I used some simple colors for demonstration, but you can use your own colors/gradients according to your taste.

Code (fw): Select all Collapse

function BtnBmpBorder()

   local oDlg, oFont, oBtn, aBtn[ 3 ]

   DEFINE FONT oFont NAME "Segoe UI" SIZE 0,-20
   DEFINE DIALOG oDlg SIZE 650,300 PIXEL TRUEPIXEL FONT oFont

   @  50, 50 BTNBMP    aBtn[ 1 ] PROMPT "BtnBmp-1"  SIZE 150,80 PIXEL OF oDlg FLAT NOBORDER GDIP NOROUND
   @  50,250 BTNBMP    aBtn[ 2 ] PROMPT "BtnBmp-2"  SIZE 150,80 PIXEL OF oDlg FLAT NOBORDER GDIP NOROUND
   @  50,450 BTNBMP    aBtn[ 3 ] PROMPT "BtnBmp-3"  SIZE 150,80 PIXEL OF oDlg FLAT NOBORDER GDIP NOROUND

   for each oBtn in aBtn
      WITH OBJECT oBtn
         :nClrText   := { |lOver,o| If( o:HasFocus(), CLR_WHITE, If( lOver, CLR_BLACK,  CLR_WHITE ) ) }
         :bClrGrad   := { |lOver,o| If( o:HasFocus(), METRO_RED, If( lOver, CLR_HGREEN, CLR_GREEN ) ) }
      END
   next

   ACTIVATE DIALOG oDlg CENTERED
   RELEASE FONT oFont

return nil

When an element, such as a button, is focused on a webpage, the browser typically outlines it with a dotted or solid border. This behavior is akin to the "FocusRect" you mentioned. The focus outline is crucial for accessibility, as it assists users, especially those using keyboard navigation, to understand which element is currently active.

the btnbmp class takes the color of the text to create the internal box when it has focus

nageswaragunupudi wrote:

the btnbmp class takes the color of the text to create the internal box when it has focus

Yes, for painting focusrect in case of FLAT style buttons.

 if ::lFlatStyle
      ::nClrBorder = ::nClrText
   endif

Silvio,

If you need a focus rectangle in a specific color, you would have to implement the drawing yourself. You can do this by drawing a rectangle using functions like WndBoxClr, where you can specify the brush or pen color.

Otto

   local hPen, oCli  := ::GetCliRect()

  hPen = CreatePen( PS_SOLID, 1, nRGB( 255, 0, 0 ) )

  WndBoxClr( ::GetDC(), 1, 1, oCli:nBottom - 2, oCli:nRight - 2, hPen )

  DeleteObject( hPen )

nageswaragunupudi wrote:Mr Silvio

Please make a small modificatin in btnbmp.prg:
Please locate these lines in the method PaintBorder

Code (fw): Select all Collapse

            RoundBox( ::hDC, 1, 1, ::nWidth - 2, ::nHeight - 1, nRound, nRound, XEval( ::nClrBorder, ::lMover, Self ) )
            if ::lFocused
               RoundBox( ::hDC, 3, 3, ::nWidth - 4, ::nHeight - 3, nRound, nRound, XEval( ::nClrText, ::lMover, Self ) )
            endif

Please change ::nClrText to ::nClrBorder
