Dear Antonio, All Users

I test build Sample\ToolBar4.prg code.

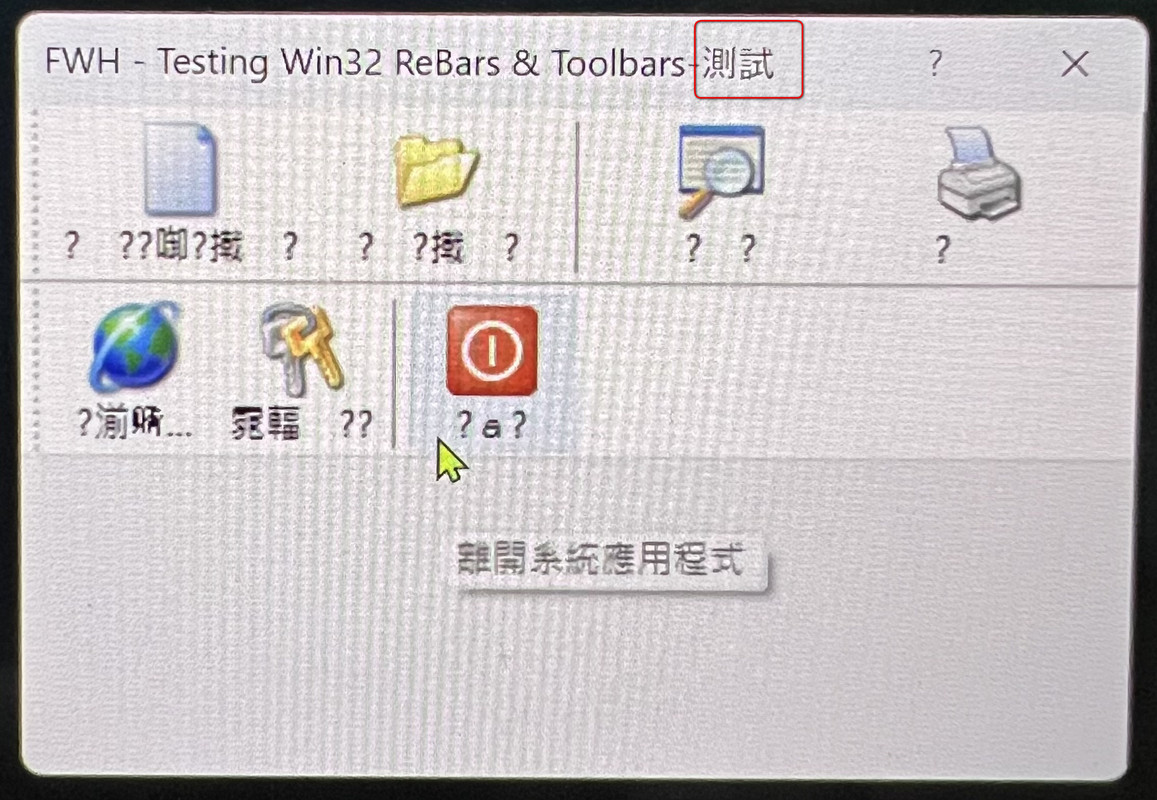

First Prg code is BIG5. Look Title Chinese word not work Red box
Button Text and Tooltip Text working fine.


so I change Prg code BIG5 to DOS-UTF-8 and save as file. Run it
Look Title Chinese word Working fine Red box
But Button Chinese Text not work and Tooltip Text working fine.

// Win32 TReBar and TToolBar sample into DIALOGS

#include "FiveWin.ch"

REQUEST HB_Lang_ZH, HB_CODEPAGE_UTF8

function Main()

local oWnd, oReBar, oToolBar1, oToolBar2, oImageList1, oImageList2

DEFINE DIALOG oWnd NAME "DIALOG" TITLE "FWH - Testing Win32 ReBars & Toolbars-測試"

ACTIVATE DIALOG oWnd ;
ON INIT CREABARRA( @oImageList1, @oImageList2, oWnd )

oImageList1:End()
oImageList2:End()

return nil

FUNCTION CREABARRA( oImageList1, oImageList2, oWnd )

LOCAL oReBar, oToolBar1, oToolBar2

// First we build the imagelists with all the bitmaps
oImageList1 = TImageList():New( 32, 32 ) // width and height of bitmaps

oImageList1:AddMasked( TBitmap():Define( "new",, oWnd ), nRGB( 255, 0, 255 ) )
oImageList1:AddMasked( TBitmap():Define( "open",, oWnd ), nRGB( 255, 0, 255 ) )
oImageList1:AddMasked( TBitmap():Define( "search",, oWnd ), nRGB( 255, 0, 255 ) )
oImageList1:AddMasked( TBitmap():Define( "print",, oWnd ), nRGB( 255, 0, 255 ) )

oImageList2 = TImageList():New( 32, 32 ) // width and height of bitmaps
oImageList2:AddMasked( TBitmap():Define( "internet",, oWnd ), nRGB( 255, 0, 255 ) )
oImageList2:AddMasked( TBitmap():Define( "keys",, oWnd ), nRGB( 255, 0, 255 ) )
oImageList2:AddMasked( TBitmap():Define( "quit",, oWnd ), nRGB( 255, 0, 255 ) )

// Now we create the rebar
oReBar = TReBar():New( oWnd )

// Now we create the toolbars and add the buttons
oToolBar1 = TToolBar():New( oReBar, 50, 50, oImageList1 )
oToolBar1:AddButton( { || MsgInfo( "New" ) }, "新增", "開啟新增專案" )
oToolBar1:AddButton( { || MsgInfo( "Open" ) }, "開啟", "開啟專案" )
oToolBar1:AddSeparator()
oToolBar1:AddButton( { || MsgInfo( "Search" ) }, "搜尋", "搜尋" )
oToolBar1:AddButton( { || MsgInfo( "Print" ) }, "列印一張報表", "列印" )

oToolBar2 = TToolBar():New( oReBar, 50, 50, oImageList2 )
oToolBar2:AddButton( { || MsgInfo( "Upgrade" ) }, "Search for new versions",;
"更新..." )
oToolBar2:AddButton( { || MsgInfo( "Users" ) }, "Users management", "使用者" )
oToolBar2:AddSeparator()
oToolBar2:AddButton( { || oWnd:End() }, "離開系統應用程式", "離開" )

// We set the widths for each toolbar
oToolBar1:nWidth = 290
oToolBar2:nWidth = 300

// Now we insert the toolbars into the rebar
oReBar:InsertBand( oToolBar1 )
oReBar:InsertBand( oToolBar2 )

RETURN .T.

//---------------------------------------------------------------------------------------------------------------------//

INIT PROCEDURE inv_init

HB_LangSelect( "zh" )
HB_SetCodePage( "UTF8" )
HB_CDPSELECT( "UTF8" )

Fw_SetUnicode( .T. )

SET _3DLook ON
SET DELETE ON
SET SoftSeek On
SET DATE FORMAT "YYYY.MM.DD"
SET OPTIMIZE ON

RETURN NIL

Any idea or solution?

Dear Antonio,

Look it.

https://forums.fivetechsupport.com/viewtopic.php?p=263171&hilit=toolbar#p263171

I think Mr.Rao not finished this problem.
He think finished only FWH buttonbar..etc objects. Not ToolBar and Rebar Win32 component.

Any idea?

Dear Richard,

We need to understand what Mr. Rao did and apply it to these classes too

Dear Richard,

I am reviewing Class TRebar and TToolbar and both have unicode support implemented by Rao.

What FWH version are you testing ?

Antonio Linares wrote: Dear Richard,

I am reviewing Class TRebar and TToolbar and both have unicode support implemented by Rao.

What FWH version are you testing ?

Dear Antonio,

I use these version below:

FWH32 2504.02
FWH64 2504.02

Last testing. Not working.

Dear Richard,

Is this correct ?

Antonio Linares wrote: Dear Richard,

Is this correct ?

Dear Antonio,

You need to build two ToolBar4.prg code. One is save as big5 code PRG and another is save as UTF8 code PRG.

Whats the difference in the above code that you posted ?

thanks

Antonio Linares wrote: Whats the difference in the above code that you posted ?

thanks

Dear Antonio,

Sometimes we need to save PRG to UTF8 code.
Because Chinese word over 65535 big5 so Extend to UTF8
Ex.
I add "堃" Chinese Unicode word not big5

DEFINE DIALOG oWnd NAME "DIALOG" TITLE "FWH - Testing Win32 ReBars & Toolbars-測試-堃"

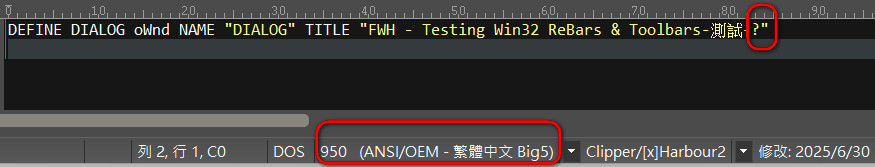

This is a big5 code PRG and "堃" Chinese word Become garbled

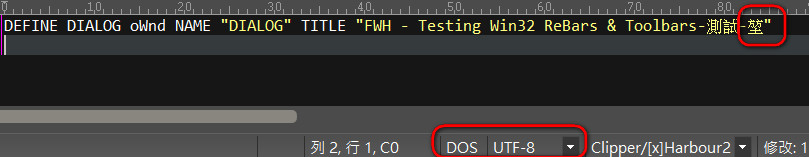

This is a UTF8 code PRG and "堃" Chinese word NO Problem

Dear Richard,

Could you please review this and let mw know if you agree with it and if this could help us with this issue ?

https://x.com/i/grok/share/2b2KmGQXN6FNFHId4FAOwkRqT

many thanks!

Antonio Linares wrote: Dear Richard,

Is this correct ?

Dear Antonio,

Yes, it's correct. How do make it? I want to know it...

Dear Richard,

We have fixed the unicode support for Windows API toolbars.

We are sending you a new FWH 25.06 build

Many thanks for your feedback :!: :wink:

Antonio Linares wrote: Dear Richard,

We have fixed the unicode support for Windows API toolbars.

We are sending you a new FWH 25.06 build

Many thanks for your feedback :!: :wink:

Dear Antonio,

I just testing Unicode support for Windows API toolbars. 32bit and 64bit working fine.

Thank you.
