Buenos dÃas,
Buscando alguna funcion para ejecutar un ejecutable, veo que la unica disponible....
Me parece que en hix.exe faltan las funciones de manejo de la tabla de simbolos.
En realidad queria saber que funciones tiene disponibles hix.exe, más allá de las que interfacean con la web y que están en la lista https://github.com/carles9000/hix/wiki/Functions
¿ Se podrÃa hacer una lista de las funciones disponibles o mejor no despertar a la fiera ?
Salu2
Querido Paco,
symbols.prg
function Main()
local n, lAll := .F., lCode := .F., lNonCode := .F.
local cHtml := ""
local hPost := UPost()
local cFilter := "ALL"
if hb_HHasKey( hPost, "filter" )
cFilter := hPost[ "filter" ]
endif
do case
case cFilter == "CODE"
lCode := .T.
case cFilter == "NONCODE"
lNonCode := .T.
otherwise
lAll := .T.
endcase
for n = __DynsCount() to 1 step -1
if lAll .or. lCode
if __DynsIsFun( n )
cHtml += '<p style="color:green; margin: 2px 0;">' + AllTrim( Str( __DynsCount() - n + 1 ) ) + ". " + __DynsGetName( n ) + "</p>" + hb_EoL()
endif
endif
if lAll .or. lNonCode
if ! __DynsIsFun( n )
cHtml += '<p style="color:blue; margin: 2px 0;">' + AllTrim( Str( __DynsCount() - n + 1 ) ) + ". " + __DynsGetName( n ) + "</p>" + hb_EoL()
endif
endif
next
return View( "symbols", "cContent", cHtml )
//----------------------------------------------------------------------------//
function View( cName, cParamName, uParamValue )
local cData
local cViewPath := "./views/" + cName + ".view"
if File( cViewPath )
cData = MemoRead( cViewPath )
while ReplaceBlocks( @cData, "{{", "}}", cParamName, uParamValue )
end
else
cData = "<h2>" + cName + " not found!</h2>"
endif
return cData
//----------------------------------------------------------------------------//
function ReplaceBlocks( cCode, cStartBlock, cEndBlock, cParamName, uParamValue )
local nStart, nEnd, cBlock, nQ1, nQ2
local lReplaced := .F.
while ( nStart := At( cStartBlock, cCode ) ) != 0 .and. ;
( nEnd := At( cEndBlock, cCode ) ) != 0
cBlock = SubStr( cCode, nStart + Len( cStartBlock ), nEnd - nStart - Len( cEndBlock ) )
// Keep it simple for this example, only support variable replacement or View call
if "View" $ cBlock
// Manual parsing to avoid macro compiler issues with function visibility: View("name")
nQ1 := At( '"', cBlock )
nQ2 := RAt( '"', cBlock )
if nQ1 > 0 .and. nQ2 > nQ1
cCode = SubStr( cCode, 1, nStart - 1 ) + ;
View( SubStr( cBlock, nQ1 + 1, nQ2 - nQ1 - 1 ) ) + ;
SubStr( cCode, nEnd + Len( cEndBlock ) )
else
cCode = SubStr( cCode, 1, nStart - 1 ) + ;
"" + ;
SubStr( cCode, nEnd + Len( cEndBlock ) )
endif
else
// Simple variable replacement
if !Empty( cParamName ) .and. AllTrim( cBlock ) == cParamName
cCode = SubStr( cCode, 1, nStart - 1 ) + ;
ValToChar( uParamValue ) + ;
SubStr( cCode, nEnd + Len( cEndBlock ) )
else
// Unknown block, just remove brackets
cCode = SubStr( cCode, 1, nStart - 1 ) + ;
"" + ;
SubStr( cCode, nEnd + Len( cEndBlock ) )
endif
endif
lReplaced = .T.
end
return lReplaced
//----------------------------------------------------------------------------//
function ValToChar( u )
local cType := ValType( u )
local cResult
do case
case cType == "C"
cResult = u
case cType == "N"
cResult = AllTrim( Str( u ) )
otherwise
cResult = ""
endcase
return cResultsymbols.view
<!DOCTYPE html>
<html>
<head>
<title>System Symbols</title>
{{View("style")}}
</head>
<body>
<div class="container" style="display: flex; flex-direction: column; height: 90vh; padding-bottom: 20px;">
<h1>System Symbols</h1>
<form method="POST" action="symbols.prg" style="margin-bottom: 15px; text-align: center; flex-shrink: 0;">
<button type="submit" name="filter" value="ALL" class="btn" style="width: auto; margin: 0 5px; background: #667eea;">All</button>
<button type="submit" name="filter" value="CODE" class="btn" style="width: auto; margin: 0 5px; background: green;">Functions</button>
<button type="submit" name="filter" value="NONCODE" class="btn" style="width: auto; margin: 0 5px; background: blue;">Non-Functions</button>
</form>
<div style="text-align: left; flex: 1; overflow-y: auto; border: 1px solid #eee; padding: 10px; border-radius: 4px;">
{{cContent}}
</div>
</div>
</body>
</html>
Gracias Antonio, en cuanto saque hueco lo pruebo. Me equivoqué y si habia acceso, como no podia ser de otra forma, a la tabla de simbolos. Gracias de nuevo
Bien, la lista de funciones me sirve para comprobar que efectivamente hb_ProcessRun() y hb_Run() no están enlazadas en Hix.exe y por tanto no se puede ejecutar un ejecutable, al menos de la manera habitual.
Lo mas simple es editar el EXE (view desde el mismo Total Commander) y buscar por el nombre del sÃmbolo :idea:
Tienes WAPI_SHELLEXECUTE() :wink:
La que más control da es hb_processRun() pero voy a probar wapi_shellexecute() que igual me es suficiente
hb_processRun() - Ejecución de procesos avanzada
Función más flexible para ejecutar procesos con control de entrada/salida:
Result := hb_processRun("mi_programa.exe", cStdIn, @cStdOut, @cStdErr, lAsync)Hello, Yes, this is exactly the topic I’ve been working on over the last days.
For me this is mainly a design question, not a missing function problem.
In a web context, long-running jobs simply don’t belong inside the web server process. Whether it’s Hix, PHP, or any other web runtime: blocking calls, process execution with I/O, or long database work will always clash with request/response handling.
My conclusion so far:
short, reactive logic → web layer (Hix / PHP / JS)
long-running or stateful jobs → external service process
Node.js, Python or even a standalone Harbour EXE
communication via HTTP or WebSocket
This keeps the web layer responsive and avoids timeouts, while still allowing full control over longer jobs.
So in my view, Hix behaving this way actually confirms a clean separation of concerns, rather than being a limitation.
Saludos Otto
Hi Otto,,,,, been following your posts,,,, very interesting to me,,,, sorry i had no comments so far, but I'm glad you are making all this extensive investigation....
Just something I want to share with you, is that HIX model works in a different way than the one you exposed, as i understand it.....
HIX->HTML->AJAX->JS
HIX becomes "PHP", JS can make an events listener and communicate with HIX, via AJAX using Sockets...
Since HIX is the server, then no PHP to access, unless you create a php api on another server,,,, then you will be going in circles, creating a layer on top of several layers == Prone to multi-failures,,,, and extensive knowledge of multiple platforms....
HIX becoming PHP is a gigantic improvement, so you do not have to learn PHP,,, but you still have to be an expert on Html, Css, Java Script, Ajax, etc..., and without using an Ai, that will be impossible for the regular FiveWinner..., so if we see it the long way,,,, is caving in the use of Fivewin and only using Harbour semantic language...
=====>
Bayron Landaverry
xBasePHP.com
(215)2226600 Philadelphia,PA, USA
MayaBuilders@gMail.com
Guatemala
FWH25.06--Harbour 3.0.0--BCC7.7--UEstudio 10.10
Windows 10
FiveWin, One line of code and it's done...
Thanks Bayron for sharing your perspective and for following the discussion. I appreciate your input and the time you took to explain how you see the Hix model. My intention was not to challenge Hix itself, but simply to clarify the data flow and the separation of responsibilities in the architecture I’m proposing.
The model is exactly this – and nothing else:
Browser / UI ↓ Request (HTTP or WebSocket) ↓ lightweight web layer (Hix) ↓ Harbour microservice (EXE)
Important clarifications
Hix remains the web server routing request/response handling optional WebSocket upgrade no long-running jobs
The Harbour microservice is a separate process standalone EXE stateful blocking operations allowed controlled lifecycle clearly defined responsibility
Best regards, Otto
Hi Otto,,, our conversation was more about microservices, but HIX is absolutely very powerful,,,, it can create microservices as you say,,,, once the sql libraries are added to it,,,, and the multi-thread from harbour,,, you can have something as strong as apache,,,, here is a sample,,,, with persistent and transient microservices....
I love that HIX is and will serve the community,,, I even donated to the HIX event, even when i knew I wasn't going to be able to assist... I also buy Fivewin from time to time, not because i use it, but because i love it, since i saw it in compuserve magazine.... and I would love to see HIX and Fivewin growing along Harbour and xHarbour,,,, we all are working to make sure xBase coding doesn't die...
//backend_persistent.prg
// HIX Backend - Persistent Service
// Uses a simple JSON file to simulate persistent state across requests,
// bypassing thread/process isolation issues.
#pragma -w0
#pragma -es0
FUNCTION Main()
LOCAL hState := {=>}
LOCAL cStateFile := "server_state.json"
LOCAL cJson_In, cJson_Out
LOCAL hResponse := {=>}
// 1. LOAD STATE (Persistence Layer)
IF File( cStateFile )
cJson_In := MemoRead( cStateFile )
hState := hb_jsonDecode( cJson_In )
ELSE
hState[ "hits" ] := 0
hState[ "start_time" ] := Time()
ENDIF
// 2. MODIFY STATE
hState[ "hits" ] := hState[ "hits" ] + 1
// 3. SAVE STATE
hb_MemoWrit( cStateFile, hb_jsonEncode( hState ) )
// 4. PREPARE RESPONSE
hResponse[ "type" ] := "PERSISTENT"
hResponse[ "status" ] := "ok"
hResponse[ "hits" ] := hState[ "hits" ]
hResponse[ "server_start" ] := hState[ "start_time" ]
hResponse[ "message" ] := "State Updated"
?? hb_jsonEncode( hResponse )
RETURN ""//backend_transient.prg
// HIX Backend - Transient Service
// Stateless microservice. Does not read or write the shared state file.
#pragma -w0
#pragma -es0
FUNCTION Main()
LOCAL hResponse := {=>}
// 1. DO WORK (Stateless)
hResponse[ "type" ] := "TRANSIENT"
hResponse[ "status" ] := "ok"
hResponse[ "server_now" ] := Time()
hResponse[ "message" ] := "Just a quick calculation"
// We do NOT return 'hits' because we don't know them and don't care.
?? hb_jsonEncode( hResponse )

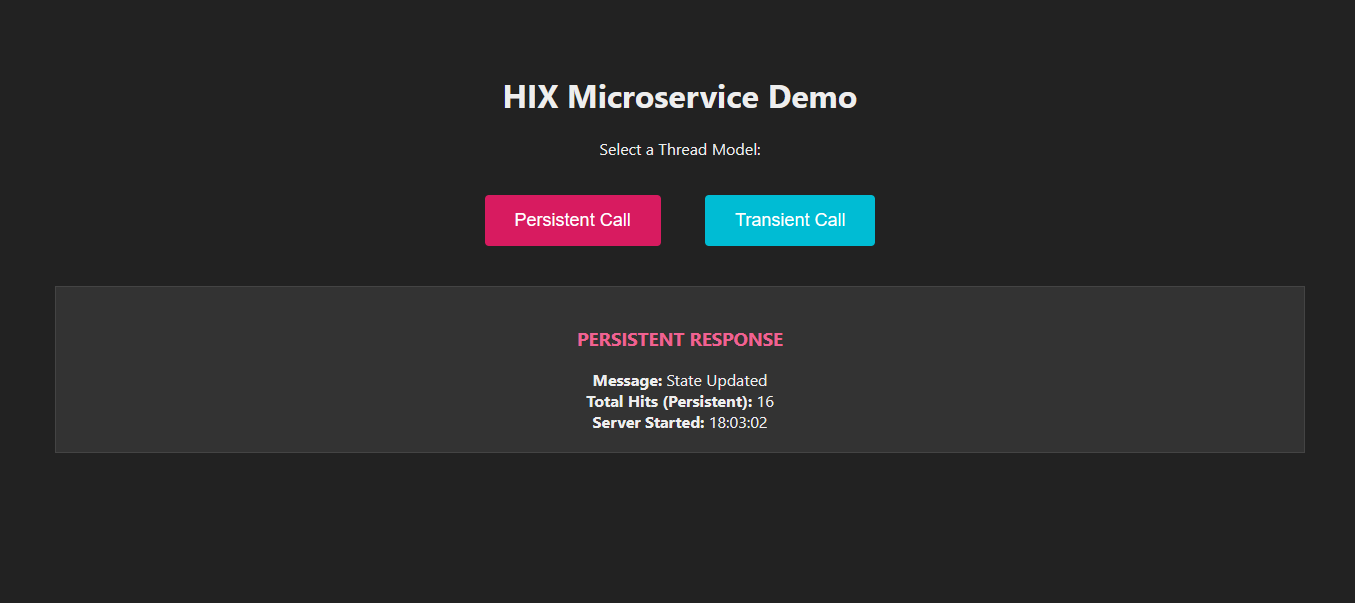

RETURN ""//client.prg
// HIX Client Logic (Server-Side)
// Uses a FUNCTIONAL approach instead of CLASS to avoid HRB syntax issues.
// Accessed via http://localhost:8080/client.prg
// Include HIX header just in case, though we rely on pure functions
#include "c:\xampp2025\htdocs\webx\hix\hix.ch"
FUNCTION Main()
LOCAL hPage := THtml_New()
THtml_SetTitle( hPage, "HIX Microservice Client" )
THtml_CSS( hPage, "body { font-family: 'Segoe UI', sans-serif; background: #222; color: #eee; text-align: center; padding: 50px; }" )
THtml_CSS( hPage, "button { padding: 15px 30px; font-size: 18px; margin: 20px; cursor: pointer; border: none; border-radius: 4px; transition: transform 0.1s; }" )
THtml_CSS( hPage, ".btn-p { background: #d81b60; color: white; }" ) // Pink for Persistent
THtml_CSS( hPage, ".btn-t { background: #00bcd4; color: white; }" ) // Cyan for Transient
THtml_CSS( hPage, "button:active { transform: scale(0.95); }" )
THtml_CSS( hPage, "#result { margin-top: 20px; padding: 20px; border: 1px solid #444; background: #333; min-height: 100px; }" )
THtml_AddContent( hPage, "<h1>HIX Microservice Demo</h1>" )
THtml_AddContent( hPage, "<p>Select a Thread Model:</p>" )
// Two distinct buttons calling different endpoints
THtml_AddButton( hPage, "Persistent Call", "callService('backend_persistent.prg')", "btn-p" )
THtml_AddButton( hPage, "Transient Call", "callService('backend_transient.prg')", "btn-t" )
THtml_AddContent( hPage, "<div id='result'>Ready...</div>" )
// JS Logic - Corrected JSON escaping
THtml_AddScript( hPage, ;
"async function callService( endpoint ) { " + ;
" const resDiv = document.getElementById('result'); " + ;
" resDiv.innerHTML = 'Executing ' + endpoint + '...'; " + ;
" try { " + ;
" const resp = await fetch(endpoint + '?_=' + Date.now()); " + ;
" let text = await resp.text(); " + ;
" text = text.replace('NIL', '').trim(); " + ;
" const data = JSON.parse(text); " + ;
" let html = ''; " + ;
" html += '<h3 style=\x22color:' + (data.type==='PERSISTENT'?'#f06292':'#4dd0e1') + '\x22>' + data.type + ' RESPONSE</h3>'; " + ;
" html += '<b>Message:</b> ' + data.message + '<br>'; " + ;
" if(data.hits) html += '<b>Total Hits (Persistent):</b> ' + data.hits + '<br>'; " + ;
" if(data.server_start) html += '<b>Server Started:</b> ' + data.server_start + '<br>'; " + ;
" if(data.server_now) html += '<b>Current Time:</b> ' + data.server_now + '<br>'; " + ;
" resDiv.innerHTML = html; " + ;
" } catch(e) { " + ;
" resDiv.innerHTML = 'Error: ' + e + '<br><small>Raw: ' + (typeof text !== 'undefined' ? text : 'Network Error') + '</small>'; " + ;
" } " + ;
"}" )
?? THtml_GetHtml( hPage )
RETURN ""
// --------------------------------------------------------------------------
// PSEUDO-CLASS THtml (Using Hash)
// --------------------------------------------------------------------------
FUNCTION THtml_New()
LOCAL hObj := {=>}
hObj[ "title" ] := "HIX Page"
hObj[ "head" ] := ""
hObj[ "body" ] := ""
hObj[ "script" ] := ""
RETURN hObj
FUNCTION THtml_SetTitle( hObj, cText )
hObj[ "title" ] := cText
RETURN NIL
FUNCTION THtml_CSS( hObj, cRules )
hObj[ "head" ] += "<style>" + cRules + "</style>" + Chr(13)+Chr(10)
RETURN NIL
FUNCTION THtml_AddContent( hObj, cHtml )
hObj[ "body" ] += cHtml + Chr(13)+Chr(10)
RETURN NIL
FUNCTION THtml_AddButton( hObj, cLabel, cAction, cClass )
LOCAL cCls := ""
IF ValType(cClass) == "C" ; cCls := " class='" + cClass + "'" ; ENDIF
hObj[ "body" ] += '<button' + cCls + ' onclick="' + cAction + '">' + cLabel + '</button>' + Chr(13)+Chr(10)
RETURN NIL
FUNCTION THtml_AddScript( hObj, cJs )
hObj[ "script" ] += cJs + Chr(13)+Chr(10)
RETURN NIL
FUNCTION THtml_GetHtml( hObj )
LOCAL cHtml := ""
cHtml += "<!DOCTYPE html>" + Chr(13)+Chr(10)
cHtml += "<html>" + Chr(13)+Chr(10)
cHtml += "<head>" + Chr(13)+Chr(10)
cHtml += " <meta charset='UTF-8'>" + Chr(13)+Chr(10)
cHtml += hObj["head"]
cHtml += " <title>" + hObj["title"] + "</title>" + Chr(13)+Chr(10)
cHtml += "</head>" + Chr(13)+Chr(10)
cHtml += "<body>" + Chr(13)+Chr(10)
cHtml += hObj["body"]
cHtml += " <script>" + Chr(13)+Chr(10)
cHtml += hObj["script"]
cHtml += " </script>" + Chr(13)+Chr(10)
cHtml += "</body>" + Chr(13)+Chr(10)
cHtml += "</html>"
RETURN cHtmlYou can have multi-threads, instead of separate .exe files, make your code for a persistent database, so you dont have to wait 1 minute for it to load,,,, Harbour is very powerful...
I'm not challenging your approach either,,,, but multiple .exe, is a problem,,,, which one is compiled?, which one is not?,,, instead of a single point of source.... Apache is a single .exe serving billions of microservices,,,, Harbour is as good, or we will soon find out...
=====>
Bayron Landaverry
xBasePHP.com
(215)2226600 Philadelphia,PA, USA
MayaBuilders@gMail.com
Guatemala
FWH25.06--Harbour 3.0.0--BCC7.7--UEstudio 10.10
Windows 10
FiveWin, One line of code and it's done...
Thanks Bayron for sharing the example and for your continued support of Hix and FiveWin. I think we actually agree on most fundamentals. The difference is mainly how we look at the workflow and responsibilities, not at Harbour’s capabilities.
To make this clearer, I’d like to put the two approaches side by side.
Hix-internal workflow (as in your example) Browser → HTTP request → Hix executes PRG → optional file-based state (JSON) → immediate response to UI
In this model:
logic runs inside the web request persistence is simulated via files there is no job lifecycle beyond the request the UI always drives execution
This works well as your code shows and clearly shows what Hix can do.
Our workflow (Hix + Harbour desktop program) Browser / UI → Request to Hix → Hix triggers Harbour desktop EXE (ShellExecute + unique job id) → Harbour program runs independently → writes result/status (JSON or file) → UI fetches or polls the result when it is ready
Here:
Hix stays lightweight and reactive long or blocking work runs outside the web process state belongs to the job, not to the request lifecycle, logging, recovery and cleanup are explicit
This is not about adding layers, but about separating roles early.
About Node.js The only reason I mentioned Node.js earlier is that it is optional and portable, not because it is required. A setup like: Harbour (worker) ↔ WebSocket ↔ Node.js (SQL adapter) ↔ SQL database
is simply one interesting option, especially for SQL access: no SQL libraries inside Harbour no additional DLL complexity clean isolation and well-maintained drivers
But to be very clear: Node.js is not mandatory at all.
Hix can directly trigger and communicate with an existing Harbour desktop program. No PHP, no additional framework, no extra runtime is required.
The core concern
What worries me from a product and long-term maintenance perspective is that once we start adding:
SQL libraries threading more dependencies directly into the Hix process, we slowly turn a clean web layer into a hard-to-maintain monolith.
My intention is not to limit Hix, but to protect it from becoming overloaded with responsibilities.
Best regards, Otto
Antonio Linares wrote:Tienes WAPI_SHELLEXECUTE() :wink:
Sólo querÃa decir que he estado usando wapi_ShellExecute() hasta hace poco y me ha dado muchos quebradores de cabeza en forma de cuelgues inexplicables. Desde que uso hb_ProcessRun() todo va bien. Asà que desaconsejo el uso de aquella.
Buena noche
Solo para analizar...
<!DOCTYPE html>
<html>
<head>
<title>Cliente + Servidor JSON</title>
</head>
<body>
<h2>Datos sincronizados</h2>
<ul id="lista"></ul><form onsubmit="agregarDato(); return false;">
<input type="text" id="nuevoDato" placeholder="Escribe un dato">
<button type="submit">Agregar</button>
</form><script>
async function cargarDatos() {
let res = await fetch("http://localhost/cgi-bin/miscript.prg");
let datos = await res.json();
localStorage.setItem("misDatos", JSON.stringify(datos));
mostrarDatos(datos);
}function mostrarDatos(datos) { let lista = document.getElementById("lista"); lista.innerHTML = ""; datos.forEach(d => { let li = document.createElement("li"); li.textContent = d; lista.appendChild(li); }); } async function agregarDato() { let dato = document.getElementById("nuevoDato").value; if(dato) { let datosLocales = JSON.parse(localStorage.getItem("misDatos")) || []; datosLocales.push(dato); localStorage.setItem("misDatos", JSON.stringify(datosLocales)); // Enviar al servidor await fetch("http://localhost/cgi-bin/miscript.prg", { method: "POST", headers: { "Content-Type": "application/json" }, body: JSON.stringify(datosLocales) }); document.getElementById("nuevoDato").value = ""; cargarDatos(); } } // Cargar datos iniciales cargarDatos();</script>
</body>
</html>
#include "hbjson.ch"
CLASS MiClase
DATA aDatos INIT {}
METHOD Init()
METHOD GuardarLocal()
METHOD CargarLocal()
ENDCLASS
METHOD Init() CLASS MiClase
::aDatos := {}
RETURN Self
METHOD GuardarLocal() CLASS MiClase
LOCAL cJson := hb_jsonEncode( ::aDatos )
MemoWrit( "localstore.json", cJson )
RETURN NIL
METHOD CargarLocal() CLASS MiClase
LOCAL cJson := MemoRead( "localstore.json" )
IF !Empty( cJson )
::aDatos := hb_jsonDecode( cJson )
ENDIF
RETURN NIL
// http://localhost/cgi-bin/miscript.pr
#include "hbjson.ch"
PROCEDURE Main()
LOCAL oObj := MiClase():New()
LOCAL cNewData := GetEnv( "POSTDATA" )
LOCAL cJsonoObj:CargarLocal()
// Si el cliente envió datos desde su localStorage
IF !Empty( cNewData )
cJson := hb_jsonDecode( cNewData )
oObj:aDatos := cJson
oObj:GuardarLocal()
ENDIFcJson := hb_jsonEncode( oObj:aDatos )
// Responder solo con JSON (sin HTML)
? "Content-Type: application/json"
? ""
? cJson
RETURN
