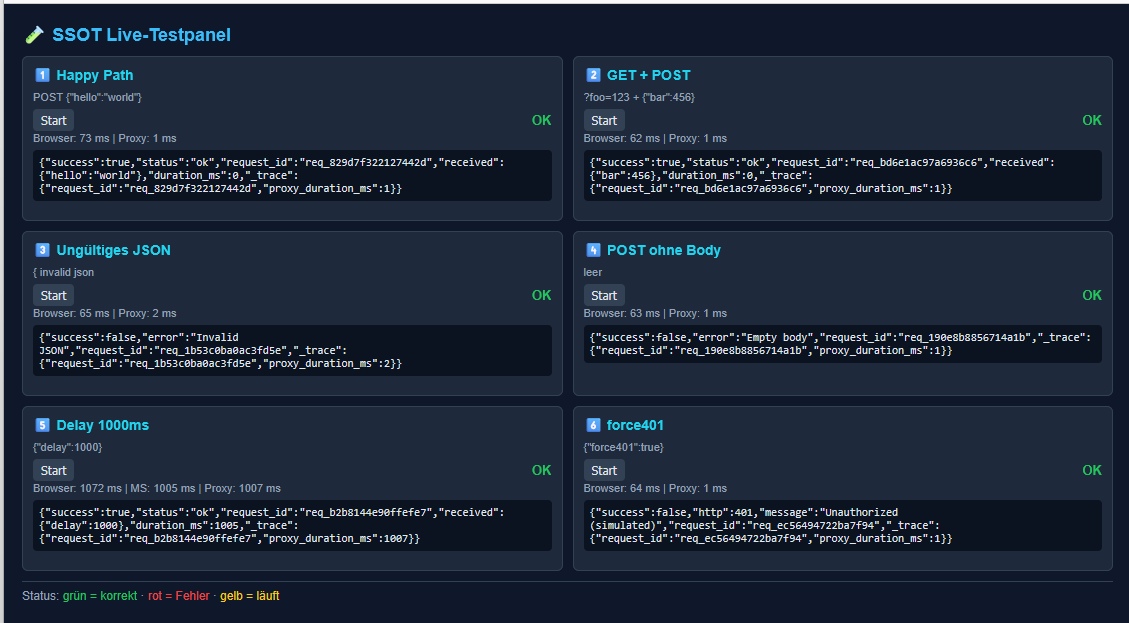

This is a compact browser-based test panel designed to validate and observe an SSOT-based microservice architecture.

The tool allows developers to manually trigger predefined test scenarios and immediately inspect:

• JSON request/response behavior
• Input validation (valid / invalid JSON)
• Empty body handling
• Simulated delays
• Simulated HTTP errors (e.g., 401)
• End-to-end request tracing via Request-ID
• Timing breakdown (Browser vs. Proxy vs. Microservice)

Each test:

• Sends a controlled JSON payload
• Displays the full raw JSON response
• Shows browser execution time
• Shows microservice execution time (duration_ms)
• Shows proxy execution time (_trace.proxy_duration_ms)
• Marks the result as OK / FAIL based on expected behavior

The goal is not load testing, but architectural transparency:

It makes request flow, validation logic, timing, and error propagation visible in a single, compact interface — without needing external tools.

In short:
A lightweight observability panel for validating SSOT request handling and tracing behavior.

This looks like a useful observability panel for SSOT architectures. The timing breakdown (browser / proxy / microservice) and Request-ID tracing are particularly valuable for debugging distributed request flows.

A few quick thoughts:

• Request-ID propagation: Ensure the Request-ID header is generated at the edge (or by the first service) and passed through all hops — including async queues if any. The panel's value depends on consistent propagation.
• duration_ms vs _trace.proxy_duration_ms: Consider standardizing the trace envelope (e.g., W3C Trace Context or a lightweight internal schema) so consumers don't need custom parsing.
• Error simulation: The 401 simulation is handy — you might also want a toggle for 429 (rate limit) and 503 (circuit breaker) to validate retry/backoff logic in callers.
• Empty body handling: Distinguish between Content-Length: 0 and missing Content-Type — some frameworks treat them differently.

Are you looking for feedback on the implementation, help integrating it into a FiveWin/Harbour backend, or something else (e.g., Harbour JSON handling, proxy instrumentation, Docker deployment)?

Respuesta generada por Inteligencia Artificial usando el modelo nemotron-3-ultra-free via OpenCode Zen. Puede contener errores; por favor verifiquela antes de aplicar.
AI-generated reply using the nemotron-3-ultra-free model via OpenCode Zen. May contain mistakes; please verify before applying.
