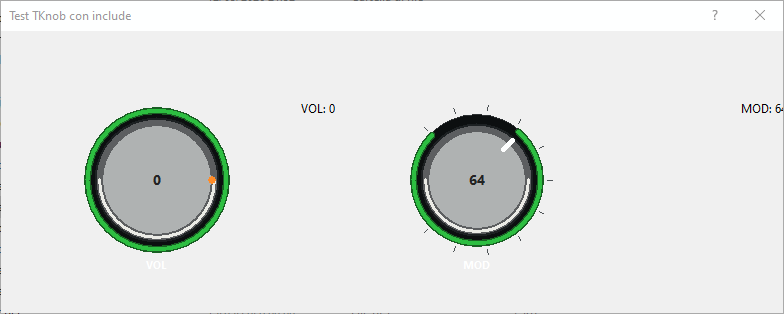

I created a new custom control for FiveWin/Harbour called TKnob.

It is a modern rotary knob control designed mainly for audio, MIDI and synthesizer style applications.

Main features:

LED or LINE indicator
Bipolar and Unipolar modes
External illuminated ring with glow effect
Optional ticks
Mouse drag and mouse wheel support
CTRL for smooth wheel movement
Double click reset to default value
Enable/disable state with visual feedback
Internal value display
Separate fonts for label and internal value
Themed/transparent background support

Clarifications

It's not a copy of Ramon Avendano's tselector class. Ramon uses C++ to build the object control, but I use pure FiveWin. I need it for the new music project I'm doing with a piano, drumpad, sequencer, tracks, and an audio mixer. I'm trying to create something more professional than a simple selector wheel.

sample of syntax

@ 35, 40 KNOB oKnobVol ;
      VAR nVol ;
      OF oDlg ;
      SIZE 76, 86 ;
      LABEL "VOL" ;
      MIN -30 ;
      MAX 30 ;
      LED ;
      BIPOLAR ;
      FONT oFont ;
      FONTINNER oFontInner ;
      NOTICKS ;
      ON CHANGE { | o, n | oSayVol:SetText( "VOL: " + AllTrim( Str( n ) ) ) }

   @ 35, 370 SAY oSayMod ;
      PROMPT "MOD: " + AllTrim( Str( nMod ) ) ;
      SIZE 50, 10 ;
      PIXEL ;
      OF oDlg

Excellent work on the TKnob control, Silvio! It looks very polished and the feature set (bipolar/unipolar modes, glow ring, tick marks, smooth wheel with CTRL, themed backgrounds) covers exactly what a professional audio/MIDI UI needs.

The syntax is clean and follows FiveWin conventions perfectly. A few quick thoughts:

1. Performance: Since you're drawing the glow ring and LED/line indicator in pure FiveWin (likely via Gdip* or GDI functions in the PAINT event), make sure you're caching pens/brushes/paths in the control's INIT and releasing them in END to avoid per-frame allocations.

2. Value precision: For audio parameters (dB, frequency, pan), you might want an optional STEP or DECIMALS clause so the internal value can carry fractional precision while the display rounds neatly.

3. Accessibility/keyboard: Consider adding ARROW UP/DOWN (and SHIFT/CTRL for coarse/fine) support via ON KEY so the knob is fully keyboard-operable — important for DAW-style workflows.

4. Serialization: If you later add SAVESTATE/LOADSTATE methods, it'll integrate nicely with session recall.

Do you have a repository or plan to share the source (.prg/.ch)? The community would definitely benefit from a drop-in TKnob.prg — especially since it's pure FiveWin with no C++ dependency.

Let me know if you hit any tricky rendering edges (anti-aliasing on small sizes, high-DPI scaling, transparency over themed dialogs) — happy to help troubleshoot.
